Glimakra limakra BuildUp Pods Meeting
BuildUp PodS Meeting
BUILDUP PODS MEETING
Design - Kauppi & Kauppi
BuildUp Meeting Pods & Pavilions is a collection of large-scale, acoustic meeting rooms. A design characterized by openness, functionality, and accessibility – with a mission to create inviting meeting places that also divides and defines large interiors.
The fabric covered wall elements have an equally good sound absorption on insides and outsides, which means that the meeting rooms also serve as an effective acoustic solution for the greater interior surrounding the pods. The walls acoustic task is to reduce reverberation time, to achieve pleasant sound atmospheres.
The pods have generous entrances without thresholds that closes with curtains. To enable dynamic and creative meetings, the concepts pods and pavilion are equipped with several details, such as white board, monitor bracket, LED light-strips, power outlets and hidden cable routing. All units have a self-supporting construction, which is quick and easy to build and install.
information
UPHOLSTERY
Furniture nailed with fabric on both sides. See Product sheet Fabric and Piping.pdf for our standard fabrics
CARPET
Ogeborg Foris/Essential 1031 - 8J82 Curved write board and wall mount for TV.
BRAND
Glimakra
COLLECTION
BuildUp
CEILING BEAMS
Finger-jointed pine, 30 x 138 mm, 10% white. 100% recyclable materials
CEILING BEAMS
Finger-jointed pine, 30 x 138 mm, 10% white. 100% recyclable materials
CERTIFICATES
Möbelfakta: The product meets the requirements for environment and responsible supply chains defined by Möbelfakta.Glimakra of Sweden AB is certified according to ISO 9001:2015 and ISO 14001:2015.
FRAME STRAIGHT SCREENS
2 x 35 mm sound absorbing polyether (Oeko-Tex) glued on both sides of an 8 mm sound reducing MDF board with an 80 mm solid wooden frame.
WIDTH
Straight and curved upholstered screens with a width of 1000 mm or a radius of 1780 mm, 30°.
HEIGHT
2350 mm (screen incl. plinth) + adjustable feet Plinth with adjustable feet: black metal, height 100 mm.
SPECIFICATION TEXT

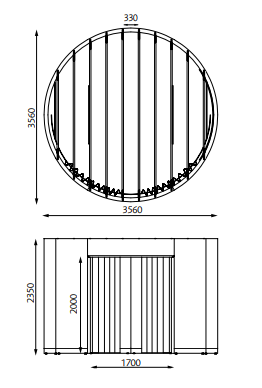

E.g: BuildUp Pod R4 | Meeting. Diameter: 3560 mm, height: 2350 mm (screen incl. plinth).
MOUNTING WRITE BOARD
Suspension with aluminium strip that is screwed with wooden screws in the frames of the curved screens.
FRAME CURVED SCREENS
75 mm recycled polyether from own production inside two sheets of perforated masonite and an 80 mm solid wooden frame.
MOUNTING
All pods have a completely self-supporting construction, which means that no floor, wall or ceiling attachments are necessary. Adjustment feet are included to compensate for uneven floors. The Pods are easy to build and move if a new location is desired. The screens are connected with hidden special fittings. Allen key included.
The plinth is mounted on the screen upon delivery. An acoustic strip is attached under the plinth around the entire room.
Delivered on a roll. Installation, repair and maintenance of electricity to the sockets, switches and lighting may only be carried out by a qualified electrician. Wiring is done in the plinth and in integrated flex pliable conduits in the screens. Electricity for lamps and lighting is drawn on top of the ceiling beams.
