Ferco Seating Lecture Athena Seat
LECTURE ATHENA SEAT
LECTURE ATHENA SEAT

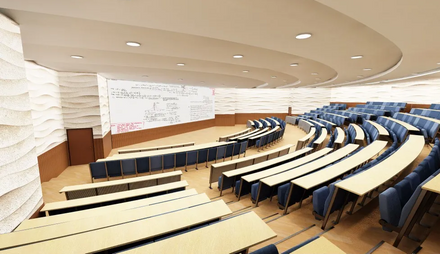

An enduring feature of university teaching rooms, the Athena is designed specifically to maximise space. The Athena provides comfortable seating for students and is available in a variety of customised finishes and layouts.
The design incorporates a fixed writing ledge with a fixed seat back and sprung tip-up seat. It is ideally suited for use on our bespoke structural tiering, with this seat a staple in many educational establishments.
Athena seat centres can be customised to provide excellent capacity and generous seat space, whilst a small closed depth can overcome issues with tight spaces.
INFORMATION
SEAT COVERS
Zip-off seat covers
MAINTENANCE
Free
TRAPS
No Finger Or Clothing Traps
DOWNLOAD
↓ Data Sheet
↓ Brochure
SUITABLE FOR
Standard form suitable for low risers, sloping or flat floors at 800 row spacing
DIMENSION
- Height(H) : 870 cm
- C : 265 cm
BACKREST
Inner panel shall be made of 7plys @ 13 mm thick plywood covered with high resilience foam, density 45 kg/m³. Upholstered with padded cover.
STANDARDS
Centre and end standards are of lateral pedestal design made of 38mm x 38mm x Thk 2.3mm square hollow section continuous welded to a 6mm thickness steel plate.
SEAT COVERS
Zip-off seat covers
TRAPS
No Finger Or Clothing Traps
METAL FINISHING
-All metal parts are coated with an epoxy finish of at least 60 microns for indoor use. -All metal parts exposed shall be stripped and cleaned with iron phosphate, hot water rinsed and then chromic acid rinsed.
FIXED TABLE
18mm thickness wooden table and wooden front panel with maica laminated and PVC black edging.
UPHOLSTERY MATERIAL
Refer to Ferco standard fabric / leatherette / leather charts.
DETAIL
Robust construction using heavy duty square hollow section steel tubes
RISERS
Option for higher risers without loss of desk space
FOAMS
Cold Cured Waterproof Moulded Foams
FIRE SAFETY
-Fire Safety -Flammability compliance with BS 5852 : 2006 Section 3 Ignition Source 0 & 1. -Flammability compliance with California Bulletin 117 and international regulations in their last issues and particularly with safety regulations.
ADVANTAGES
-Large choice of fabrics. -Comfort especially studied according to fundamental criteria of ergonomic. -Durability of the chair & after sales service for all spare parts of the model.
SEAT
- Fully upholstered seat with padded cover.
- Tip- up seat with counterweight systems and being lift-up by means of gravity. Totally silent and maintenance free.
- Inner structure made of Ø21mm x Thk. 2.6mm tubular steel frame, integrated with grid foundation in HR foams with a density of 60 kg/m3.
OPTIONS
-Row lettering type A -Row lettering type E with Aisle light -Round seat numbering -Embroidery seat numbering and logo -Flammability compliance with BS 5852 : 2006 Section 3 Ignition Source 5
LECTURE SERIES
Ferco's Lecture Series ranges from traditional lecture theatre style seating to premium collaborative learning systems; All intelligently designed to support student experience & wellbeing whilst meeting university goals of revenue generation and budget. All Lecture Series seating is designed with ergonomics, durability flexibility & ease-of-maintenance in mind
SERIES
- Wrimatic™ Riviera
- Wrimatic™ FT10 Swivel
- Wrimatic™ FT10
