Astrolighting Fuse Switched LED II

Wed Feb 10, 2021Furniture LightingChromium, Copper, Bronze, NickelBlack, White, Gold, Bronze, Chrome

Fuse Switched LED II

FUSE SWITCHED LED II

Code : 1215038

INFORMATION

BRAND

Astro Lighting

LOCATION

Interior

MAIN MATERIAL

Metal - Aluminium

LIGHT SOURCE

High Power LED

MACADAM ELLIPSE

3-Step

TILT ADJUSTABLE ANGLE (°)

90

COLOUR TEMPERATURE

2700 K

SUPPLY FREQUENCY (Hz)

50/60

MAX LAMP TYPE & WATTAGE

4.5W LED

POWER CONNECTION TYPE

Wired In

ROTATION ADJUSTABLE ANGLE (°)

330°

AVERAGE LIFESPAN (Hrs)

60,000

TILT ADJUSTABLE ANGLE (°)

90

BEAM ANGLE (°)

17.0

MAX LAMP TYPE & WATTAGE

4.2W LED

GROSS WEIGHT (KG)

0.86

DRIVER AVERAGE LIFESPAN (Hrs)

60,000

EFFICACY (lm/W)

41

CUTOUT WIDTH (MM)

50

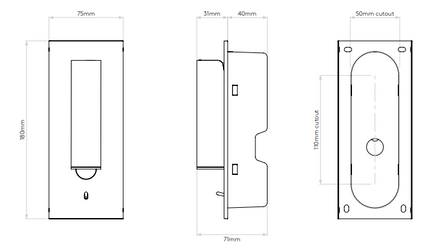

DIMENSIONS

- Height : 180 mm
- Width : 75 mm
- Depth : 71mm

CRI

90

L70 (HRS)

>60,000

LAMP REQUIRED

No

LUMEN OUTPUT

171

DOWNLOADS

↓ Data Sheet
↓ Instructions

DIRECTION ADJUSTABLE

Yes

SWITCHED

Yes

DIMMABLE

No

DRIVER REQUIRED

No

CLASS

Class I - Earthed

IP RATING

IP20

CUTOUT LENGTH (MM)

160

RECESS DEPTH (MM)

40

BATHROOM ZONE

Zone 3

DRIVER / BALLAST VOLTAGE (V)

100-240

F MARK

Suitable for mounting on flammable materials

INSTALLATION ORIENTATION

-Wall Mount - Vertical -Wall Mount - Horizontal

COLORS

-Code: 1215036,Finish: Matt White -Code: 1215039 ,Finish: Matt Nickel -Code: 1215038 ,Finish: Bronze -Code: 1215035,Finish: Polished Chrome -Code: 1215037, Finish: Matt Black
