FRAME KITCHEN OUTDOOR

Designed By Salvatore Indriolo, 2018

Frame Kitchens Outdoor come with two or three units (128 cm or 188 cm in width) and Barazza steel tops.

Fantin Frame Kitchen Outdoor

They can be fitted with a built-in stainless steel gas barbecue for extremely practical, smoke-free cooking thanks to the superior materials and hi-tech systems used.

Fantin Frame Kitchen Outdoor

Frame Kitchens and Workbenches is now available for outdoor thanks to electrophoretic painting processes that prevent rust from forming and offer outstanding protection from the elements.

Fantin Frame Kitchen Outdoor

INFORMATION

FRAME

Made of 35 x 35 mm (1.38" x 1.38") square tubes. Concealed adjustable feet.

BRAND

Fantin

PRODUCT

Frame Kitchen Outdoor

SURFACES

High Gloss

THICKNESS

6 mm (2.36")

OPTIONAL INTEGRATED SINK

500 x 400 x 219 mm (19.69" x 15.75" x 8.62") with radius 0 (for AISI 304) or radius 12 mm (for AISI 316).

OPTIONAL ACCESSORIES

Overtop sink from Barazza; appliances from Barazza and Electrolux; inside shelves made of bent sheet metal.

DOORS

Inset in the frame, made of a double layer of bent sheet metal. Door thickness: 20 mm (0.79"). Metal handles with a coating in a colour to match the doors. Soft-close dampening hinges. 95° door opening.

OPTIONAL BACKBOARDS

Optional backboards inset in the frame, made of metal.

SIDES AND BASES

Sides and bases inset in the frame, made of bent sheet metal; filled sides.

MATERIAL

Metal

USE

For indoor use

TOP

Made of AISI 304 stainless steel filler panel with a thickness of 4 mm (0.16") with satin or Vintage finish (with exclusive Barazza manual processing). Also available with integrated sinks and equipment channels.

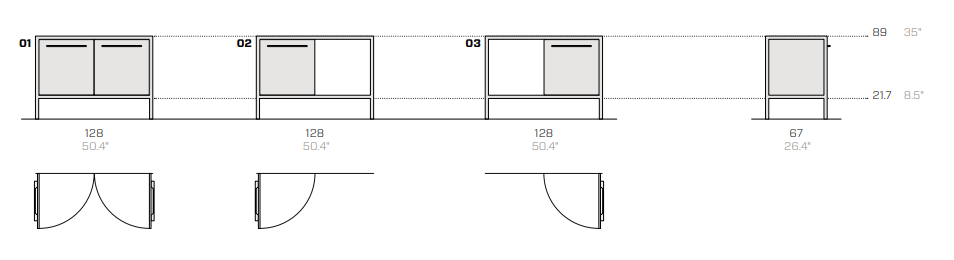

MODELS AND DIAMENSIONS

Fantin Frame Kitchen Outdoor
Fantin Frame Kitchen Outdoor
Fantin Frame Kitchen Outdoor

MATERIAL

METAL

Non-toxic powder coating for interior use, with no heavy metals. Cured in an oven at 190°C, following degreasing and phosphating. Guaranteed minimum thickness of 50 microns. Minimum resistance to salt spray of 200 hours (in accordance with the ASTM B117 standard). Some finishes are suitable for direct contact with food as required by Italian Law Decree D.M. 21/03/73 and subsequent updates. Before the coating is added, it is possible to assess whether to give the products a special treatment to make them more resistant to wear and exposure to the elements. There is a surcharge for this treatment. Requests for other RAL finishes can be considered.

AISI 304 STAINLESS STEEL

AISI 304 stainless steel Kitchen top with a thickness of 4 mm (0.16"), with Vintage (exclusive Barazza manual processing, making it quicker and easier to maintain) or satin finish.

AISI 316 STAINLESS STEEL

AISI 316 stainless steel Steel top with 6 mm (0.24") slim edge, made with an aluminium honeycomb support, available in Vintage (exclusive Barazza manual processing, making it quicker and easier to maintain) or satin finish. AISI 316 stainless steel – a material suitable for outdoor use – provides better resistance in environments where saltiness is present, particularly in seaside areas. It is also resistant to the corrosive effects of chlorine and particularly aggressive detergents.

FINISHes

METAL DESIGN & METAL ESSENTIAL

TOP AISI 304 AND AISI 316
