SEAGULL BIKE SHED
SEAGULL BIKE SHED
Design By Kristofer Hansén
Like the wings of a bird, the roof of the Seagull bike shed is made in an aerodynamic shape that appears to be in flight.The overhead structure is crafted in streamlined supporting struts attached to a central girder and bolted to round supports.
INFORMATION
BRAND
Nola
PRODUCT TYPE
Bike Shed
PRODUCTION
Made in Sweden
ENVIRONMENT
Outdoor
VARIANTS
- GL for back and side panels in 6 mm laminated glas.
- U for Seagull Bike shed without wheel-holders.
- Goggle wheel-holders, with or without frame lock, added separately. 10 pcs for a starter section, 5 pcs for an extension section. 20 pcs for a double sided starting section and 10 pcs for a double sided extension section.
DESIGNER
Kristofer Hansén
COLLECTION
Seagull
APPEND TO PRODUCT NUMBER
- N = With support posts that bolt to a concrete foundation
- M = With support posts extended 200 mm for ground-mounting
- C = Choice of non-standard colour
- R = Bicycle holder with frame lock.
- Example: Ö60-30LN/C steel in any colour choice, Ö60-30LMR/C bicycle holder with frame lock in any colour choice
MAINTENANCE
- Powdercoated Steel : Products that are powder-coated can be touch-up painted with alkyd paint.
- Hor dip galvanized steel : Hot-dip galvanized can be touch-up painted with so-called "cold galvanizing".
ASSEMBLY AND PLACEMENT
- Installation in pre-cast foundations.
- Posts for installation in pre-cast foundations.
- Surface mount : Can be bolted above ground, to the floor or to a cast-in-place foundation. Bolts not included.
VERSIONS
Available with a single or double-side roof. The polycarbonate pieces forming the roof are available in thicker sizes if required.
INDIVIDUAL DIMENSIONS
-Main post: 114 x 5 mm -Roof follower: 60 x 3.6 mm -Wheel holder tube: 76.1 x 2 mm -Roof truss: 6mm laser cut steel -Roof: 4 mm polycarbonate plastic -Roof profile: 30 mm aluminum. -Back and side panels in 6 mm laminated glas.
SHAPE
Aerodynamic
LENGTH
Four, Six And Eight Metres.

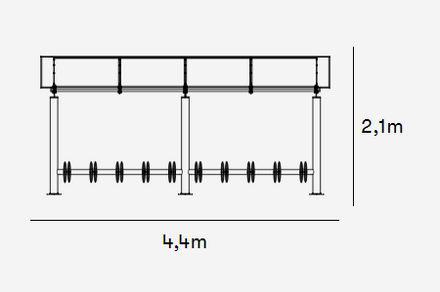

DIMENSIONS
- Height : 2.1 m
- Length : 4.4 m or 6.4 m, alternatively 8.4 m
CHARACTER

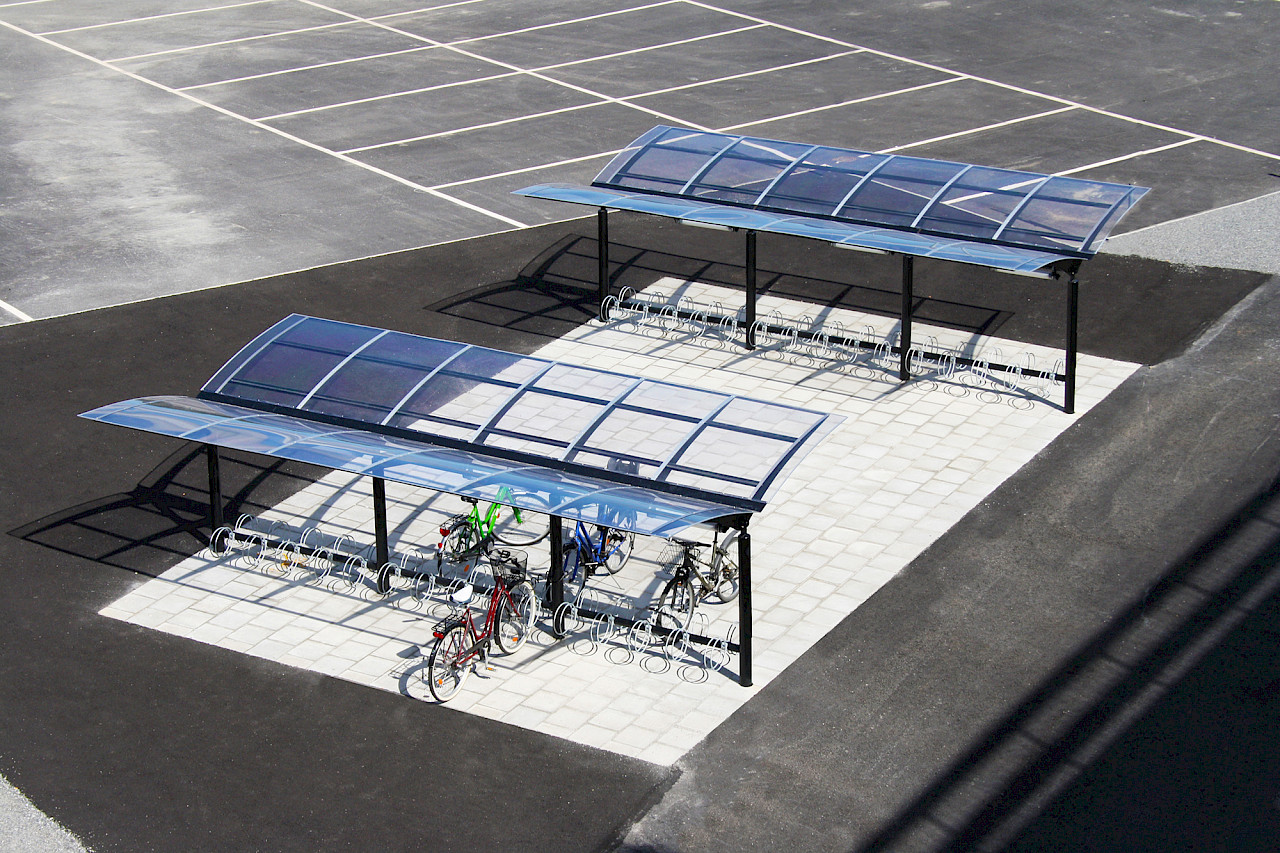

An aerodynamically-shaped bicycle shelter available as a single structure for sheltering one row of bicycles or as a double-sided design.
ROOF
The roof is available as a single structure or as a double-sided design. Seagull is available in standard lengths of four, six and eight metres.
SURFACE
Metal
STANDARD COLOR
RAL 9005
PRODUCT NUMBERS AND COMBINATIONS
- Ö60-30/START : Seagull Bike shed, single-sided, start section, without wheel-holders.
- Ö60-30/PÅBYGG : Seagull Bike shed, single-sided, extension section, without wheel-holders.
- Ö60-31/START : Seagull Bike shed, double-sided, start section, without wheel-holders.
- Ö60-31/PÅBYGG : Seagull Bike shed, double-sided, extension section, without wheel-holders.
- Ö03-49 : Goggle cykelhållare.
- Ö03-49RL : Goggle cykelhållare, med ramlås.
VERSIONS
SINGLE-SIDED VERSION LENGTH OF SECTIONS
-Length of sections: 200 cm -Depth of reinforced roof glass: 6 cm -Number of parking spaces in outer section: 4. Number of parking spaces in mid-section: 5 -C-C distance between parking spaces: 50 cm -C-C distance between poles: 200 cm -C-C distance between gable posts: 135 cm -Width of roof: 205 cm -Height of roof, back side: 160 cm -Height of roof, front side: 210 cm
DOUBLE-SIDED VERSION LENGTH OF SECTIONS
-Length of sections: 200 cm -Depth of reinforced roof glass: 6 cm -Number of parking spaces in outer section: 4. Number of parking spaces in mid-section: 5 -C-C distance between parking spaces: 43 cm -C-C distance between poles: 200 cm -C-C distance between gable posts: 135 cm -Width of roof: 360 cm -Height of roof, back side: 160 cm -Height of roof, front side: 210 cm
MATERIAL & SURFACE TREATMENTS
DETAIL
- Roof profile in aluminum.
- Glass holder in cast zinc.
- Fasteners are stainless steel.
- Black RAL 9005, gloss 20-30.
- Back and side panels in laminated glas.
- Bicycle holder in hot-dip galvanized steel.
- The roof is transparent plastic (polycarbonate).
- All steel structural components are electro-galvanized and powder-coated.
ELECTROGALVANIZED
Electrogalvanizing (also known as zinc plating) provides corrosion protection through the sacrifice of zinc ions. It is created via a zinc coating on the steel using an electric current.
STAINLESS STEEL
Stainless steel is an iron alloy with at least 10.5% chromium that often has good resistance to corrosion (rust) and other chemical attacks. A common misconception about stainless steel is that it does not rust at all; it can in fact corrode, especially in environments near the sea with high humidity.
STEEL
Nola uses high-quality steel with good strength in our products. Steel rusts if left untreated and must therefore be surface treated.
ALUMINIUM
Aluminum is a soft light metal that is silvery to gray in color. Depending on the alloy, aluminum usually has good corrosion resistance. It is common for the aluminum to be extruded into tubes or rolled into a plate in the desired material thickness.
HOT-DIP GALVANIZED
Hot-dip galvanizing provides very strong protection against corrosion. The steel is dipped into a bath of hot liquid zinc. The zinc attaches and creates a surface coating on the steel part, which is then taken out of the bath and drained of excess zinc.
POWDER COATING
Powder coating is a coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint, powder coating is usually applied electrostatically and then cured under heat or with ultraviolet light. The result is an even, hard-wearing coloured surface with the desired gloss level.
