Functionality shaped by avant-garde at the service of urban comfort. This is the genesis of Diversity, the awakening of a LED generation where visual subtlety drives integration into a wide variety of outdoor applications.

information

BRAND

Setga

PRODUCT TYPE

Evolutionary Lightness

PRODUCTION

Made in Netherland

USE

Outdoor

WATTAGE

159 Lm/w

CERTIFICATION

CLASE II

COLLECTION

Divercity

IP RATING

IP 66

THERMAL MANAGEMENT SYSTEM

The LAFS® (Lateral Air Flow System) side cooling system generates an internal convection process to reduce the temperature of thermal critical areas, where the luminaire body comes into direct contact with the PCB. Finally, the use of a graphite thermal pad in the area between the PCB and dissipation body contributes to thermal contact optimization between both elements, eliminating air gaps and improving the dissipation process in the early stages.

Setga Diversity OutDoor Lights

HOREA V.D. UHT

+100.000

TQ

25 C

MATERIAL

Aluminium

ALLOY

Copper

TECHNOLOGY TO PREVENT EXTERNAL DIRT ACCUMULATION

According to the US Energy Agency, relief on the upper surface of the fixture severely hinders the dissipation process that takes place by convection, becoming a critical element for performance and life.To overcome this challenge and to enhance the natural self-cleaning process, SETGA has equipped the Diversity projector with completely uniform surfaced special pieces, installed over the dissipating fins, thus preventing dirt accumulation, and the ensuing obstruction and inefficiency of the thermal dissipation system. At the same time those pieces allow the natural flow of dissipated heat by the fins through both open sides.

CIERRE DE VIDRIO O PMMA-HI

1K08 - 1K10

CLEANTECH

Technology To Prevent External Dirt Accumulation

Setga Diversity OutDoor Lights
Setga Diversity OutDoor Lights

DESCRIPTIVE VIEWS

HEAT DISSIPATION SYSTEM

The dissipation system of the Diversity projector has a very high dissipation and cooling capacity. This responds to several reasons, its high dissipative mass and its high exposed surface due to its hollow lattice design.It is made up of 4 identical modular pieces and assembled in a solidary and permanent way, forming a rigid dissipative assembly of injected aluminum EN-AC-44100 (L-2520).The complete elimination of air gaps between the PCB and the heatsink body favors thermal contact between both elements. To achieve this, the dissipating body is initially machined and ground, thus ensuring an optimum level of flatness and surface roughness. Subsequently, the previously mentioned graphite "thermal pad" is incorporated into said meeting area in order to achieve an intimate level of union.

DIMENSIONS AND INSTALLATION

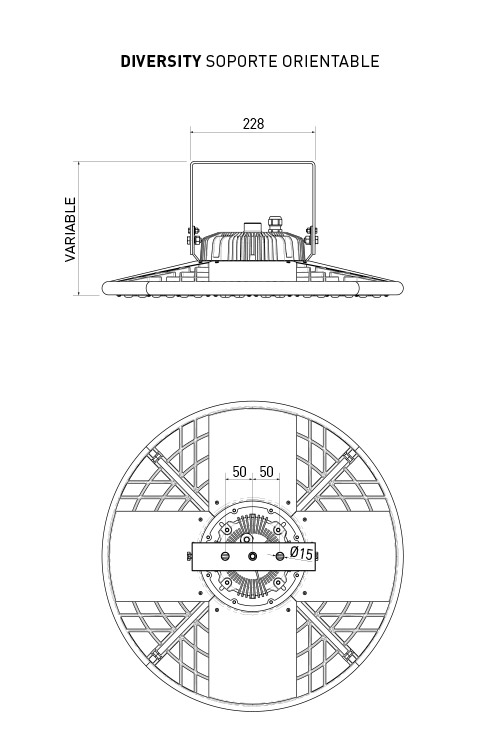

The Diversity luminaire has an outside diameter of 550mm and a variable height depending on the driver installed.This product can be anchored in various ways, it can be provided with a hanging ringbolt or with an adjustable bracket of various sizes.It exists in 48 and 96 LED versions and with different power and lens regulations for even the most demanding applications such as outdoor sports fields.Its installation is done with M12 screws or hanging ringbolts.
