TORRE OUTDOOR LIGHTING
TORRE OUTDOOR LIGHTING
This exterior lighting is modest in size, but has magnificent efficiency. The TORRE is ideal for lighting footpaths and roads, at a minimum of light pollution.
The armature is designed such that you do not look into the light, but do benefit from maximum light output. A matter of taste: choose a metal coloured or black LED module. The latter is somewhat less glittering and less striking.
INFORMATION
BRAND
Timberlab
PRODUCT TYPE
Outdoor Lighting
HEAD SIZE
- 10cm x 10cm
- 15cm x 15cm
LIGHT COLOR
Available in 2.700, 4.000K and amber (593 nm).
BEAM ANGLE
The LED module has a beam angle of 120 degrees
COLLECTION
Torre
PRODUCTION
Made in Netherlands
LIGHTING DATA
Lighting data available on request.

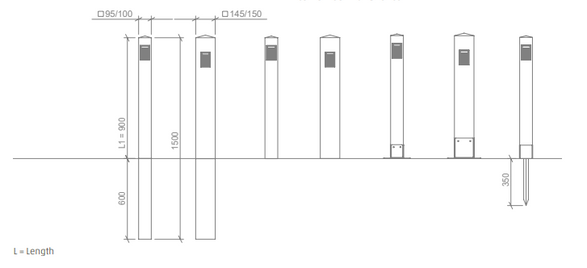

TECHNICAL DRAWING
IP CLASS
IP54
COLOR FIXTURE
Gray RAL 7016
WOOD TYPE
Larch/Douglas (on base support only), Oak, Rustic Chestnut or Accoya
LUMEN OUTPUT PER LED MODULE
- 2.700K = 121 lm
- 4.000K = 153 lm
- Amber = 47 lm
SOLID SUSTAINABLE WOOD
For each wood species applies that the wood ages over time and the armature becomes part of the natural environment. For a sleek, stylish appearance of garden or park.
ACCESSORIES
The TORRE is available with or without post holder. See chapter ‘post holders’ for all technical data on the different post holders.
CONNECTION
Possible with cable or without cable (1 mtr 3x 1.5 mm2). A 32mm hole in the fixture as standard for easy passage for your ground cable.
FEATURES
- Easy to connect
- Slim armature with unique, indirect lighting
- Minimum light pollution, maximum light output
- Choice from 95 mm, 150 mm or 200 mm wide
- When ordering 5 units or more, own dimensioning possible!
QUALITY MARK
FSC or PEFC
POWER PER LED MODULE
3.6 Watt
EASY TO CONNECT
Installation of the TORRE exterior lighting is easy and can done by every installer. The posts are suitable for all soil types. Don’t you have enough depth or do you want to position the TORRE on, for instance a veranda, then choose the design with a baseplate.
LIGHT COLOR BOLLARDS
- 2.200K
- 4.000K
- Amber
- 2.700K (standard)
LIFESPAN
Every type of wood has its own durability rating. More information about this is available under “Types of wood” & “Sustainability”. The LED module has an expected life of 100,000 hours
VARIATIONS
At Timberlab, every fixture is carefully produced for you. In addition to the standard options, we are happy to create variations for your specific application. For example, the TORRE lends is ideal combined with a fence.
ENVIRONMENT
Outdoor
THICKNESS
100 or 150 mm
WOOD SPECIES
- Oak
- Larch
- Accoya
- Chestnut rustic
LIGHTING
Functional
VOLTAGE
230 VAC or 12-24 V AC/DC
COLORS
- Amber
- Warm White
- Cool White
TECHNICAL DATA
| DATA | WEIGH | CO2 STORAGE | WEIGH | CO2 STORAGE | WEIGH | CO2 STORAGE | WEIGH | CO2 STORAGE | WEIGH | CO2 STORAGE | WEIGH | CO2 STORAGE | WEIGH | CO2 STORAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Larch/Douglas | - | - | - | - | 5 kg | 8 kg | 11 kg | 18 kg | 8 kg | 8 kg | 15 kg | 18 kg | 7 k | 8 kg |
| Chestnut | 9 kg | 14 kg | 20 kg | 33 kg | 5 kg | 8 kg | 11 kg | 19 kg | 8 kg | 8 kg | 15 kg | 19 kg | 7 k | 8 kg |
| Oak | 12 kg | 18 kg | 26 kg | 41 kg | 6 kg | 10 kg | 14 kg | 23 kg | 9 kg | 10 kg | 18 kg | 23 kg | 8 kg | 10 kg |
| Accoya | 9 kg | 14 kg | 19 kg | 30 kg | 5 kg | 8 kg | 11 kg | 17 kg | 8 kg | 8 kg | 15 kg | 17 kg | 7 k | 8 kg |
LED MODULES
| TECHNICAL DATA | BL WALL MODULE 2.700K | TBL WALL MODULE 4.000K | TBL WALL MODULE AMBER 593 NM |
|---|---|---|---|
| Voltage (optional) | 230 VAC 12-24V AC/DC | 230 VAC 12-24V AC/DC | 230 VAC 12-24V AC/DC |
| Power | 3.6W* | 3.6W* | 3.2W* |
| Power factor | 0.39* | 0.39* | 0.37* |
| Lumen outpu | 74 lm* | 103 lm* | 32 lm* |
| Efficiency | 20 lm/W* | 29 lm/W* | 10 lm/W* |
| Colour temp. | Warm White 2700K 2683K* | Cool White 4000K 3981K* | AMBER x=0.5853 y=0.4043* |
| CRI | 84* | 72* | n.a. |
| Dimmable | on request | on request | on request |
| Label | B | B | B |
| IP grade | IP 54 | IP 54 | IP 54 |
| Beam angle | 105x50* | 105x50* | 105x50 |
| Number of LEDs | 2 | 2 | 2 |
| Temperature range in operation | -20...+50°C | -20...+50°C | -20...+50°C |
| Lifespan | 100.000 h | 100.000 h | 100.000 h |
