Nola Elbin Litterbin
Elbin LitterbiN
ELBIN LITTERBIN
Designed by Sture & Olle Anderson

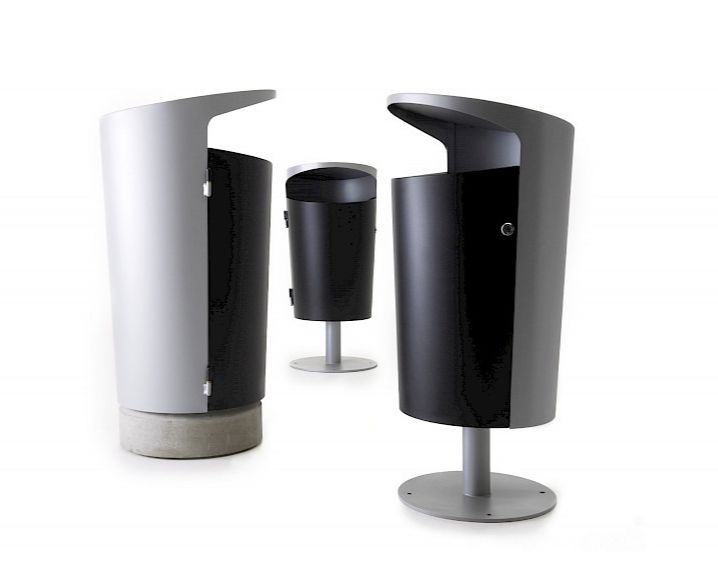

Elbin’s wide opening makes it easy to place rubbish inside.
It empties almost as easily; as the door unlocks and pivots open, the metal ring holding the waste bag slides outward to be pulled free in one easy movement. Elbin can be wall-mounted or attached to the ground, and ordered in three different sizes. A version with an integrated ashtray is also available.
DESIGNERS
ANDREAS STURE
Andreas Sture is a designer at White Architecture where he participates in the process of developing and designing sustainable products.
OLLE ANDERSON
Olle Anderson started his career as civil engineer and started his career at White Architecture where he is partner today. Anderson has throughout the years worked with interior architecture and furniture design and in 1975 he founded the interior design departement at White. Throughout his career Anderson has received praise and acknowledgement for his work as a professor, honorary doctor and designer across the world, and won the award “Excellent Swedish design” a total of 19 times.
INFORMATION
VERSIONS
Made in three different sizes: 50 liters, 80 liters and 120 liters. The base is made in cast concrete. Base in terrazzo concrete for 120 liters. Different attachment options are available.
BRAND
Nola
PRODUCT TYPE
Litterbin
COLLECTION
Frame
PRODUCTION
Made in Sweden
STANDARD COLORS
- RAL 6009
- RAL 3001
- Gris 2150 Sablé
- Gris 2900 Sablé
- Noir 2200 Sablé
CHARACTER
A versatile anodised aluminium outdoor litterbin that is easy to empty and maintain.
TECHNICAL DRAWING
USE
Outdoor
MOUNTING
Surface
DIMENSIONS (BASKET 50)
- Diameter : 41 cm
- Height : 70 cm
- Overall height including plinth : 94 cm
DIMENSIONS (BASKET 80)
- Diameter : 47 cm
- Height : 80 cm
- Overall height including plinth : 104 cm
DIMENSIONS (BASKET 50)
- Diameter : 55 cm
- Height : 97 cm
- Overall height including plinth : 106 cm
DIMENSIONS (CONCRETE PLINTH 50)
- Height : 20 cm
- Diameter : 40 cm
AVAILABLE COLORS
5
DESIGNERS
Andreas Sture & Olle Anderson
DIMENSIONS (CONCRETE PLINTH 80)
- Height : 20 cm
- Diameter : 45 cm
DIMENSIONS (CONCRETE PLINTH 120)
- Height : 12 cm
- Diameter : 44 cm
DIMENSIONS (STEEL STAND 50/80)
- Diameter : 32 cm
- Height : 23.5 (63.5) cm
WEIGHT (STEEL STAND)
- STEEL STAND 50 : 9 kg
- STEEL STAND 80 : 9.5 kg
WEIGHT (BASKET)
- Basket 50 : 30 kg
- Basket 80 : 35 kg
- Basket 120 : 39 kg
ASSEMBLY AND PLACEMENT
-In-ground : Cast in ground. -Freestanding : Freestanding product that is placed directly on the ground. -Mounted to wall : Bolted in place to stand/wall bracket. Bolts for walls not included. -Surface mount : Can be bolted above ground, to the floor or to a cast-in-place foundation. Bolts not included.
WEIGHT (CONCRETE PLINTH)
- Basket 50 : 55 kg
- Basket 80 : 70 kg
- Basket 120 : 45 kg
TERRAZZO CONCRETE
Products made of polished terrazzo concrete are washed with soapy water to remove limescale deposits.
POWDERCOATED STEEL
Products that are electro-galvanized and powder-coated can be touch-up painted with alkyd paint.
CONCRETE
Concrete is cement mixed with crushed stone or aggregate. The material is very strong in compression but fragile in tension. To compensate for this concrete can be reinforced, often with steel.
PRODUCT NUMBERS AND COMBINATIONS
- Ö30-60/50 : Elbin litter bin 50 liters
- Ö30-60/80 : Elbin litter bin 80 liters
- Ö30-60/120 : Elbin litter bin 120 liters
- B11-06 : Startup cost for powder coating steel in a color other th standard. Choose a RAL colour.
DOWNLOADS
↓ Images
↓ Print product sheet
↓ Open in BIM object
↓ Assembly instructions
↓ General Maintenance Advice
APPEND TO PRODUCT NUMBER
- R for color RAL 3001 red fine structure, the whole bin is red.
- GR for color RAL 6009 dark green, the whole bin is green.
- C for any color other than standard, at additional cost.
- G for gray Gris 2900 on door, body in light gray Gris 2150 Sablé.
- S for black Noir 2200 Sablé on door, body in light gray Gris 2150 Sablé.
INSTALLATION TYPE
-M for in-ground.-N for surface mount.-V for mounted to wall.
-Ground-mounted (Only 50 and 80 L).-Attachable (Only 50 and 80 L).-Wall-mounted (Only 50 L).
-F for plinth in gray concrete.
-FT for plinth in terrazzo. (Only 120 L).
VARIANTS
-BRK for Pledge Collectors -KR for scarecrow 50 L (Set of 8 chains)-KS for scarecrow 80 L (Set of 8 chains) -K for -scarecrow 120 L (Set of 8 chains)-Available with or without ashtray, state this when ordering.
INDIVIDUAL DIMENSIONS
- Pledge collector: Dimensions: Ø 89 mm, height: 60 cm.
- Diam cigarette collector 20 cm, 2 mm stainless steel.
- Diam cigarette collector 0.8 liters are below the top of the trash.
MATERIAL
STEEL
Nola uses high-quality steel with good strength in our products. Steel rusts if left untreated and must therefore be surface treated.
ELECTROGALVANIZED
Electrogalvanizing (also known as zinc plating) provides corrosion protection through the sacrifice of zinc ions. It is created via a zinc coating on the steel using an electric current.
CONCRETE
Concrete is cement mixed with crushed stone or aggregate. The material is very strong in compression but fragile in tension. To compensate for this concrete can be reinforced, often with steel.
POWDER COATING
Powder coating is a coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint, powder coating is usually applied electrostatically and then cured under heat or with ultraviolet light. The result is an even, hard-wearing coloured surface with the desired gloss level.
MATERIAL AND SURFACE TREATMENTS
Made of galvanized, yellow chromated and powder coated steel. Concrete base in gray concrete. Base i terrazzo concrete for 120 l. For Elbin 120 liters, 125 liters of plastic bag are used. The pledge holder is galvanized, yellow chromated and powder coated steel pipe Ø 89 x 2 mm.
TERRAZZO
Terrazzo is an internationally used designation for a high-quality concrete that is used as a surface material. Terrazzo is a natural material consisting of aggregate (i.e. stone material, usually marble) mixed with cement. Terazzo has a high wear resistance.
