Timberlab EYE Light
EYE LIGHT
EYE LIGHT

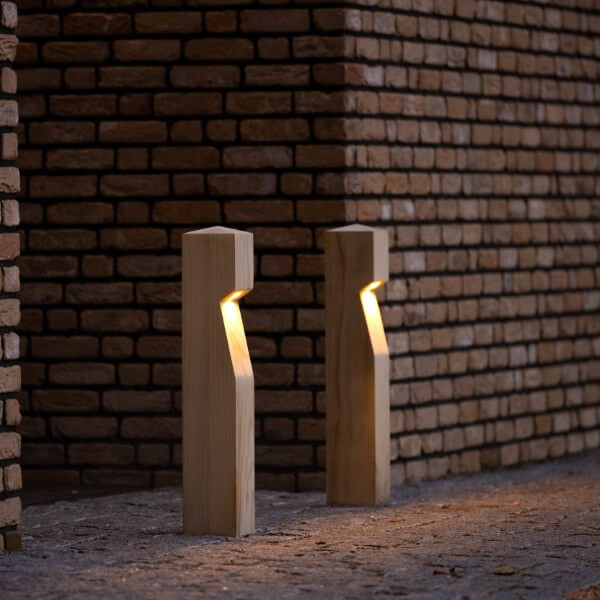

The Timberlab “EYE” is one of the most favourite garden lighting products of the TimberLab assortment.
Due to the contemporary and slim design the bollard is hardly noticeable during day time.
When the evening sets in, the EYE shows its best side. With exactly enough light to illuminate road or footpath.
INFORMATION
LIGHT COLOUR
- 2.200
- 2.700k
- 4.000k
- Amber Led
BRAND
Timberlab
PRODUCT TYPE
Light
THICKNESS
100 or 150 mm
VOLTAGE
230 VAC or 12-24 V AC/DC
USE
Outdoor
IP CLASS
IP54
PATH
Ideal for the illumination of paths without causing light pollution
BEAM ANGLE
The LED module has a beam angle of 155x65 degrees.
LUMEN OUTPUT
- 109 lm
- 121 lm
- 153 lm
- 47 lm
POWER PER LED MODULE
2.4 Watt
QUALITY MARK
FSC or PEFC
LIFESPAN
Every type of wood has its own. Durability rating: More information about this can be found under “Types of wood” & “Durability”. The LED module has an expected lifespan of 100,000 hours.
LABEL
A+
TEMPERATURE RANGE
-20...+50°C
CONNECTION
Possible with cable or without cable (1 mtr 3x 1.5 mm2). A 32 mm hole in the fixture as standard for easy passage for your ground cable.
CRI
84
DOWNLOAD
↓ Data Sheet
INSTALLATION
Installation of the EYE is easy and can done by any installer. The posts are suitable for all soil types. Don’t you have enough depth or do you want to position the EYE on a veranda or balcony, then choose the design with baseplate.
VARIATIONS
At Timberlab, every fixture is carefully produced for you. In addition to the standard options, we are happy to help create variations for your application. Think of a water point, slightly to the rear or in combination with a fence.
SOLID SUSTAINABLE WOOD
The EYE is available in Larch, Chestnut, Oak or Accoya. For each applies that the wood ages over time and the bollard becomes part of the natural environment. For an authentic, stylish appearance of garden or park.
TECHNICAL DRAWING
