L&l Luce&light Srl

Lucelight Rio Sub Pools and Fountains Light

RIO SUB POOLS AND FOUNTAINS LIGHT

Lucelight Rio Sub  Pools and Fountains Light

RIO SUB POOLS AND FOUNTAINS LIGHT

Recessed lines of light in pools and fountains

Linear profile with diffuse light for use in swimming pools and fountains up to a depth of 10 m.

INFORMATION

INSTALLATION

Installation in swimming pools and fountains at great depths: up to 10 m

BRAND

Lucelight

PRODUCT TYPE

Light

COLLECTION

Rio

VERSION

Outdoor version : Rio

MOUNTING

recessed (wall, ground) max depth 10 m

POWER SUPPLY UNIT

Not included

POWER CABLES

Includes 5 m neoprene cable H05RN-F 2x1.00 Ø6.8 mm RGB: includes 5 m FEP+PCP cable (equivalent to H05RN-F) 4x0.50 Ø6.3 mm

DELIVERED LUMEN OUTPUT

140 lm (2800K)/290 lm (2800K)

NO. AND TYPE OF LED

- 96/48 low-power SMD LEDs
- 3-step MacAdam
- RGB: full-colour SDM LEDs

MATERIAL

- Body in PMMA
- Screen in opal PMMA
- End caps in AISI 316L stainless steel

LUMEN OUTPUT AT SOURCE

1056 lm (2800K)/672 lm (2800K)

LENGHT

Available in two lengths, with either white or RGB light.

 POWER

- Rio Sub 1.1 : 6W; RGB: 8,5W
- Rio Sub 1.2 : 12W; RGB: 17W
- Rio Sub 2.1 : 10W; RGB: 8,5W
- Rio Sub 2.2 : 19W; RGB: 17W

Lucelight Rio Sub  Pools and Fountains Light

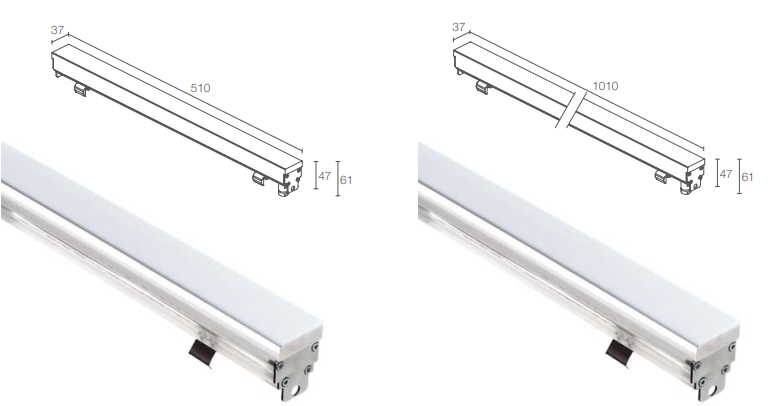

 DIMENSIONS 1

- RIO SUB 1.1
- RIO SUB 1.2

Lucelight Rio Sub  Pools and Fountains Light

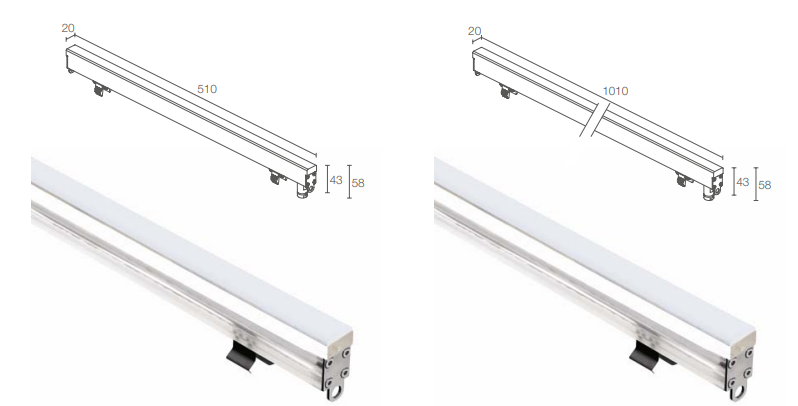

 DIMENSIONS 2

- RIO SUB 2.1
- RIO SUB 2.2

Lucelight Rio Sub  Pools and Fountains Light
