Lucelight Rondò 3.1 Step Lights

RONDÒ 3.1 STEP LIGHTS

Lucelight Rondò 3.1 Step Lights

RONDÒ 3.1 STEP LIGHTS

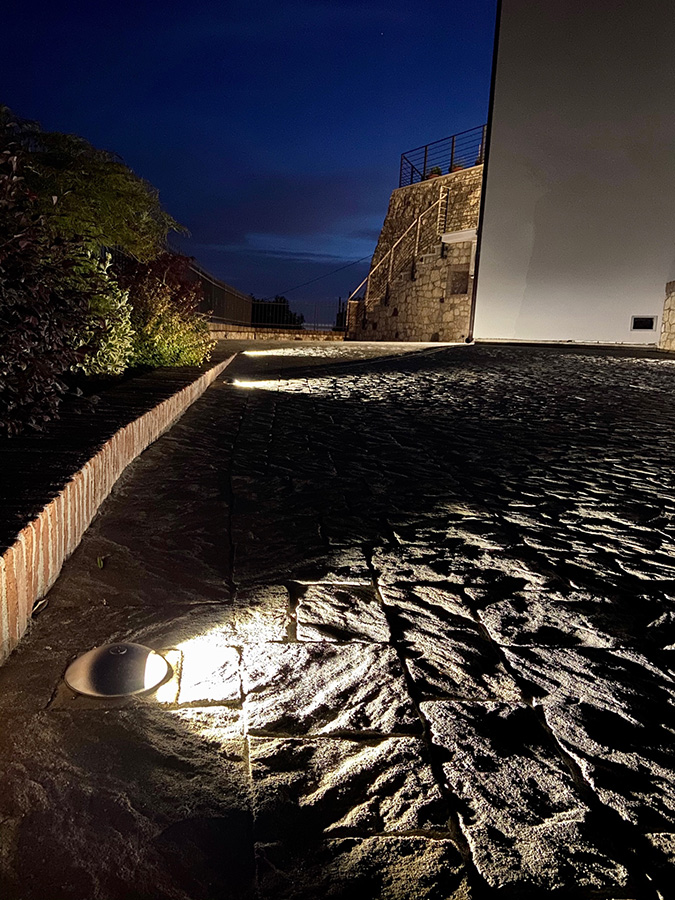

Step light for outdoor applications - 3w 24vdc/230vac - single beam - ø160 mm - drive-over

Lucelight Rondò 3.1 Step Lights

INFORMATION

BRAND

Lucelight

PRODUCT TYPE

Step Light Light

COLLECTION

Rondò

APPLICATIONS

Outdoor

LED COLOURS

- 2700K
- 3000K
- 4000K

POWER SUPPLY UNIT

- 230Vac : Built-in power supply unit,
-24Vdc : Power supply unit not included

Lucelight Rondò 3.1 Step Lights

WEIGHT

1,98kg

POWER CONSUMPTION

3W

LUMEN OUTPUT AT SOURCE

185 lm (3000K)

POWER SUPPLY

-24Vdc -230Vac

DELIVERED LUMEN OUTPUT

90 lm (3000K, radial optics)

MOUNTING

Recessed (Floor)

Lucelight Rondò 3.1 Step Lights

POWER CABLES

- 230Vac version : Includes 1,5 m neoprene cable H07RN-F 3x1,0 Ø8,7 mm,
- 24Vdc version : Includes 1,5 m neoprene cable H05RN-F 2x0,35/0,75 Ø6,3 mm

OPTICS

10°, radial

CRI COLOUR RENDERING INDEX

80

TECHNICAL DRAWING

Lucelight Rondò 3.1 Step Lights
Lucelight Rondò 3.1 Step Lights
Lucelight Rondò 3.1 Step Lights

BODY MATERIAL

Body in aisi 316l stainless steel

INGRESS PROTECTION

IP67

SCREEN MATERIAL

Screen in rilsan® clear

IMPACT RESISTANCE

IK08

FINISHES

Lucelight Rondò 3.1 Step Lights
Anthracite
Lucelight Rondò 3.1 Step Lights
Cor-ten
Lucelight Rondò 3.1 Step Lights
Stainless Steel

FEATURES

- CE mark for the European Union
- UKCA mark for Great Britain
- CB
- BIS R-41105201
- Lighting fixture with led technology
- Appliance Class I
- Drive-over Fixture
- Intelligent Protection System
- Protective Impedance Device
- RAL finish on request
- Maximum Device Temperature50°c
- Energy efficiency class of the light source

CONTROL

Casambi Control

UMBER AND TYPE OF LED

1 power LED, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C)

INSTALLATION

Step light for outdoor applications, single beam
