Nola Centrum Litterbin
CENTRUM LITTERBIN
CENTRUM LITTERBIN

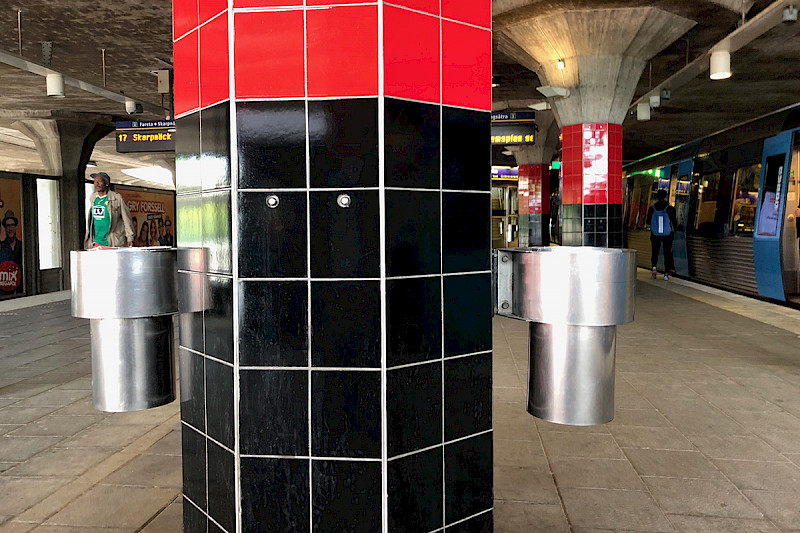

As its name suggests, Centrum is an efficient litterbin/ashtray combination intended to stand in the centre. Attached to a freestanding base, the litterbin can be placed directly in the flow of human traffic. Whether placed in the midst of things or mounted discreetly to a wall, the litterbin’s gleaming metal rim is easy to spot from a distance. Centrum provides separate fireproof receptacles for rubbish and cigarette ends.
INFORMATION
BRAND
Nola
PRODUCTION
Made in Sweden
WEIGHT
11.8 kg/13 kg/7.8 kg
PRODUCT TYPE
Waste Bin
USE
Outdoor
ASSEMBLY AND PLACEMENT
- Mounted to wall
- Fully assembled.
- Bolted in place to stand/wall bracket.
- Bolts for walls not included.
- Wall-mounted or attached to a free-standing post.
APPEND TO PRODUCT NUMBER INSTALLATION TYPE
V for mounted to wall.
MAINTENANCE
Powdercoated steel Products that are electro-galvanized and powder-coated can be touch-up painted with alkyd paint.
CHARACTER
Centrum is an efficient litterbin/ashtray combination that can be fitted to a free-standing base or mounted to a wall.
COLLECTION
Otto
SYMBOL
Graphic
VERSIONS
The rectangular litterbin is made in two sizes: 21 l or 45 l. The round litterbin is made in one size: 18 litres. The ashtray is made with a lid or a removable metal grate which lifts easily to remove cigarette ends.
PRODUCT NUMBERS AND COMBINATIONS
LD89050 - Rektangulär papperskorg. Volym 45 liter.
LD88910 - Sopsäckshållare för Ö16-45
LD89020 - Rektangulär papperskorg. Volym 21 liter.
LD88960 - Stativ. Fristående/fastsättningsbart.
LD88950 - Stativ markfast.
LD89010 - Centrum askkopp med fimpgaller.
LD89013 - Centrum askkopp med lock.
LD88920 - Fällbart Lock för innerbehållare till Ö 16-42 45
LD88850 - Insatsburk till Ö16-44
LD88853 - Bygellock för Ö16-42
LD88910 - Sopsäckshållare för Ö16-45
LD88860 - Fällbart Lock för innerbehållare till Ö 16-44
LD88870 - Regnskydd till city Ö16-42 svart
LD88880 - Stolpfästen 48/60 mm
LD88930 - Lock för (Ö16-45)
LD88940 - Lock i rostfritt stål till Ö16-42,45 l
LD89070 - Regnskydd till Ö16-42
U19-38 - Startkostnad valfri färg.
DIMENSIONS
- LD89050 Rectangular litterbin: Width: 43 cm. Height: 54 cm. Volume: 45 L.
- LD89010 Ashtray with smoking grate: Width: 15 cm. Height: 25 cm. Depth: 12 cm.
- LD89013 Ashtray with lid: Width: 15 cm. Height: 25 cm. Depth: 12 cm.
- Round version (Ö16-45): Height: 44.5 cm Diameter: 32 cm Volume: 18 L.
- LD88950 Stand fixed to the ground. Height above ground: 80 cm. Cast 40 cm into the ground.
-LD88960 Stand: Temporary/attachable. Height: 80 cm. Footplate dimensions: 40 x 50 cm. Holes for fixing to the ground on request.
- LD89020 Rectangular litterbin: Width: 36.5 cm. Height: 42.5 cm. Depth: 34.6 cm. Internal dimensions: Width: 25.6 cm. Height: 36 cm. Depth: 22.7 cm. Volume: 21 L.
MATERIALS
STAINLESS STEEL
Stainless steel is an iron alloy with at least 10.5% chromium that often has good resistance to corrosion (rust) and other chemical attacks. A common misconception about stainless steel is that it does not rust at all; it can in fact corrode, especially in environments near the sea with high humidity.
STEEL
Nola uses high-quality steel with good strength in our products. Steel rusts if left untreated and must therefore be surface treated. This is done through electro-galvanization and powder coating, hot-dip galvanizing, or application of a zinc powder primer.
ASHTRAY
The inner container is made from 1 mm black-painted, zinc-electroplated sheet steel, The outer casing is made from stainless steel sheet with a depth of 1.25 mm.
RECTANGULAR VERSION
The inner container is made from zinc-electroplated sheet steel with a thickness of 1.25 mm or 1.5 mm. The outer casing is made from 1.25 mm stainless steel sheet.
ROUND VERSION
The inner container is made from stainless steel sheet with a depth of 1.25 mm. The outer casing is made from stainless steel sheet with a depth of 2.5 mm. The frame is zinc-electroplated and powder-coated in standard colour black RAL.
POWDER COATING
Powder coating is a coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint, powder coating is usually applied electrostatically and then cured under heat or with ultraviolet light. The result is an even, hard-wearing coloured surface with the desired gloss level.
ELECTROGALVANIZED
Electrogalvanizing (also known as zinc plating) provides corrosion protection through the sacrifice of zinc ions. It is created via a zinc coating on the steel using an electric current.
HOT-DIP GALVANIZED
Hot-dip galvanizing provides very strong protection against corrosion. The steel is dipped into a bath of hot liquid zinc. The zinc attaches and creates a surface coating on the steel part, which is then taken out of the bath and drained of excess zinc.
