Lumteam Chasse-Roue LED Spotlight
CHASSE-ROUE LED SPOTLIGHT
CHASSE-ROUE LED SPOTLIGHT

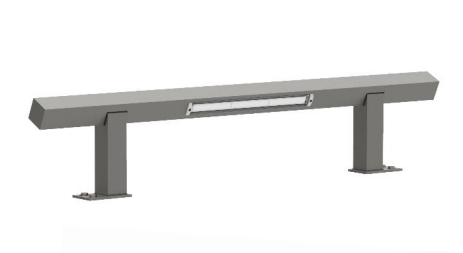

Linear weel stopper (PMR norms)
Linear steel kerb LED, round or square, PMR norms lighting. PMMA glass. Choice of paint finishes or hot galvanizing. Power supply to be ordered separately.
INFORMATION
PRODUCT FLUX
387lm ( @ 3000K-Asy_260)
BRAND
Lumteam
PRODUCT TYPE
Light
POWER SUPPLY
240 VAC
PRODUCTION
Made in France
FIXING
Ground
TYPE OF LIGHTING
LED
ACIER
COLOR T°
- 2700K
- 3000K
- 4000K
MATERIAL
-Body in Steel
-PMMA glass
-On ground
WEIGHT
5.30 Kg
DIMENSION
1000mm x 202mm / 1000mm x 197mm
PROTECTION
IP54
EFFICACY
86lm/W
POWER
4.5 W
CONTROL
On-Off / 1-10V / DALI (selon driver / with adequate driver
NORMS
NF-EN 60529/60598-1/60598-2-1/60598-2-3/60598-2-5/62471/
HIGH PRESSURE
No
ADJUSTABLE
No
OPTIC
Asymmetrical
CRI
80+ / 90+
ADJUST
Yes
LED SOURCE
9 LED
CABLES
2x1ml standard - (2x0.75mm² noir)
CABLE
1ml standard - (2x0.5mm² noir)
WARRANTY
2 years standard
USE
Outdoor

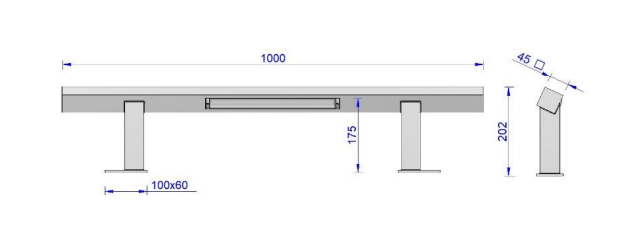

TECHNICAL DRAWINGS
