Lamm Conpasso Chairs
CONPASSO CHAIRS
CONPASSO CHAIRS
Designed by Lucci e Orlandini
FEATURES
ERGONOMICS AND COMFORT
A complete programme of community seats, capable of satisfying specific function needs for a variety of environments. The original self-regulating backrest mechanism ensures high levels of comfort and reliability.
DESIGN AND STRUCTURE
The innovative leaf spring structure also gives it added value on a formal level, providing a controlled micro-elasticity that allows flexible distribution of stress and guarantees a softer impact with the seat and backrest.
FUNCTIONAL PRACTICALITY
The stacked chairs can be moved using a robust and easy-to-handle wheeled dolly. The version with tip-up seat, designed to be stacked horizontally, is fitted with one-way castors on the front legs, to facilitate movement.
VERSIONS
Seating system offered in the fixed or tip-up version with manual or automatic spring mechanism (on request). Seat and backrest in beech plywood or with polyurethane foam padding and fabric covering, in a wide range of colours. It is also manufactured with the same characteristics in the version on extra-strong steel beam, equipped with fixed or tilting 2, 3 or 4 place seats.
INFORMATION
TYPOLOGIES
-Multipurpose seats, with fixed or tip-up seat, equipped with a self-adjustment mechanism for backrest inclination. -Stackable and nesting chairs. -Seat on beam, with fixed or tip-up seat.
BRAND
Lamm
PRODUCTION
Made in Italy
CHAIR STRUCTURE
Structure in high resistance steel, chrome-plated or painted with semi-matt silver, semi-matt white RAL 9010 or semi-matt black RAL 9005 scratchproof epoxy-polyester powder coating. Thermoplastic feet with non-slip rubber support surfaces. One-way polyamide castors.
SEAT AND BACKREST
The seat and backrest are available in 2 versions: In moulded and curved plywood with beech, oak, grey oak and eucalyptus finishes, treated with transparent texturized polyurethane varnish which is non-reflective, non-slip and scratchproof; - upholstered, with a moulded and curved plywood internal support, flame-retardant expanded polyurethane padding. Fixed seat or tip-up seat with a manual tip-up mechanism. On request, seat with spring tip-up.
DESIGNER
Lucci e Orlandini
USE
Indoor
ACCESSORIES
- Fixed arms. - Tip-up writing tablet with anti-panic movement, ABS top, dimensions 33,5x26,5 cm - Vertical tip-up writing tablet, PVC top, dimensions 28x25,5 cm - Nylon connecting hooks - Thermoplastic concealed connecting hooks
SEAT ON BEAM STRUCTURE
-Sides made of high-resistance steel with semi-matt silver, semi-matt white RAL 9010 or semi-matt black RAL 9005 scratchproof epoxy-polyester powder coating, connected by a central tube on which the seat support is fixed. -Fixed seat support in tubular steel, diam. 40 mm., and tip-up seat support in die-cast aluminium. Rectangular steel tube bar, for 2, 3 or 4 seats. -Fixed seat support in tubular steel, diam. 40 mm., and tip-up seat support in die-cast aluminium. Rectangular steel tube bar, for 2, 3 or 4 seats. -Thermoplastic tips and feet. -Table with black or white laminate top and ABS edge
PRODUCT TYPE
Chair
DOWNLOADS
↓ Technical Data
↓ Dimension

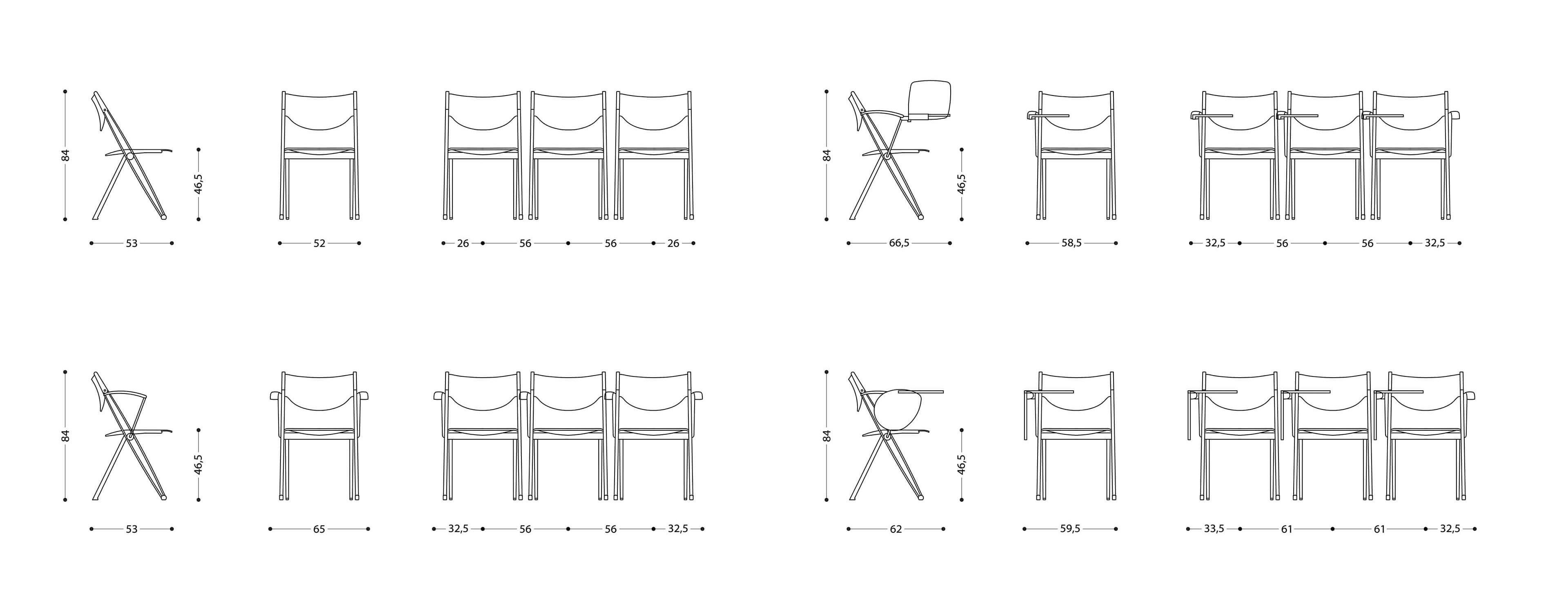

DIMENSIONS
CONPASSO FIXED CHAIR
CONPASSO FIXED SEAT ON BEAM
CONPASSO FIXED SEAT ON BEAM
CONPASSO FIXED SEAT ON BEAM
CONPASSO TIP-UP CHAIR
CONPASSO TIP-UP SEAT ON BEAM
CONPASSO FIXED CHAIR
CONPASSO TIP-UP CHAIR
CONPASSO TIP-UP SEAT ON BEAM
![Lamm Conpasso Chairs](http://{"type":"application/jidipi-edit","data":"<figure class=\\"jdp-reset jdp-image-figure\\" data-ce-tag=\\"image-figure\\"><div class=\\"jdp-mask\\" data-ce-tag=\\"mask\\"><img src=\\"https://upload.jidipi.com/posts/d00095035/1-WBa.jpg\\" data-image-id=\\"65c5b80bf6ef516efed82e6f\\" srcSet=\\"https://upload.jidipi.com/fit-in/420x0/posts/d00095035/1-WBa.jpg 420w, https://upload.jidipi.com/fit-in/700x0/posts/d00095035/1-WBa.jpg 700w, https://upload.jidipi.com/fit-in/900x0/posts/d00095035/1-WBa.jpg 900w\\" data-image-name=\\"1.jpg\\" width=\\"3840\\" height=\\"1507\\" loading=\\"lazy\\" class=\\"jdp-image jdp-reset\\"/></div></figure>"})
FINISHES
CHROMED
HPL LAMINATES
PAINTS
PAINTED WODO
THERMOPLASTIC
EXTREMA AU
![Lamm Conpasso Chairs](http://{"type":"application/jidipi-edit","data":"<div class=\\"jdp-gallery jdp-gallery jdp-gallery jdp-gallery jdp-gallery jdp-gallery jdp-gallery jdp-gallery jdp-gallery jdp-gallery\\" data-ce-tag=\\"gallery\\"><figure class=\\"jdp-reset jdp-image-figure\\" data-ce-tag=\\"image-figure\\"><div class=\\"jdp-mask\\" data-ce-tag=\\"mask\\"><img src=\\"https://upload.jidipi.com/posts/d00095035/1-X2w.png\\" data-image-id=\\"65c5be66287420958fc22079\\" srcSet=\\"https://upload.jidipi.com/fit-in/420x0/posts/d00095035/1-X2w.png 420w, https://upload.jidipi.com/fit-in/700x0/posts/d00095035/1-X2w.png 700w, https://upload.jidipi.com/fit-in/900x0/posts/d00095035/1-X2w.png 900w\\" data-image-name=\\"1.png\\" width=\\"949\\" height=\\"168\\" loading=\\"lazy\\" class=\\"jdp-image jdp-reset\\"/></div></figure></div>"})
TREVI CS
INCA
KING
SILVERTEX
