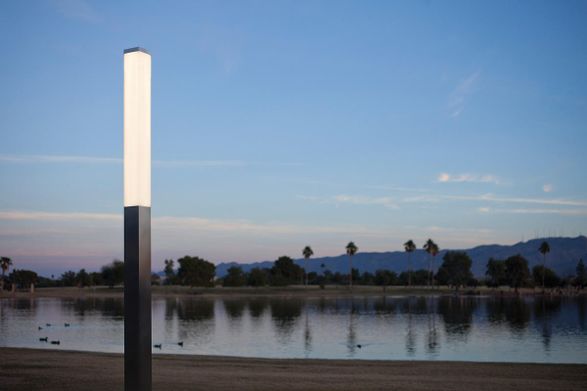

RINCON PEDESTRIAN OUTDOOR BOLLARD LIGHTING

RINCON PEDESTRIAN OUTDOOR BOLLARD LIGHTING

Rincon Pedestrian Lighting has a precise minimalist form that coordinates with Rincon Bollards and Rincon Pathway Bollards. Rincon Pedestrian Lighting blends a minimalist form, stainless steel construction, and the unparalleled performance of Cree® LEDs.

INFORMATION

BRAND

Forms+Surface

PRODUCT TYPE

Forms+Surface

DIMENSIONS

- Width : 4.5 in
- Depth : 4.5 in
- Height : 117 in

LED LAMPS & DRIVER

-Custom LED light engine with Cree® LEDs. -Features advanced LED technology with 30W, 3000K warm white and 4000K neutral white LEDs.
-LED driver includes high efficiency, constant output current, with over-voltage, short circuit, and overload protection. -LED driver input power is 90-305 V. -Driver has 0-10V dimming capabilities. -LED driver certifications include: IP66 (waterproof) enclosure, and Class 2 rated output (UL8750).

WEIGHT

56.50 lbs

VERSION

Base is stainless steel with a durable powdercoat finish

OVERALL HEIGHT

Overall height is 117"

RECYCLED CONTENT

High recycled content; highly recyclable

INSTALLATION

-0.375" thick stainless steel base plate with stainless steel escutcheon cover. 1/2"-13x18" J-bolt anchors. -Installation of a surge protector as part of each units wiring is recommended.
-Stainless steel mounting hardware sold separately. Template available upon request.

ENVIRONMENTAL CONSIDERATIONS

-Please refer to the Rincon Pedestrian Lighting Environmental Data Sheets for detailed environmental impact information. -Metal components have a long life cycle and are 100% recyclable. -Standard powdercoat finishes are no-VOC; non-standard powdercoat finishes are no- or low-VOC, depending on color. -Low maintenance; easy to disassemble.

MODEL

Lprin-led

SHIELD DESIGNS

Standard and custom shield designs available

PERFORMANCE CREE®

Performance Cree® LED

OPTIONAL PERFORATED

Fixtures can be specified with optional perforated shields for one or more sides

MAINTENANCE

Metal surfaces can be cleaned as needed using a soft cloth or brush with warm water and a mild detergent. Avoid abrasive cleaners.

MATERIALS & FINISHES

-Head consists of a 0.25" (6.4 mm) thick white-frosted acrylic lens and a cast stainless steel cap. -Body is constructed from 0.06" (1.5 mm) stainless steel, with Satin finish and Ceramiloc treatment. See below for details -For optional powdercoat colors see the Forms+Surfaces Powdercoat Chart. Custom RAL colors are available for an upcharge. -Stainless steel base with a Satin finish or Slate Texture powdercoat finish. -Shields are stainless steel with a Satin finish and measure 35.76" (908 mm) high x 4.18" (106 mm) wide.

LISTED

ETL and C-ETL listed for wet locations

CERTIFICATION

LPRIN-LED is ETL and C-ETL listed for wet locations

SHIELD OPTIONS

-Optional perforated shields can be specified for 1-4 sides of the fixture. Four standard shield designs are available for an upcharge. Please refer to pages 2 and 3 for details. -Custom shield designs are also available.

DOWNLOADS

↓ CSI Specs
↓ CAD Files
↓ Powdercoat Chart
↓ Installation & Maintenance
↓ Drawings & IES files
↓ Data sheet

TECHNICAL DRAWING

CERAMILOC TREATMENT

Ceramiloc is an invisible surface treatment that offers significantly enhanced protection from weather and graffiti and increases the maintenance ease of stainless steel. Ceramiloc combines ceramic durability with an unparalleled ability to lock out water spots, fingerprints, graffiti and more. Patented technology bonds nano- silica particles to the surface of the stainless steel. The treatment minimally alters the surface appearance of the stainless and offers numerous benefits:

-Easily Cleaned: The Ceramiloc treatment creates a surface that simultaneously resists fingerprints and is easy to clean. Water spots, grease marks and more can be quickly wiped away. It also creates an “anti-graffiti” surface – even permanent marker is easily removed with a clean microfiber towel and water.
-Durable: Ceramiloc-treated materials are abrasion- and scratch-resistant. The treatment is permanent, UV stable, and will not degrade or discolor over time.
-Environmentally Sound: The Ceramiloc treatment is a no-VOC, water-based process. Because Ceramiloc surfaces are so easily maintained, cleaning solutions and maintenance are kept to a minimum.
