Forms+Surface Trio Bollard

TRIO BOLLARD

Forms+Surface Trio Bollard

TRIO BOLLARD

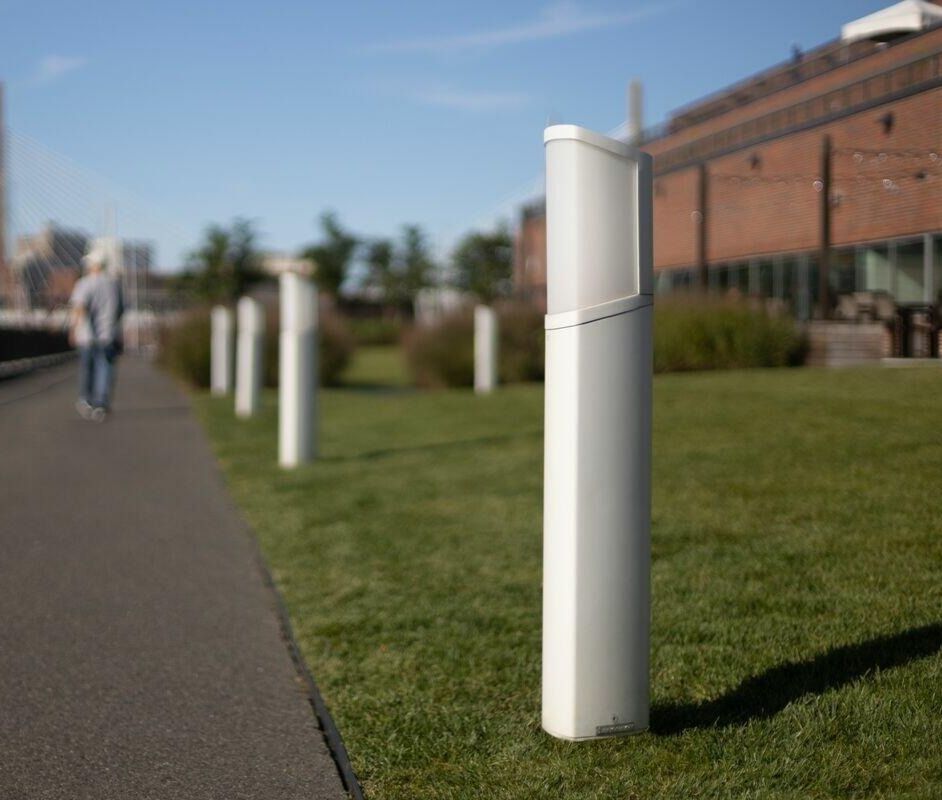

Part of our Trio family of products, the Trio Bollard offers a minimalist form ideal for a myriad of settings.

Forms+Surface Trio Bollard

INFORMATION

BRAND

Forms+Surface

PRODUCT TYPE

Bollard

Forms+Surface Trio Bollard

WEIGHT

35 lbs (15 kg)

CAST

Cast aluminum construction

Forms+Surface Trio Bollard

DESCRIPTION

Trio Bollard, LED

MODELS

LBTRO-LED

LOCATION

ETL and C-ETL listed for wet locations

FINISH

-See the Forms+Surfaces Powdercoat Chart for details. Custom RAL colors are available for an upcharge. -Due to the inherent nature of metal castings, gloss powdercoats are not offered for cast components.

Forms+Surface Trio Bollard

COLUMN

Column is made from a formed aluminum extrusion.

TOP CAP

Cast aluminum cap is attached with recessed security socket cap screws.

MAINTENANCE

Metal surfaces can be cleaned as needed using a soft cloth or brush with warm water and a mild detergent. Avoid abrasive cleaners.

LED LAMP & DRIVER

- 5W LED driver is IP64-rated.
- LED driver input power is 120-277 VAC.
- Driver has forward phase, reverse phase, and 0-10V dimming capabilites.
- Cree® LEDs in 3000K warm white and 4000K neutral white color temperatures.

Forms+Surface Trio Bollard

INSTALLATION

-Bollards must be surface mounted using three tamper-resistant bolts.
-Installation of a surge protector as part of each unit's wiring is recommended. -Stainless steel mounting hardware sold separately. Templates available upon request.

RECYCLABLE

High recycled content; highly recyclable

FINISH

Durable powdercoat finish

Forms+Surface Trio Bollard

CERTIFICATION

LBTRO-LED is UL and C-UL listed for wet locations.

ENVIRONMENTAL CONSIDERATIONS

-Please refer to the Trio Bollard Environmental Data Sheet for detailed environmental impact information. -Metal components have a long life cycle and are 100% recyclable; Trio Bollard has 75% recycled content. -Powdercoat finishes are no- or low-VOC, depending on color.  -Low maintenance; easy to disassemble.

LIGHT

15W custom LED light engine with Cree® LEDs in 3000K warm white and 4000K neutral white

LIGHT ENGINE DESCRIPTION

LAMPDESCRIPTIONLUMINAIRE LUMENS*B.U.G. RATINGS
3000K LED15W custom LED light engine929B0-U3-G1
4000K LED15W custom LED light engine929B0-U3-G1

DRAWING

- Nominal Dimensions
- Base Plate Mounting Detail

Forms+Surface Trio Bollard
Nominal Dimensions/Base Plate Mounting Detail

COLORS

Forms+Surface Trio Bollard

RECYCLING TEXTURES

-Lime Texture -Azure Texture

Forms+Surface Trio Bollard

GLOSS COLORS

-Black Gloss -Bright Silver Gloss -Slate Gloss

COLOR TEXTURES

METALLIC TEXTURES
