Owners Manual Groove Sofa
GROOVE SOFA BED
GROOVE SOFA BED
Sitting or sleeping has never been more comfortable with the Groove: a large choice of different mattresses, beautiful design and extreme seating comfort.

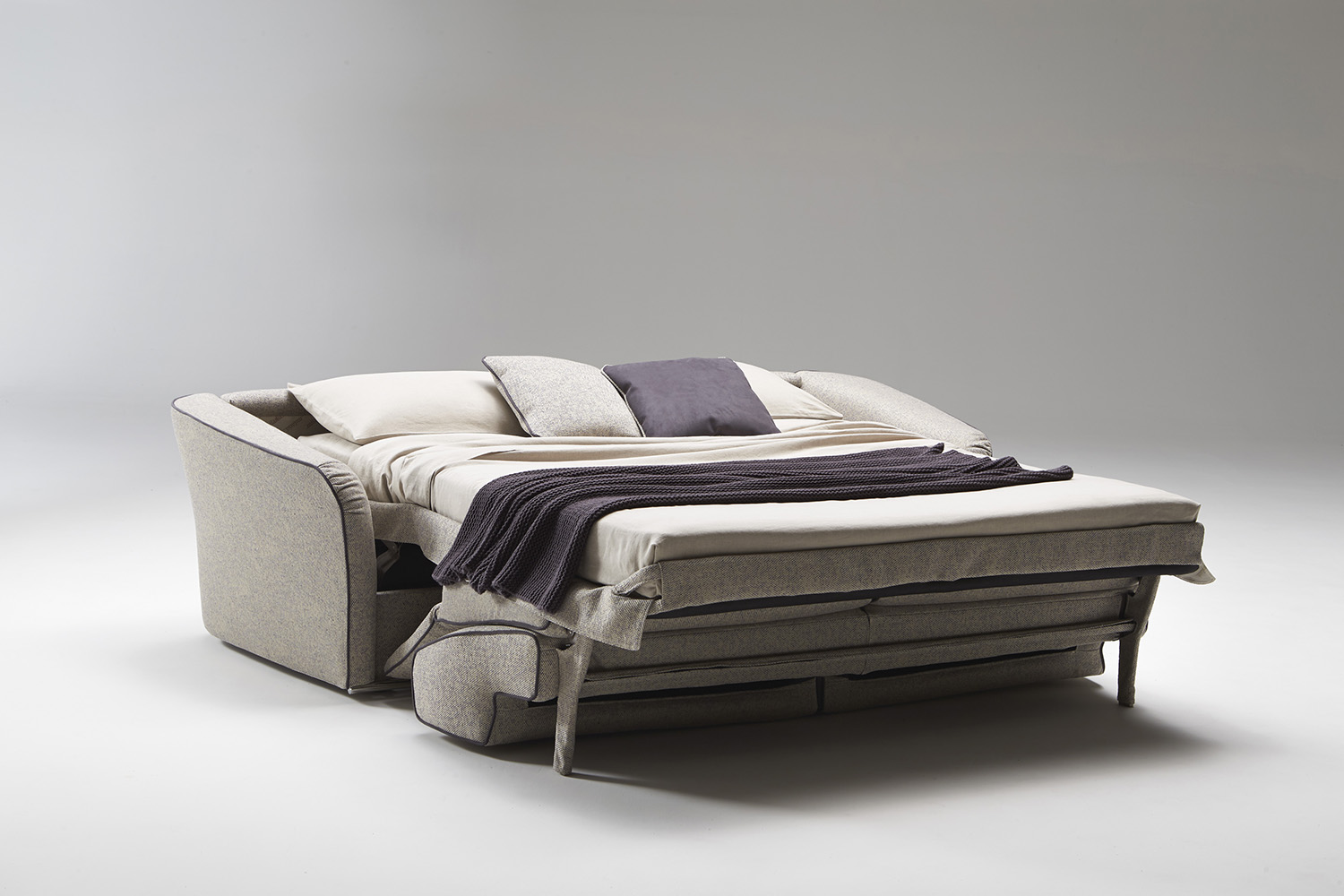

By simply rotating the back, without removing any of the cushions, Groove converts into a conventional bed with a 200 cm. mattress. The cover is completely removable and washable according to the fabric chosen. Groove is also available as a sofa and can be completely disassembled for easy delivery.
INFORMATION
BRAND
Milano Bedding
PRODUCT TYPE
Sofa Bed
PRODUCTION
Made in Italy
COLLECTION
Groove
FRAME
- Back : high resistance steel tube epoxy baked painted.
- Armrests : solid fir, particle wood and poplar plywood. Headboard: solid fir, multilayer of poplar wood and hardboard. Front panel particle wood.
ENVIRONMENT
Indoor
DOWNLOAD
↓ Specifications
USE
-Sitting -Sleeping
DESIGN
Milano Bedding
MATTRESS STANDARD (SOFABED ONLY)
Interior “Bonnel” springing made of a 2,20 mm. hardened steel; expanded polyurethane foam 25 Kg/m3 density; 100% cotton fabric quilted with 100% polyester fibre g 200/m2 and non woven; 100% cotton fabric band.
MECHANISM OR STRUCTURE
High resistance steel tube epoxy baked painted. Orthopedic bed with quality continental weld-mesh, fixed to the frame with springs. Comfortable seating made with webbing or with polypropylene fabric (180 only). Opening and closing operations with one single movement (sofabed only).
PADDING
- Seat : Expanded polyurethane foam 35 Kg/m3 ”Soft”, covered with interliner combined with PL fibre 280 g/m2 and 2,5 mm. quilted interliner.
- Back : Expanded polyurethane foam 18+21 kg/m3 + 100% PL needle-punched 380 g/m2 fiber combined with interliner; inner cover in 2,5 mm. combined interliner.
- Armrests : expanded polyurethane foam 40 and 30 kg/m3 , covered with interliner combined with 200 g/m2 PL fibre.
- Headboard: expanded polyurethane foam 30 kg/m3 covered with interliner combined with 200 g/m2 PL fibre.
- Front panel: 2,5 mm. quilted interliner
TECHNNICAL DRAWING
