Hera Elite-led Xl Ho Linear Lighting
ELITE-LED XL HO LINEAR LIGHTING
STICK3-LED LINEAR LIGHTING
Upgrade from Fluorescent to High Output LED
Line-voltage Linear LED light fixture with XL connecting system. ELite-LED XL HO is a light fixture with integrated electronic driver.
INFORMATION
BRAND
Herak
PRODUCT TYPE
Linear Lighting
INTERCONNECT
Interconnect up to 500 W in a single run
AVAILABLE COLOR TEMPERATURES
- 3000 K
- 4000 K
DETAIL
- Coves
- Displays
- Furniture
- Undershelf lighting
- Undercabinet lighting

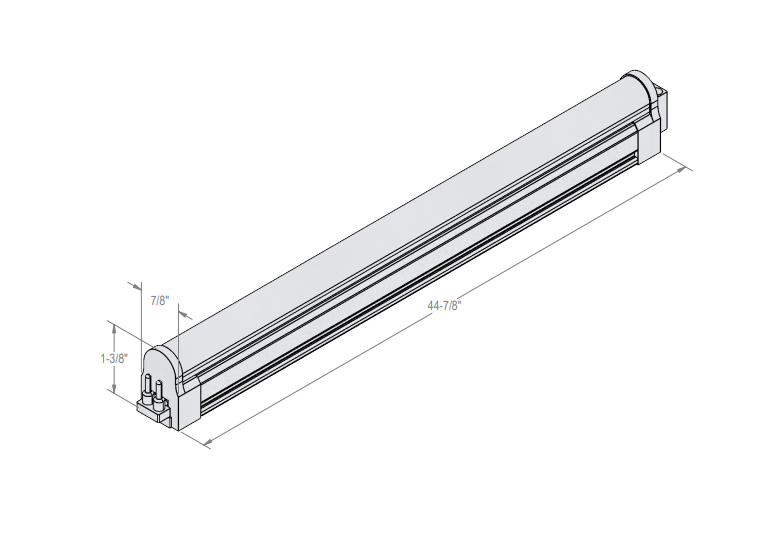

DIMENSIONS
- Width : 1-3/8
- Height : 7/8"
- Length : 44-7/8"
FIXTURE
Fixtures can interconnect with direct connectors or accessory cables
COLLECTION
Elite-led
USE
Illuminate walls, rooms, and hallways.
FINISH
White housing with frosted lens
OPTIONAL HARDWIRE
Optional hardwire box available
ELECTRONIC DRIVER
120 Vac LED with integrated electronic driver
CERTIFIED
EPH certified to NSF/ANSI 2 for use in food zones
HIGHER LIGHT OUTPUT
ELite-LED XL HO delivers a higher light output than T5 fluorescents but uses less energy and has double the lifespan.
USABLE LIFE
50,000 hours usable life
EFFICACY
119-137 lm/W
EASY LED UPGRADE
It uses the same connecting system as our SlimLite T4 and SlimLite XL T5 fluorescent light fixtures, allowing for an easy LED upgrade.
AVAILABLE SIZES
- 1′ (6 W)
- 2′ (11 W)
- 3′ (16 W)
- 4′ (20.5 W)
- 5′ (26 W)
AVAILABLE OPTIONS
| MODEL | LENGTH | POWER L | LIGHT OUTPUT | EFFICACY | CRI | MAX CONNECTED | PART NO. (3000 K) | PART NO. (4000 K) |
|---|---|---|---|---|---|---|---|---|
| ELite-LED XL HO 1’ | 11" | 6 W | 715 Lm | 119 lm/W | >80 | 83 pcs | EL/LED/12/3000/XL/HO | EL/LED/12/4000/XL/HO |
| ELite-LED XL HO 2’ | 21 3/16" | 11 W | 1433 Lm | 130 lm/W | >80 | 45 pcs | EL/LED/22/3000/XL/HO | EL/LED/22/4000/XL/HO |
| ELite-LED XL HO 3’ | 33" | 16 W | 2150 Lm | 134 lm/W | >80 | 31 pcs | EL/LED/34/3000/XL/HO | EL/LED/34/4000/XL/HO |
| ELite-LED XL HO 4’ | 44 7/8" | 20.5 W | 2850 Lm | 139 lm/W | >80 | 24 pcs | EL/LED/46/3000/XL/HO | EL/LED/46/4000/XL/HO |
| ELite-LED XL HO 5’ | 56 5/8" | 26 W | 3550 Lm | 137 lm/W | >80 | 19 pcs | EL/LED/59/3000/XL/HO | EL/LED/59/4000/XL/HO |
