Landscape Forms Typology Path Light

TYPOLOGY PATH LIGHT

Landscape Forms Typology Path Light

TYPOLOGY PATH LIGHT

Designed by BMW Designworks

The Typology Collection, designed and engineered in collaboration with BMW Designworks, opens a new realm of possibility in the way the urban landscape is experienced.

Intelligent, systemic engineering complements existing architecture in meaningful and practical ways - defining and connecting spaces, and intuitively guiding the movement of visitors in and among them.

Landscape Forms Typology Path Light
Landscape Forms Typology Path Light

Typology's path light safely guides users throughout a space. A concrete mantel encases the steel core to provide a premium feel, exceptional durability and strong continuity in design.

DESIGNERS

BMW DESIGNWORKS

Designworks is the design innovation studio for the BMW Group. As an independent studio working for a large bandwidth of industries, Designworks stimulates ambitious visions of the future through practical design strategies and explorations.

Landscape Forms Typology Path Light

It pushes future experiences that are as ambitious as relevant. Designworks is 'the architect of future' - designing holistic systems that impact and improve the world.

With studios in North America, Europe and Asia, Designworks is a powerful tool supporting the BMW Group to be at the very forefront of design, technology and innovation.

A reassuring guide. Combined with the ribbon bench's integral ground lighting, Typology path lights safely guide users throughout the space.

Like a small-scale, vertical version of the ribbon bench, a concrete mantel encases the stainless steel core of the path light to provide a premium feel, exceptional durability and strong continuity in design. This product is Buy America Compliant.

INFORMATION

Landscape Forms Typology Path Light

CERTIFICATIONS

- UL Listed for Wet Location
- CE
- Buy America Compliant
- RoHS Compliantant

MOUNTING

Available in surface mount only. The steel base plate is anchored with four (4) anchor bolts. Mounting hardware and base plate template included.

Landscape Forms Typology Path Light

MATERIAL

Steel rectangular core cladded with two MeldStone performance concrete side panels. Luminaire housing is die cast aluminum with a 1/2" thick aluminum top plate. Slanted reflector is made of stainless steel sheet metal. All hardware is magni-coated and zinc plated steel.

TYPE OF LIGHT

LED

WARRANTY

LED lighting products are warranted for six years.

Landscape Forms Typology Path Light

ELECTRICAL

Internally mounted surge protected 120V through 277V 50/60Hz electronic driver. -20°C start temperature.

AVAILABLE TEMPERATURE

- 2700K
- 3000K
- 3500K
- 4000K

WEIGHT

85lbs

Landscape Forms Typology Path Light

LIGHT ENGINE

Replaceable LED cartridge consists of die cast aluminum body, high power LEDs with secondary optics provide downward directed light. Sealed, UV stable, impact modified diffused acrylic lens. A RoHS compliant circuit board is included. Typology Path Light can be configured with a single LED cartridge for a Type III distribution, or two back-to-back LED cartridges for a Type V distribution.

TM21 L70(10K)

>60,000hrs

PROTECTION CLASS

IP66

Landscape Forms Typology Path Light
Single Unit CQ501-004L3
Landscape Forms Typology Path Light
Double Unit CQ501-008L5

TECHNICAL DRAWINGS

FINISHES

The finish of natural concrete surfaces is porous and has a unique texture when fully cured. Consequently, as compared to smooth mechanically applied finishes, the surface of this concrete finish will naturally exhibit some voids as well as absorb discoloring tannins.

COLORS

MELDSTONE™

Landscape Forms Typology Path Light

POWDERCOATED METAL (METALLIC)

Landscape Forms Typology Path Light

DESIGNER PALETTE ARCHITECTURAL SERIES (LOW SHEEN)

Landscape Forms Typology Path Light

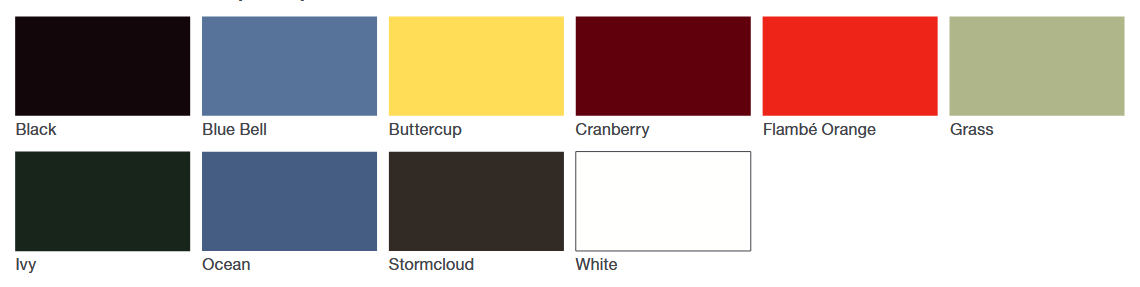

POWDERCOATED METAL (GLOSS)

Landscape Forms Typology Path Light

GALLERY

Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
Landscape Forms Typology Path Light
