Forms+Surface Rincon Pathway Bollard Light

Rincon Pathway Bollard Light

Forms+Surface Rincon Pathway Bollard Light

RINCON PATHWAY BOLLARD LIGHT

The Rincon Pathway Bollard has a precise minimalist form that coordinates with Rincon Bollards and Rincon Pedestrian Lighting.

INFORMATION

BRAND

Forms+Surface

PRODUCT TYPE

Lighting

DIMENSIONS

 Height :9.5"in

Forms+Surface Rincon Pathway Bollard Light

MATERIALS & FINISHES

-H
ead consists of a 0.25" (6.4 mm) thick white-frosted acrylic lens and a cast stainless steel cap. -Body is constructed from 0.06" (1.5 mm) stainless steel, with Satin finish and Ceramiloc treatment. See below for details -For optional powdercoat colors see the Forms+Surfaces Powdercoat Chart. Custom RAL colors are available for an upcharge.

COLUMN

4.5" square

TEMPERATURES

- 3000K
- 4000K

WET LOCATIONS

Etl And C-etl

RECYCLABLE

High Recycled Conten

Forms+Surface Rincon Pathway Bollard Light

MAINTENANCE

Metal surfaces can be cleaned as needed using a soft cloth or brush with warm water and a mild detergent. Avoid abrasive cleaners

INSTALLATION

-Installation of a surge protector as part of each units wiring is recommended. -Stainless steel mounting hardware sold separately. Templates are available upon request. -Standard mounting is surface mount with 3/8"-16 x 8" J-bolt anchors. 3/8" thick stainless steel base plate is slotted for rotational capability.

LED LIGHT ENGINE

-Custom LED board with Cree
-Features advanced LED technology with 14W, 3000K warm white and 4000K neutral white LEDs.

Forms+Surface Rincon Pathway Bollard Light

STARTING TEMPERATURE

-30

LUMINAIRE LUMENS*

780

DESCRIPTION

14W custom LED light engine

MATERIALS & FINISHES

-Head consists of a 0.25" (6.4 mm) thick white-frosted acrylic lens and a cast stainless steel cap.  -Body is constructed from 0.06" (1.5 mm) stainless steel, with Satin finish and Ceramiloc treatment. See below for details  -For optional powdercoat colors see the Forms+Surfaces Powdercoat Chart. Custom RAL colors are available for an upcharge.  -Stainless steel base with a Satin finish or Slate Texture powdercoat finish.  -Shields are stainless steel with a Satin finish and measure 35.76" (908 mm) high x 4.18" (106 mm) wide.

TECHNICAL DRAWING

Forms+Surface Rincon Pathway Bollard Light
Forms+Surface Rincon Pathway Bollard Light

CERAMILOC TREATMENT

Ceramiloc is an invisible surface treatment that offers significantly enhanced protection from weather and graffiti and increases the maintenance ease of stainless steel. Ceramiloc combines ceramic durability with an unparalleled ability to lock out water spots, fingerprints, graffiti and more. Patented technology bonds nano- silica particles to the surface of the stainless steel. The treatment minimally alters the surface appearance of the stainless and offers numerous benefits:

-Easily Cleaned: The Ceramiloc treatment creates a surface that simultaneously resists fingerprints and is easy to clean. Water spots, grease marks and more can be quickly wiped away. It also creates an “anti-graffiti” surface – even permanent marker is easily removed with a clean microfiber towel and water.
-Durable: Ceramiloc-treated materials are abrasion- and scratch-resistant. The treatment is permanent, UV stable, and will not degrade or discolor over time.
-Environmentally Sound: The Ceramiloc treatment is a no-VOC, water-based process. Because Ceramiloc surfaces are so easily maintained, cleaning solutions and maintenance are kept to a minimum.

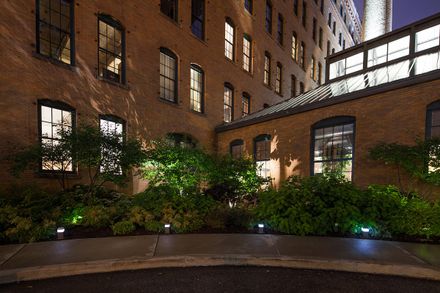

GALLERY
