Forms + Surfaces

Forms+Surface Universal & Recycling Receptacle

UNIVERSAL LITTER & RECYCLING RECEPTACLE

UNIVERSAL LITTER & RECYCLING RECEPTACLE

Universal Litter & Recycling Receptacles offer beauty, performance and design options in stainless steel.

Forms+Surface Universal & Recycling Receptacle

INFORMATION

Forms+Surface Universal & Recycling Receptacle

USE

Receptacles for litter, recycling, compost, ash or combined use

BRAND

Forms+Surface

PRODUCT TYPE

Outdoor Bench

MATERIAL

Stainless steel construction

GALLONS

Round receptacles from 12- to 36-gallons

Forms+Surface Universal & Recycling Receptacle

BODY

Five stainless steel finishes for receptacle body

DETAIL

- A variety of optional Eco-Etch, Perforation and Impression patterns
- Polyethylene liners; multiple liners for multiple-stream receptacles
- Freestanding or surface mount
- High recycled content; fully recyclable

FINISHES

-Eco-Etch patterns are applied using an advanced photolithographic beadblasting system. -Impression patterns are stamped, high relief designs. -Perforation patterns add a unique visual element.

RECEPTACLES

Stainless Steel with Sandstone, Seastone, Linen, Diamond, or Satin finish are available for all Universal Receptacles.

PATTERNS

Three different body patterns are available for an upcharge; see page 7 for standard patterns.

Forms+Surface Universal & Recycling Receptacle

CONFIGURATIONS

-Universal Receptacles are available in top- and side-opening configurations with 36-, 30-, 24-, and 12-gallon capacities. -Top-opening configurations have the same number of liners as lid openings.  -With the exception of 12-gallon models, side-opening configurations can be specified with one full liner or two half liners with an internal baffle

GRAPHICS

-Instructional graphics are available with a variety of standard messages that clearly indicate the use for each opening. -Graphics have white letters and symbols with black, blue, or green backgrounds. -Graphics are printed on the back of clear, lightly textured polycarbonate, protecting them from wear over time.

MAINTENANCE

-Polyethylene and metal surfaces can be cleaned as needed using a soft cloth or brush with warm water and a mild detergent. Avoid abrasive cleaners. -Use caution when cleaning over graphics.

INSTALLATION

-Universal Receptacles may be used freestanding or surface mounted.
-For surface mounting, stainless steel anchors and mounting bolts sold separately. -For freestanding, levelers are supplied for all polyethylene base receptacles.

BASE

Standard 1.5" high tapered bases are molded polyethylene with a UL94HB fire rating and are slate-colored with a light texture.

Forms+Surface Universal & Recycling Receptacle

AVAILABLE

Lids available in polyethylene and stainless steel

VARIETY

A variety of optional Eco-Etch, Perforation and Impression patterns

LID

-Lid material options vary per receptacle size, as described below and illustrated on pages 3-6. -36- and 24-gallon receptacle lids are molded polyethylene. Top-opening lids with 10" diameter openings are also available in stainless steel for an upcharge.  -30-gallon receptacle lids are stainless steel.  -12-gallon receptacles are available in multiple variations: top-opening lids of molded polyethylene, or, for an upcharge, stainless steel; side-opening receptacles with dome lids of molded polyethylene; and side-opening receptacles with concealed ash lids of stainless steel.
-Molded polyethylene lids have a UL94HB fire rating and are slate-colored with a light texture.  -Stainless steel lids have a Satin finish. -Tether cables are available to connect receptacle lid to body.

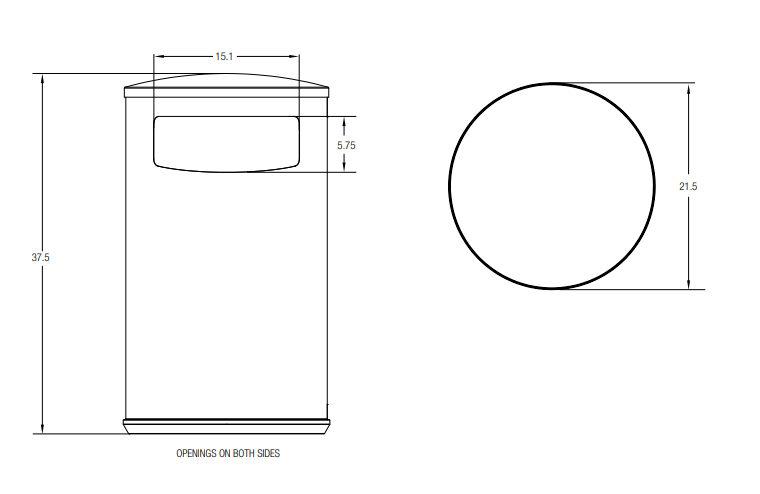

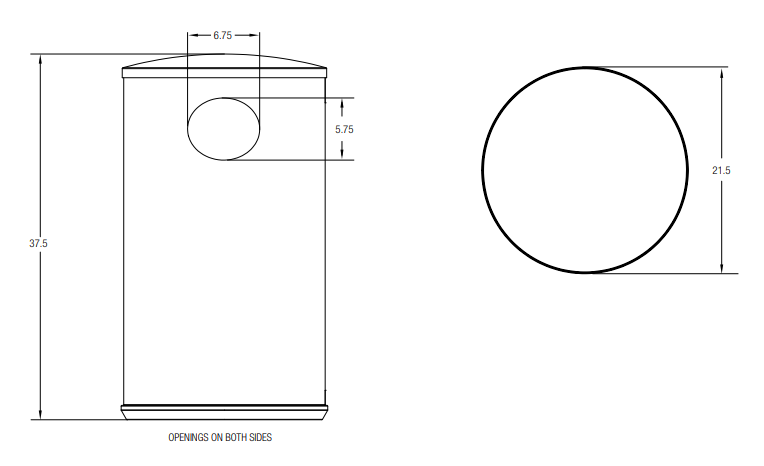

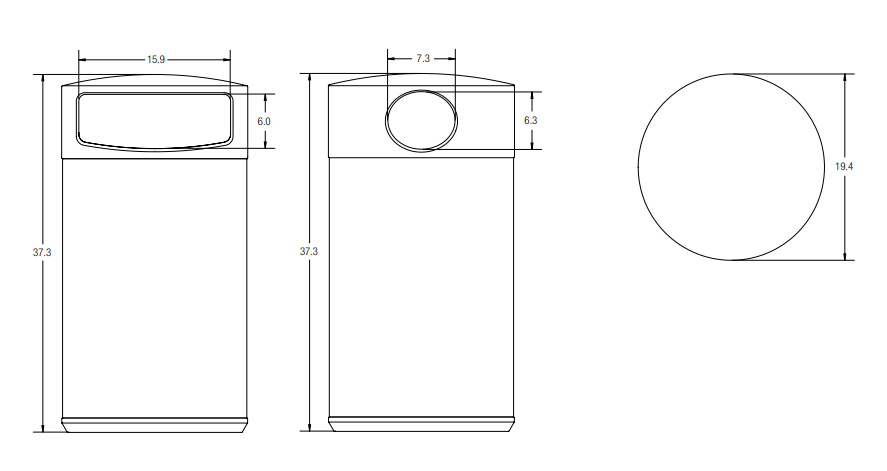

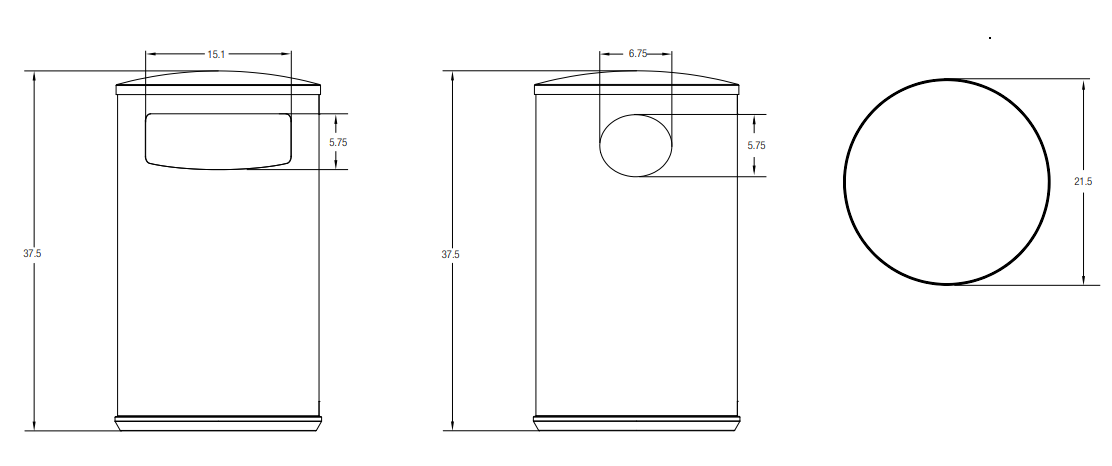

TECHNICAL DRAWINGS

12 GALLONS

Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle

30 GALLONS

Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle

24 GALLONS

Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle

36 GALLONS

Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle
Forms+Surface Universal & Recycling Receptacle
