Forms+surface Light Column Pathway Bollard
LIGHT COLUMN PATHWAY BOLLARD
LIGHT COLUMN PATHWAY BOLLARD LIGHT
Versatile Light Column Pathway Bollards are designed to coordinate with Light Column Bollards and Light Column Pedestrian Lighting.
INFORMATION
BRAND
Forms+Surface
PRODUCT TYPE
Bollard
WEIGHT
- Series 500 : 10 lbs (4.5 kg)
- Series 600 : 13 lbs (5.9 kg
CONFIGURATIONS
Light Column Pathway Bollards are available in two sizes. Series 500 columns use 5" (127 mm) diameter tubular stainless steel; Series 600 columns use 6" (152 mm) diameter tubular stainless steel.
COLLECTION
Column Pathway
USE
Outdoor
MAINTENANCE
Metal surfaces can be cleaned as needed using a soft cloth or brush with warm water and a mild detergent. Avoid abrasive cleaners.
MATERIALS & FINISHES
-Pathway bollards have a tubular stainless steel column, whitefrosted acrylic lens, and a stainless steel head cap. -Standard stainless steel finish is Satin with Ceramiloc finish. See below for details. -For optional powdercoat colors see the Forms+Surfaces Powdercoat Chart. Custom RAL colors are available for an upcharge
MATERIAL
Stainless Steel construction
OVERALL HEIGHT
Overall height is 9.75"
COLOR TEMPERATURES
3000K and 4000K color temperatures
FINISH
- Satin finish with Ceramiloc, an invisible protective surface treatment -Durable powdercoat finish also available
PERFORMANCE
Performance Cree® LED illumination
LOCATIONS
ETL and C-ETL listed for wet locations
RECYCLABLE
High recycled content; highly recyclable
INSTALLATION
-Standard mounting is surface mount with 3/8" thick stainless steel base plate, slotted for rotational capability. -Stainless steel mounting hardware sold separately. Templates are available upon request. -Installation of a surge protector as part of each units wiring is recommended.
DRAWINGS & IES FILES
↓ Light Column Pathway Bollard, series 500, technical drawings
↓ Light Column Pathway Bollard, series 600, technical drawings
↓ Light Column Pathway Bollard IES files
↓ Light Column Pathway Bollard, series 500, lighting plots
↓ Light Column Pathway Bollard, series 600, lighting plots
LEDS & DRIVERS
- Custom LED board with Cree® LEDs.
- LED driver input power is 100-277V.
- Driver has 0-10V dimming capabilites.
- LED driver certifications include: IP66 (waterproof) enclosure, and Class 2 rated output (UL8750)
- Features advanced LED technology with 14W, 3000K warm white and 4000K neutral white LEDs. •
- LED driver includes high efficiency, constant output current, with over-voltage, short circuit, and overload protection.
CERAMILOC TREATMENT
Ceramiloc is an invisible surface treatment that offers significantly enhanced protection from weather and graffiti and increases the maintenance ease of stainless steel. Ceramiloc combines ceramic durability with an unparalleled ability to lock out water spots, fingerprints, graffiti and more. Patented technology bonds nano-silica particles to the surface of the stainless steel. The treatment minimally alters the surface appearance of the stainless and offers numerous benefits:
-Easily Cleaned : The Ceramiloc treatment creates a surface that simultaneously resists fingerprints and is easy to clean. Water spots, grease marks and more can be quickly wiped away. It also creates an “anti-graffiti” surface – even permanent marker is easily removed with a clean microfiber towel and water.
-Durable : Ceramiloc-treated materials are abrasion- and scratch-resistant. The treatment is permanent, UV stable, and will not degrade or discolor over time.
-Environmentally Sound : The Ceramiloc treatment is a no-VOC, water-based process. Because Ceramiloc surfaces are so easily maintained, cleaning solutions and maintenance are kept to a minimum.

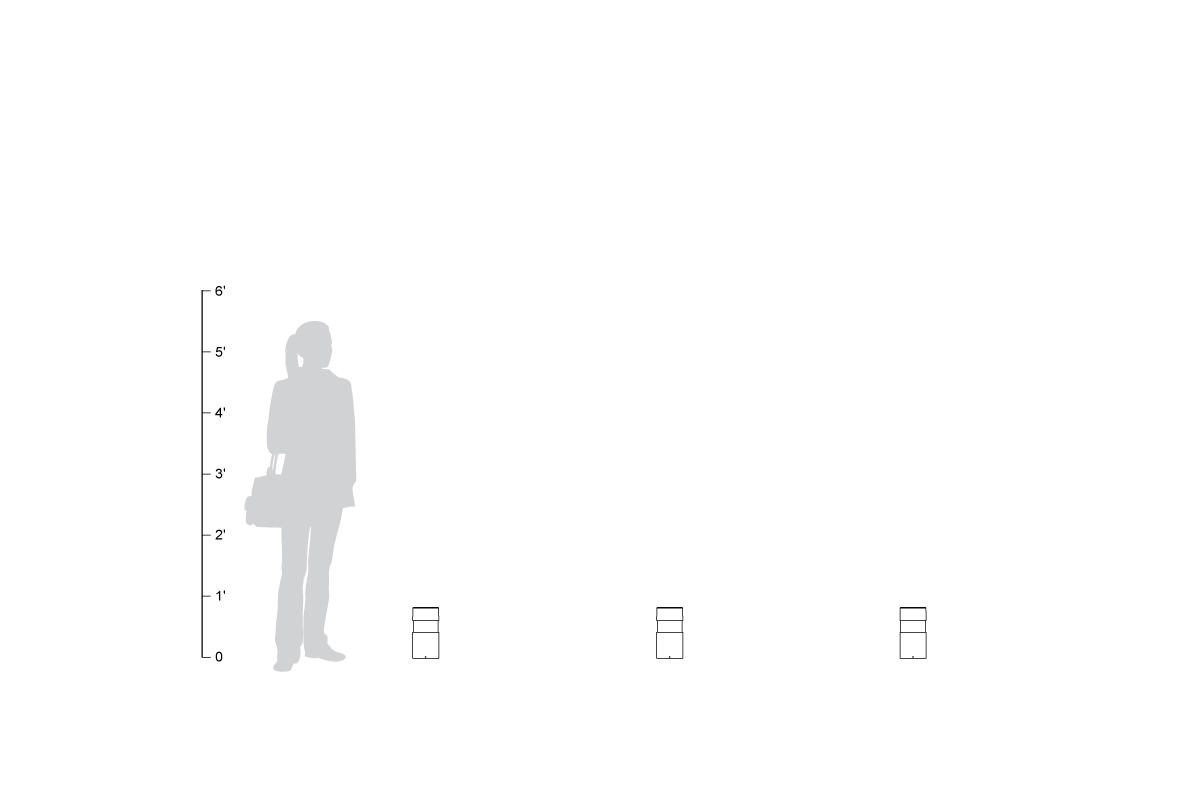

TECHNICAL DIAGRAM
