DISPATCH LITTER & RECYCLING RECEPTACLE
DISPATCH LITTER & RECYCLING RECEPTACLE

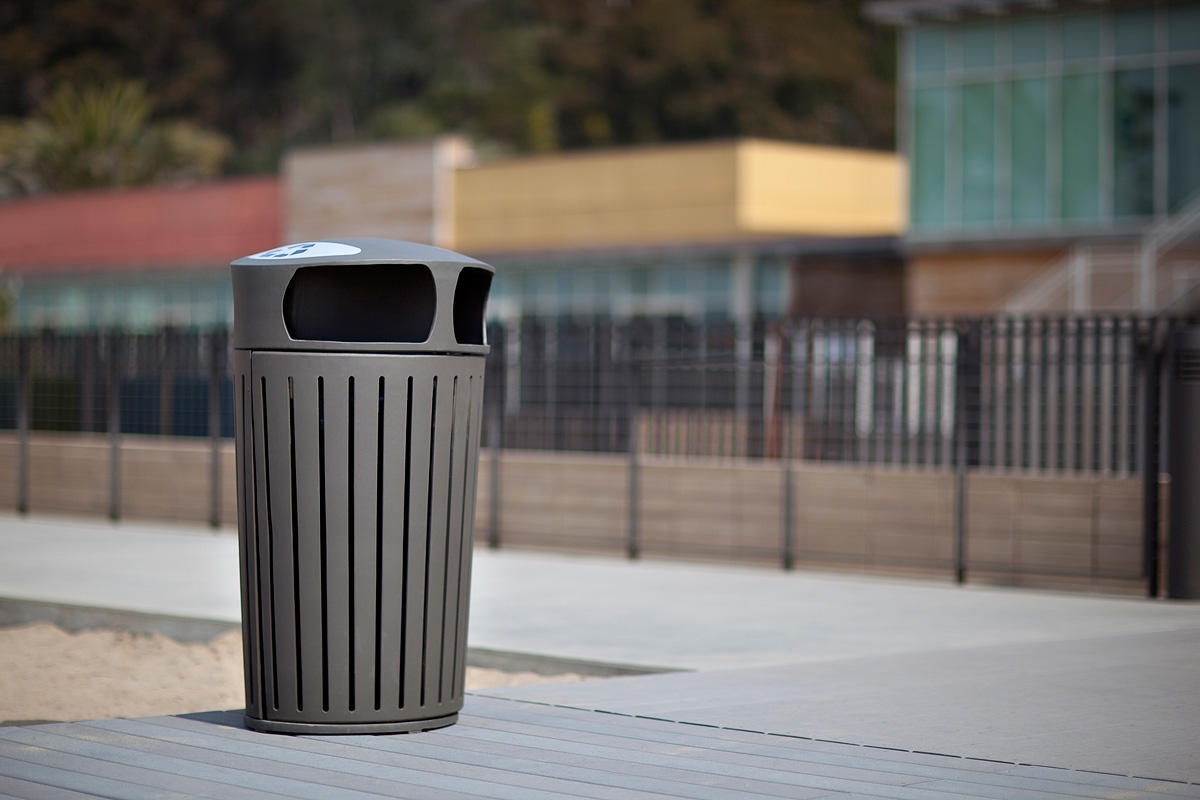

Dispatch Litter & Recycling Receptacles combine robust materials and versatile waste stream management options.
INFORMATION
BODY AND LID
-Body and lid are made of solid cast aluminum with a powdercoat finish. -See the Forms+Surfaces Powdercoat Chart for details. Custom RAL colors are available for an upcharge. -Due to the inherent nature of metal castings, gloss powdercoats are not offered for cast components.
BRAND
Forms+Surface
PRODUCT TYPE
Outdoor Litter Bins
CONFIGURATION OPTIONS
-Receptacles are available in 36- and 45- gallon configurations. -Single-stream receptacles use a single 36- or 45-gallon liner. -Split-stream configurations are divided by an internal baffle plate to create two separate litter and/or recycling streams. 36-gallon receptacles use two 16-gallon half liners; 45-gallon receptacles use two 20-gallon half liners.
COLLECTION
Dispatch
USE
Outdoor
COMBINE
Robust Materials And Versatile Waste
MAINTENANCE
Metal surfaces can be cleaned as needed using a soft cloth or brush with warm water and a mild detergent. Avoid abrasive cleaners
INSTALLATION
-Receptacles can be surface mounted. -For surface mounting, stainless steel anchors and mounting bolts sold separately.
SIDE ACCESS DOOR AND LATCH
-Receptacle opens in a clamshell fashion with half of the cast body serving as a swing-out door. -Two stainless steel latch options are available : lift lever or screwdriver-operated recessed access.
FEATURES
- Surface mount
- 36 and 45 gallon capacities
- High recycled content; fully recyclable
- Instructional litter or recycling graphics
- Openings can be limited to bottles & cans or paper
- Single-stream models with single polyethylene liners
- Split-stream models with two separate polyethylene half-liners
- Solid cast aluminum construction with durable powdercoat finish
INTERNAL CAPACITY
- SLDIS-136 : 36 gallons (136 liters)
- SLDIS-216 : 32 (2 x 16) gallons (121 liters)
- SLDIS-145 : 45 gallons (170 liters)
- SLDIS-220 : 40 (2 x 20) gallons (150 liters)
STANDARD GRAPHICS
LID GRAPHICS
-Instructional graphics are applied to two sign plates, which are mechanically fastened to the top of each lid. -Sign plates are stainless steel with a Satin finish; instructional graphics are black vinyl.
RECYCLING OPENINGS
Openings can be limited to a particular type of recyclable. Along with the standard full litter opening, round bottles & cans and slotted paper openings are available. See details on page 2.
LINERS
-Both single-stream and split-stream receptacles use independent, replaceable internal liners designed to be used with or without plastic litter bags. -Liners are molded from durable black polyethylene with UL94HB fire rating.

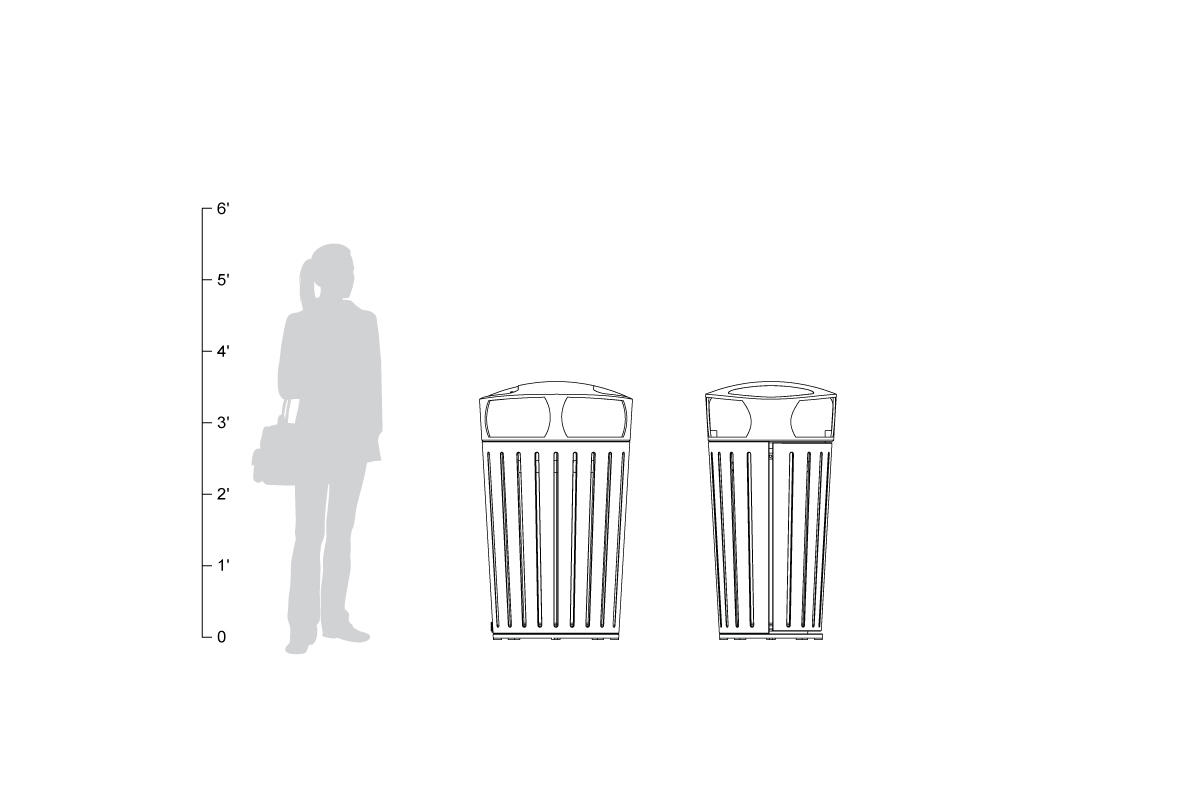

TECHNICAL DIAGRAM
NOMINAL DIMENSIONS
| MODEL | HEIGHT* | WIDTH | DEPTH | WEIGHT |
|---|---|---|---|---|
| SLDIS-136 SLDIS-216 | 43.0" (1092 mm) | 25.5" (648 mm) | 21.8" (554 mm) | 112 lbs (50 kg) |
| SLDIS-145 SLDIS-220 | 45.3" (1151 mm) | 26.8" (681 mm) | 22.9" (582 mm) | 125 lbs (57 kg) |
NOMINAL DIMENSIONS
| OPENING | DIMENSIONS (36 GALLON) | DIMENSIONS (45 GALLON) |
|---|---|---|
| Litter | 13" (330 mm) x 6.5" (165 mm) | 13.75" (349 mm) x 7.0" (178 mm) |
| Bottles & Cans | 4.5" (114 mm) x 4.5" (114 mm) | 4.5" (114 mm) x 4.5" (114 mm) |
| Paper | 8.0" (203 mm) x 1.25" (32 mm) | 8.0" (203 mm) x 1.25" (32 mm) |
VIEW
