DW Windsor

Dw Windsor Pharola Max Outdoor Bollard Lights

PHAROLA MAX OUTDOOR BOLLARD LIGHTS

Dw Windsor Pharola Max Outdoor Bollard Lights

PHAROLA MAX OUTDOOR BOLLARD LIGHTS

Grander version of the Pharola

Pharola Max offers specifiers an increased diameter on the original luminaire, styled to blend into a wide range of urban environments effortlessly while providing a high-performance white light, and promoting a feeling of safety after dark.

FEATURES

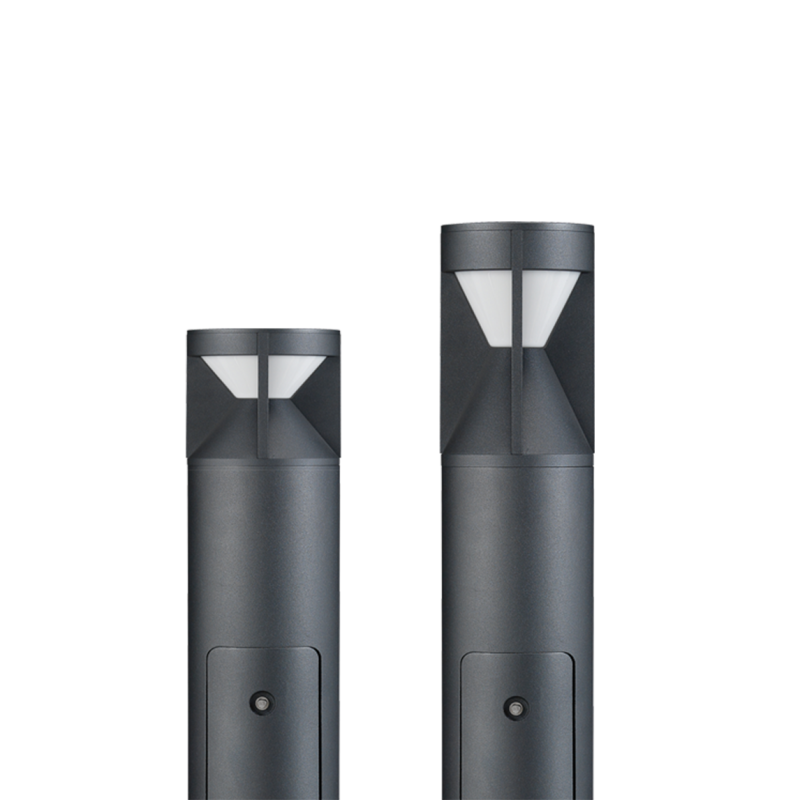

A RANGE OF SIZES

The Pharola Max range provides a choice of two size and head options to offer a versatile solution that can be integrated into any architectural application.

Dw Windsor Pharola Max Outdoor Bollard Lights

FAMILY RANGE

If you're looking for more, this family range offers two additional luminaires: Pharola Max offers a grander version of the bollard, and Pharola DS provides a slim solution with zero light above the horizontal.

Dw Windsor Pharola Max Outdoor Bollard Lights

MOUNTING

Pharola can be installed via root or 1st Fix root mounting or flange plate, making it a versatile and virtually maintenance-free luminaire, suitable when integrated into any location.

Dw Windsor Pharola Max Outdoor Bollard Lights

 VERSATILE ARCHITECTURAL BOLLARD

Pharola is a high-performing white light luminaire, aiding navigation and promoting a feeling of safety after dark, that seamlessly integrates into the architectural landscape.

Dw Windsor Pharola Max Outdoor Bollard Lights

INFORMATION

BRAND

Dw Windsor

PRODUCT TYPE

Outdoor Bollard Lights

FINISH

Polyester powder coat

IP RATING

IP66

DISTRIBUTION

- Symmetric
- 180° Backshield (on request)

HEIGHT

-Pharola Max 1 : 900mm, 3000mm
-Pharola Max 2 : 1000mm, 3000mm

Dw Windsor Pharola Max Outdoor Bollard Lights
Pharola Max 1
Dw Windsor Pharola Max Outdoor Bollard Lights
Pharola Max 2

WEIGHTS

- Pharola Max 1 : 17kg
- Pharola Max 2 : 18kg

CERTIFICATIONS

- Ukca
- Ce

COLOUR TEMPERATURE (CCT)

- 2700K
- 3000K
- 4000K

IK RATING

IK10

ELECTRICAL CLASS

I (II on request)

APPLICATIONS

- Rail
- Public realm
- Paths & walkways

LIGHT SOURCE

High power LED

LUMEN RANGE (LUMENS)

920-1560

MATERIALS

- Seals : Silicone
- Body : Galvanised steel
- Glazing : Polycarbonate
- Head : Die-cast aluminium

POWER RANGE

20

COLOUR RENDERING (CRI)

>70Ra

STANDARD COLOURS

Dw Windsor Pharola Max Outdoor Bollard Lights

KEY FEATURES

- Choice of two head options
- Available in a range of heights
- Complete with door for cable termination access

CONTROLS

Remote switch

DRIVER

Tridonic

DIMENSIONS

PHAROLA MAX 1900

- Ø A : 152
- B : 900
- C : 150
- D :  300
- Weight : 17 kg

Dw Windsor Pharola Max Outdoor Bollard Lights

PHAROLA MAX 21000

- Ø A : 152
- B : 1000
- C : 250
- D : 300
- Weight : 18 kg

Dw Windsor Pharola Max Outdoor Bollard Lights

PHAROLA MAX 13000

- Ø A : 152
- B : 3000
- C : 150
- D : 300
- Weight : 32 kg

Dw Windsor Pharola Max Outdoor Bollard Lights

PHAROLA MAX 23000

- Ø A : 152
- B : 3000
- C : 250
- D : 300
- Weight : 33 kg

Dw Windsor Pharola Max Outdoor Bollard Lights
