DW Windsor

Dw Windsor Sephora Wall Lamp

SEPHORA WALL LAMP

Dw Windsor Sephora Wall Lamp

SEPHORA WALL LAMP

Integral 3 hour maintained emergency

Market-leading LED wall luminaire offering superior optical performance and control, simple installation and significant energy savings.

FEATURES

CONTROLS

Sephora Wall can provide a range of controls from factory set dimming, photocells, and emergency and presence detectors, providing control in its simplest form.

Dw Windsor Sephora Wall Lamp

 SUNLIKE™ LED

For light where needed: not contributing to sky glow or disturbing neighbours - choose Sephora Wall. International Dark-Sky Association approved with 0% ULOR (3,000K or warmer CCTs only).

Dw Windsor Sephora Wall Lamp

SUNLIKE™ LED

For schemes where light for health and wellbeing is paramount, consider the award-winning SunLike™ solution: a technology attuned to our circadian rhythm that mimics natural daylight's spectral power distribution (SPD).

Dw Windsor Sephora Wall Lamp

SIMPLE, SPEEDY INSTALLATION

Contractor-friendly and lightweight, the Sephora Wall features a first fix-back mounting plate and automatic electrical disconnection for simple, time-saving installation, with BESA mounting for conduit applications.

Dw Windsor Sephora Wall Lamp

INFORMATION

BRAND

Dw Windsor

PRODUCT TYPE

Wall Lamp

COLLECTION

Sephora

PRODUCTION

Made in United Kingdom

MOUNTING

Wall Mount

Dw Windsor Sephora Wall Lamp

DIMENSIONS

- B Height : 195 mm
- C Depth : 165 mm
- A Width : 380 mm

WEIGHT

3 kg

ELECTRICAL CLASS

I (II on request)

LIGHTING DISTRIBUTION

- Narrow (Diamond+ A1)
- Medium (Diamond+ A5)
- Wide (Diamond+ C2)

MOUNTING HEIGHT

2-6 m

IP RATING

IP66

COLOUR RENDERING (CRI)

- 70Ra (3000K / 4000K)
- 80Ra (2700K)
- 95Ra (4000K SUNLIKE)

KEY ADVANTAGES

- Wide spacings of 20m+ achievable.
- Available in 2700K, 3000K, and 4000K.
- Integral CMS and emergency options available.
- International Dark-Sky Association approved (3,000K or warmer colour temperature options only).

IK RATING

IK10

CERTIFICATIONS

CE

LIGHT SOURCE

High power LED

L90 LIFETIME ESTIMATE

>100,000hrs

OUTPUT

Up to 1.523lm

SWITCHING AND CONTROL

Switch : On/off

Dw Windsor Sephora Wall Lamp

MATERIALS

-Seals : Silicone
-Body : Die-cast aluminium
-Glazing : Clear or frosted polycarbonate

CONTROLS

- Emergency version
- Part-night switching
- Photocell & Integral CMS
- Pre-programmed dimming

OPTICAL CONTROL

Diamond+

LUMEN RANGE (LUMENS)

640-3989

DRIVE CURRENT RANGE

300mA-700mA

DRIVER

Fully programmable

DIMMING

1-10V, DALI

SURGE PROTECTION

10kV

INSTALLATION AND MAINTENANCE

Simple, time-saving with first fix base plate and auto disconnect feature Optional BESA fixing for conduit applications (Kirium only)

COLOUR TEMPERATURE (CCT)

- 2700K
- 3000K
- 4000K
- 4Sunlike000K

Dw Windsor Sephora Wall Lamp

LED QTY

8-16

MAX EFFICACY (LUMINAIRE LUMENS)

Up to 172lm/W

FINISH

Polyester powder coat

OPERATING TEMP (°C)

-25°C to +40°C

DETAIL

Where lighting for comfort and well-being are paramount, consider SunLike™: an award-winning technology that matches the spectrum of natural sunlight.

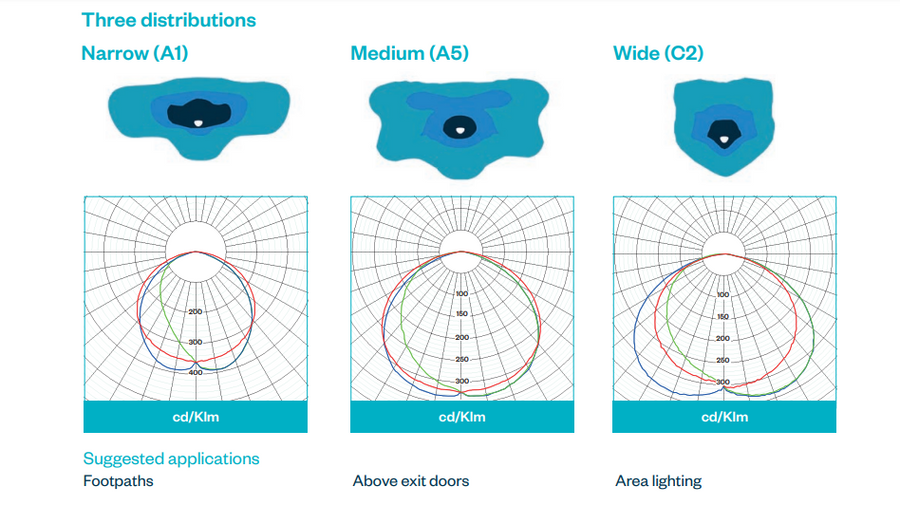

OPTICAL PERFORMANCE

Suitable for a wide range of applications, our Kirium and Sephora wall luminaires offer high performance optics available in a choice of three optimised distributions. For extremely efficient, precise and uniform lighting control

Dw Windsor Sephora Wall Lamp

STANDARD COLORS

Dw Windsor Sephora Wall Lamp

STANDARD COLORS

-Rak 9016 White -Ral 9005 Black -Ral 7035 Light Grey  -Ral 7046 Mid Grey -Ral 9006 Aluminium -Ral 9007 Mecalic Grey -Db 703 Metalic Dark Grey -Corten Brown
