CIRCUS PL PL / PL LED CEILING LAMP
CIRCUS PL PL / PL LED CEILING LAMP
Designed by Contardi Studio

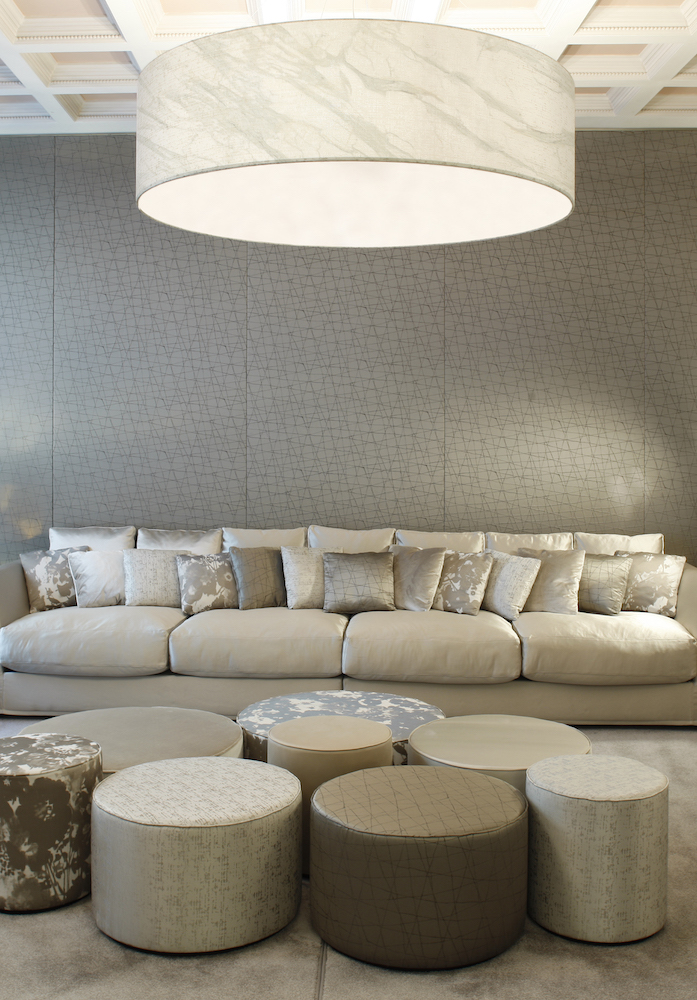

The Circus lamp represents the philosophy of the versatile “white shirt” – an essential classic suitable for any context. A simple but complete product that allows you to customise the fabric lampshade with trimmings of different colours.
All sizes are available with two different light sources: the version with E27 bulbs mounted vertically on the support beams to ensure uniform illumination without the formation of shadows and the version with customized LED plate, very compact, designed for use in commercial spaces, such as offices and retail shops.
The latter offers the possibility - unlike the traditional version - to significantly reduce the height of the lampshade. Circus LED is compatible with the main digital remote-control systems for lighting, an essential feature for use in commercial space projects.
INFORMATION
BRAND
Contardi
COLLECTION
Circus
PRODUCT TYPE
Ceiling Lamp
DESIGN
Contardi Studio
CRI
>90
PRODUCTION
Made in Italy
WIRED VERSION CONTROL SYSTEMS
Compatible with remote control systems when dimmable LED bulbs are used
YEAR OF RELEASE
2006
WIRED VERSION
1 x 10W E27 LED light bulb
LIGHT SOURCE PL 50 / PL 75
3 x 14W E27, LED light bulbs IP20
LIGHT SOURCE PL 90 / PL 120 / PL 150
- IP20
- 4 x 14W E27
- LED light bulbs
FRAME
White Finish
DOWNLOADS
↓ Data sheet
↓ Images
VOLTAGE
220-240V
IP RATING
IP20
LED CUSTOM BOARD - PL LED 50 / PL LED 75
- 1 x 53W
- LED Custom board
- Light emission : 7.300 Lm
-3.000 K; CRI >90
LED CUSTOM BOARD - 90 / PL LED 120 / PL LED 150
- 1 x 70W
-LED Custom board
- Light emission : 10.000 Lm
- 3.000 K; CRI >90
DETAIL
In both versions, the closures and the underlying diffuser discs are made and mounted with the harmonic wire that allows to slightly bend the edges of the diffuser disc, insert it and then place it on the inner crown of the lower frame. This guarantees the so-called drum closure which in terms of aesthetic finish is undoubtedly one of the most refined, as it does not resort to hooks or supports.
DESIGNER - CONTARDI STUDIO
All Together is the Research and Development department of Contardi Lighting: technicians and designers who together create design lighting products, both decorative and functional. Starting from in-depth market research on design trends, in terms of colours, materials but also space and installation needs, All Together designs ideal lighting solutions for both residential and commercial projects.
TECHNICAL DRAWINGS
