In-Lite Hyve 22 RVS Recessed light

HYVE 22 RVS RECESSED LIGHT

In-Lite Hyve 22 RVS Recessed light

HYVE 22 RVS RECESSED LIGHT

This subtle 22 mm diameter fixture includes a stainless steel ring.The easy-lock is supplied as standard with this luminaire.

The cable length on this luminaire is 60 cm.Tip: think of an extension cable

INFORMATION

PRODUCT TYPE

Light

BRAND

In-Lite

COLLECTION

Hyve

ART. NR.

10104000

PRODUCTION

Made in Netherland

EAN CODE

8717051003493

IP CLASS

67

USE

Indoor

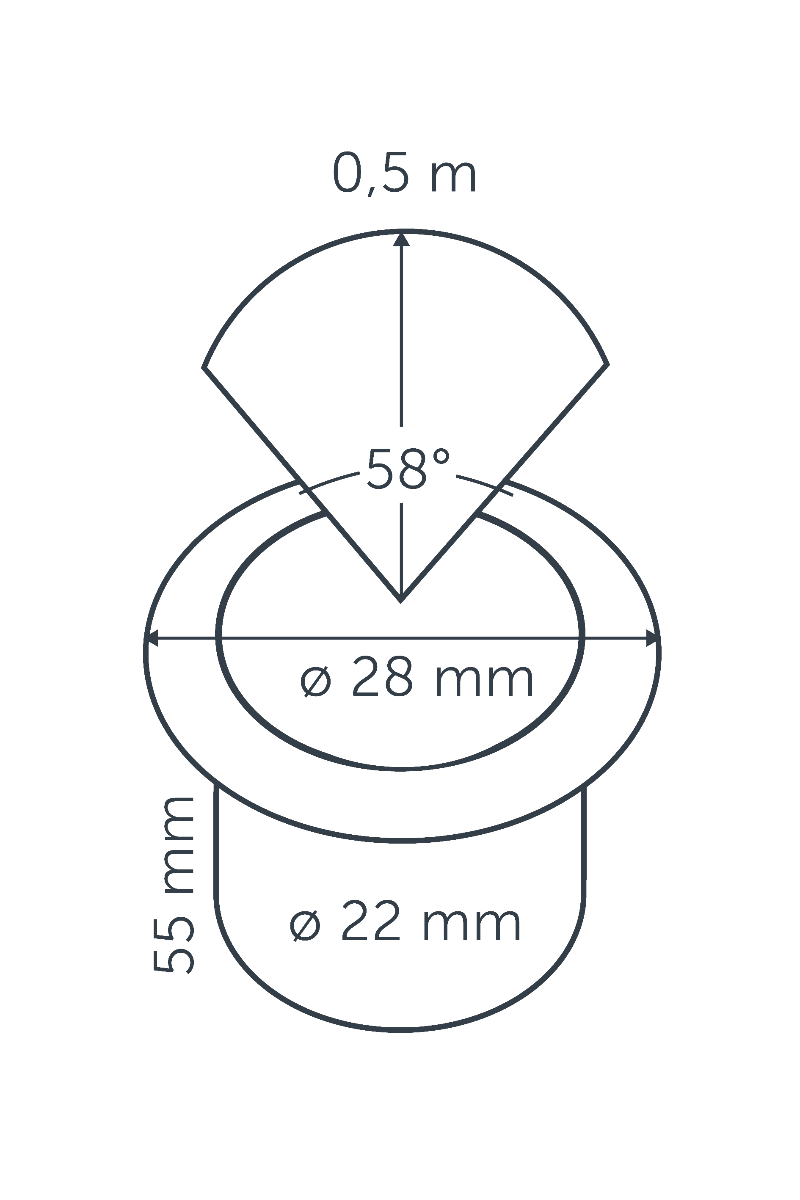

DIMENSIONS

- Height : 37 mm(1.4567 in)
- Depth : 55 mm (2.1654 in)
- Diameter : 28 mm (1.1024 in)

In-Lite Hyve 22 RVS Recessed light

EFFICIENCY (LUMEN/WATT)

10

LIGHT DIRECTION

Upward Adjustment

COLOR TEMPERATURE

3000

NET LUMINOUS FLUX (LUMEN)

2

In-Lite Hyve 22 RVS Recessed light

INSTALLATION ADVICE

A hyve 22 rvs every 1½ to 2 meters

LIGHT TYPE

Diffuse

VOLTAGE

12 volt

PROCESSING

- Grass
- Gravel
- Wood
- Concrete
- Natural stone

ORDER UNIT

6

CRI

95

DETAIL

-Drive-over -Produces an eye-catching yet attractive lighting effect -Designed for illuminating the edges of a driveway, walkway or deck

ENERGY LABEL

G

COLOR

Stainless Steel

In-Lite Hyve 22 RVS Recessed light

IN THE PACKAGE  INCLUDED BY DEFAULT

- 1x Easy Lock
- 60 cm Fixture Cable

APPLICATION

- Path
- Stairs
- Terrace
- Driveway

POWER FACTOR

1

ARTICLE GROUP

Integrated

POWER

0.2 W

DOWNLOAD

↓ Manual

VA VALUE

0.2

LUMINOUS INTENSITY [CD]

1.6

INSTALLATION INSTRUCTIONS

This subtle 22 mm diameter fixture includes a stainless steel ring. In the evening, the honeycomb structure of the lens produces an attractive, warm light that is not blinding. This makes the fixture perfect in, for example, stairs and decks. The HYVE 22 stainless steel beautifully combines with the other fixtures from the HYVE range.
