Wästberg

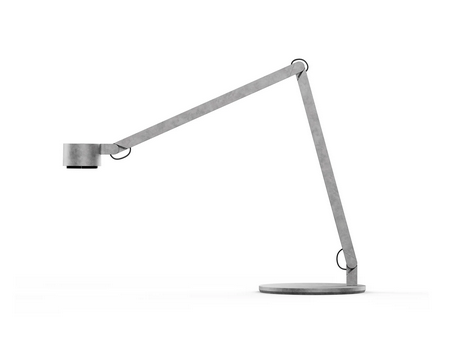

Wastberg W227 Winkel Alu Table Lamp

W227 WINKEL ALU TABLE LAMP

Wastberg W227 Winkel Alu Table Lamp

W227 WINKEL ALU TABLE LAMP

Designed by Dirk Winkel

For the 10-year anniversary of w127 Winkel, we presented w227 Winkel alu: the evolution of our bestselling task light, that takes its bold design to a new level, it has been completely re-engineered with one clear goal: to get more out of less.

Now based on aluminium, this next-generation task light uses significantly less material and features new, slimmer arm profiles and joints, an extended movement range and an evolved light technology.

With its unique and exceptional performance, w227 Winkel alu truly redefines state-of-the-art, high-end task lighting.

Wastberg W227 Winkel Alu Table Lamp
Wastberg W227 Winkel Alu Table Lamp

w227 Winkel alu delivers even more pared-down dimensions and aesthetics than its predecessor, while surpassing it in flexibility. Designed to require as little material as possible, its slender arms and joints are now hollow, allowing previously visible cables and springs to be concealed.

DESIGNER

DIRK WINKEL

Dirk Winkel is a Berlin-based product designer who graduated from the Royal College of Art London, MA Design Products in 2010. Specialized in lighting and furniture design, he set up his design office in Berlin in summer 2011.

Wastberg W227 Winkel Alu Table Lamp

Driven by the idea of formal purism as a basic principle of sustainability, his great interests are the exploration of pushing the boundaries of mass production techniques, the rethinking of light and lighting paradigms, and the investigation of new materials and their ecological and design potential.

Since 2012 he has been teaching Design Construction at the Industrial Design course of the UdK Berlin. In 2022, he was appointed guest professor for product design at the HBKsaar.

His work has won numerous awards and nominations like the Swedish Design Award (Svensk Form), Designs of the Year (London Design Museum), the German Design Award (Special Mention) and the Editors‘ Choice Award (Stockholm Furniture & Light Fair).

INFORMATION

Wastberg W227 Winkel Alu Table Lamp
W227 Winkel Alu B
Wastberg W227 Winkel Alu Table Lamp
W227 Winkel Alu P

TECHNICAL DRAWINGS

- W227 Winkel Alu B
- W227 Winkel Alu P

BRAND

Wastberg

PRODUCT TYPE

Table Lamp

LIGHT SOURCE

COB LED (included)

LIFETIME EXPECTANCY

L80 / 50.000 h

STANDARD DEVIATION OF COLOUR MATCHING

3-step MacAdam

DESIGNER

Dirk Winkel

PRODUCTION

Made in Sweden

Wastberg W227 Winkel Alu Table Lamp

IP RATING

IP20

PROTECTION CLASS

III

MATERIAL

- Base & pin : Steel
- Lamp body : Aluminium

OPTICS

- Diffuser : Acrylic
- Reflector & glare shade : Polyamide

Wastberg W227 Winkel Alu Table Lamp
Wastberg W227 Winkel Alu Table Lamp

LUMINOUS INTENSITY DISTRIBUTION (POLAR)

- Fixture height : 0.40 m
- Light calculation : Single workplace

USE

Inerior

ENVIRONMENT

Indoor

TYPE OF LIGHT

LED

CRI COLOUR RENDERING INDEX

97

COLORS

Wastberg W227 Winkel Alu Table Lamp
Jet Black
Wastberg W227 Winkel Alu Table Lamp
Traffic White
Wastberg W227 Winkel Alu Table Lamp
Raw Tumbled

ARTICLE SPECIFICATIONS

COLOUR / FINISH

VERSIONTRAFFIC WHITE (RAL 9016)JET BLACK (RAL 9005)RAW TUMBLED
B (Art. No. / Ean Code)
227B20230 / 7330492000701227B20530 / 7330492000718227B22030 / 7330492001692
P (Art. No. / Ean Code)
227P20230 / 7330492000725227P20530 / 7330492000732227P22030 / 7330492001708

ACCESSORIES

VERSIONADAPTER SUITABLE FOR USM HALLER TABLEADAPTER SUITABLE FOR USM HALLER SHELFADAPTER SUITABLE FOR VITRA JOYN 2ADAPTER SUITABLE FOR VITRA TYDE 2
B (Art. No. / Ean Code)
----
P (Art. No. / Ean Code)
227ACC001 / 7330492002040227ACC006 / 7330492002057227ACC002 / 7330492002064227ACC003 / 7330492002071

SPECIFICATIONS

VERSIONMOUNTINGEFFICACYLIGHT CONTROLNET WEIGHTVOLTAGE / SYSTEM POWERLED COLOUR TEMPERATURE (CCT) / LUMINOUS FLUX
BBase60 lm / WIntegrated dimmer switch (timer 8h)4.0 kg100–240 V / 8.2 W3000 K / 497 lm
PPin - integrated (hole ⌀14 mm)60 lm / WIntegrated dimmer switch (timer 8h)0.5 kg100–240 V / 8.2 W3000 K / 497 lm

DETAIL

EFFICIENT GLARE PROTECTION

W227 winkel alu features an effective anti-glare construction that prevents glare without any significant light loss.

Wastberg W227 Winkel Alu Table Lamp

HIGH-PERFORMANCE LIGHT

W227 winkel alu’s entire concept is built on providing state-of-the-art light, and in this, it truly excels. Built around a cob led, it is a well- thought-through, precisely engineered lighting solution in a system of several individual components. Each of these plays its own vital role in delivering a generous yet incredibly even spread of high-quality, dimmable light over a large surface.

Wastberg W227 Winkel Alu Table Lamp

FULL-SPECTRUM LED

Designed to recreate the full, uninterrupted colour spectrum of sunlight, full-spectrum light has a rich, profound quality that is impossible to achieve with the limited spectrum of a standard LED. Full-spectrum light also offers superior colour rendering, making it an ideal choice for environments where correct colour perception is a vital aspect.

Wastberg W227 Winkel Alu Table Lamp
Wastberg W227 Winkel Alu Table Lamp

RECYCLED AND RECYCLABLE ALUMINIUM

Not only is aluminium a tried-and-tested, classic and infinitely recyclable material – its strength and lightness allow for robust, resource-efficient constructions. w227 Winkel alu consists of partly recycled aluminium, which itself can be recycled at the end of its long lifespan.

Wastberg W227 Winkel Alu Table Lamp

ADAPTS EFFORTLESSLY

Designed to adapt seamlessly to modern working environments, w227 Winkel alu offers two mounting options – base or pin – and is available in both white and black. In 2024 we introduce an additional tumbled raw aluminium finish.

Wastberg W227 Winkel Alu Table Lamp

RAW

W227 winkel alu is available in a tumbled raw aluminium finish, with no added coatings or protective treatments. This allows for resource-efficient production, easier recycling, and a graceful ageing process. From the start, its naturally textured surface has a rich, tactile depth, with any marks from the production process only adding to its character. Over time, stains, fingerprints, and oxidation will evolve into a beautiful, distinctive patina.

GALLERY

Wastberg W227 Winkel Alu Table Lamp
Wastberg W227 Winkel Alu Table Lamp
Wastberg W227 Winkel Alu Table Lamp
Wastberg W227 Winkel Alu Table Lamp
Wastberg W227 Winkel Alu Table Lamp
Wastberg W227 Winkel Alu Table Lamp
