QUARZ PENDANT LIGHT

Fambuena Quarz Pendant Light

QUARZ PENDANT LIGHT

This set of pendants evokes the grandeur of ancient empires by combining brass rings and white alabaster or oak wood plates. Each piece is meticulously crafted to conjure the sense of splendor and nobility associated with bygone eras.

The choice of materials reflects a balance between the opulence of brass and the natural serenity of alabaster or the warmth of oak. These carefully selected elements offer a range of textures and hues that add depth and character to each pendant, making them unique and distinctive pieces.

Fambuena Quarz Pendant Light
Fambuena Quarz Pendant Light

In addition, the built-in light source consists of an LED plate with an opal diffuser, made of acrylic material. This technology ensures uniform and soft lighting, enhancing the beauty of the materials and highlighting the exceptional craftsmanship behind each design.

INFORMATION

 MATERIAL

- Body Steel
- Diffuser : Acrylic PMMA
- Shade : Alabastro, Roble

PRODUCT TYPE

Pendant Light

LED TYPE

E27

Fambuena Quarz Pendant Light

DESIGNER

Vicente Aleixandre

DIMMER

TRIAC

Fambuena Quarz Pendant Light

FINISHES

- Steel : Brass, Pewter
- Alabaster : White
- Acrylic PMMA : Opal
- Oak ; Natural, Dark

BOX 3 DIMENSION /VOLUME

- 60x60x25cm/ 0.09m
- 30x30x20cm/ 0.018m3
- 30x30x30cm/ 0.027m3

NET WEIGHT

- 33 kg
- 48.55 kg

COLOUR TEMPERATURE

2700K

OPERATING CURRENT

500mA

RATED INPUT WATTAGE

21W

LUMINOUS FLUX

2900lm

BOX 1 DIMENSION /VOLUME

- 70x70x70cm/ 0.343m3
- 80x80x85cm/ 0.544m3
- 40x40x90cm/ 0.144m3
- 20x20x30cm/ 0.012m3

BOX WEIGHT 1/2

- 8.6 kg
- 6.4 kg
- 9 kg

BOX VOLUME

- 0.192m3
- 0.180m3
- 0.064m3
- 0.040m3

CRI

80

LIGHT SOURCE

LED

FREQUENCY

50-60Hz

AC VOLTAGE

220-240

SAFETY CLASS

Class 1

INSTALLATION

Ceiling

MAINTENANCE

Clean with a smooth cloth. Do not use ammonia, solvents or abrasive cleaning products.

BOX 2 DIMENSION /VOLUME

- 30x30x20cm/ 0.018m3
- 30x30x30cm/ 0.027m3
- 30x30x20cm/ 0.018m3
- 40x40x210cm/ 0.336m

CABLE LENGTH

- 170 cm
- 2 m

IP RATED

20

AMBIENT

Indoor

TECHNICAL DRAWING

TECHNICAL DRAWING

Fambuena Quarz Pendant Light

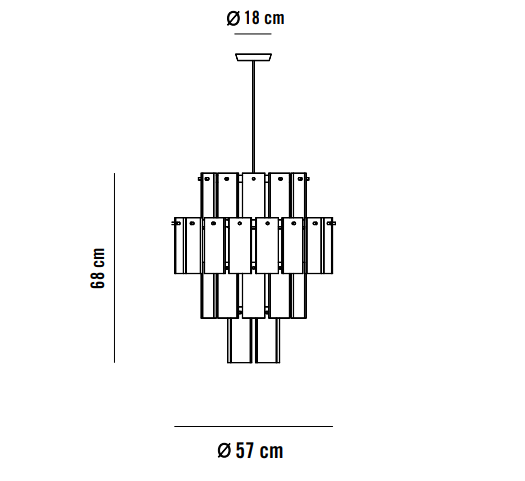

REF. 6054 /57x68cm
Fambuena Quarz Pendant Light

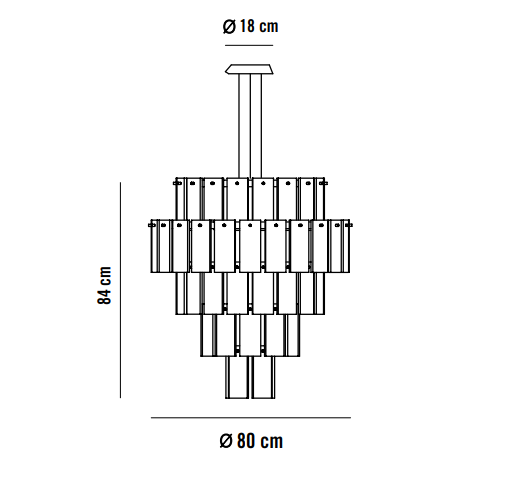

REF. 6055/80x84cm
Fambuena Quarz Pendant Light

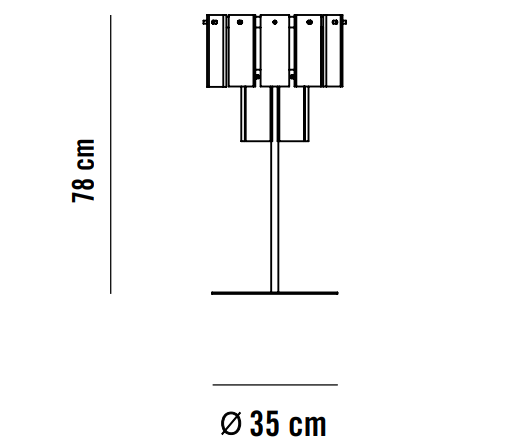

REF. 6064/35x78cm
Fambuena Quarz Pendant Light

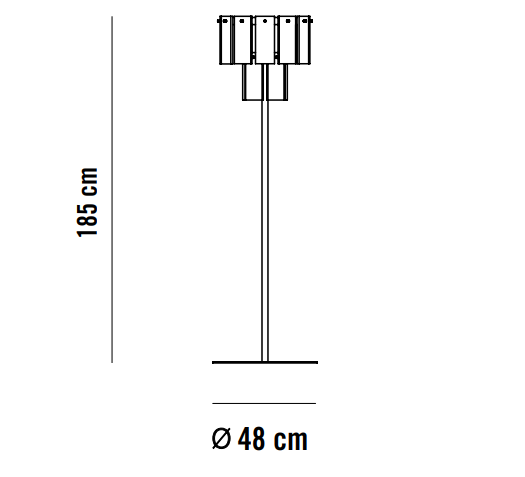

REF. 6065/48x185cm
Fambuena Quarz Pendant Light

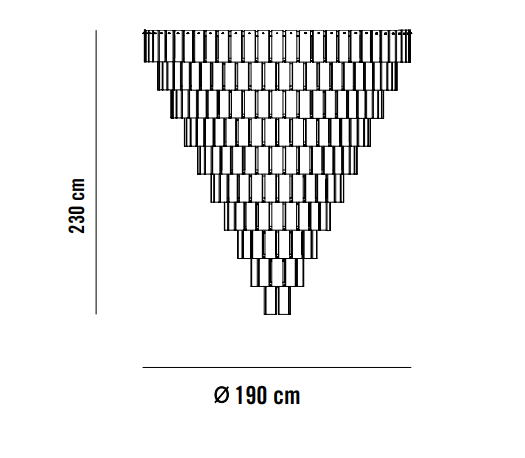

REF. 6069/190x230cm

FINISHES

FINISHES
