Palofirm Kodo Modern Outdoor Fireplace
KODO MODERN OUTDOOR FIREPLACE
KODO MODERN OUTDOOR FIREPLACE
Kodo modern outdoor fireplace takes the simple, iconic hearth and pares it down to its essence in a clean, minimalist design—a 36” (914 mm) linear fire framed in a sculptural surround of seamless steel.
INFORMATION
BRAND
Palofirm
PRODUCT TYPE
Outdoor fireplace
COLLECTION
Kodo
BURNERS
-Electronic and Match-lit Ignition. -Natural Gas or Propane. 60,000 BTU/h | 18 kW
ACCESSORIES
- Tempered Glass Screen
- Metal Burner Cover (included)
PORT SIZE
1/8"
BURNER PORTS
35
DIMENSIONS
- Height : 1829 cm (72”)
- Width : 1829 cm (72”)
- Depth : 457 (18”)
CERTIFICATIONS
- Switzerland – SVGW
- Australia – IAPMO GasMark (some models)
- Europe: CE Certified under the Gas Appliance Regulation (EU) 2016/426
- North America (U.S.A. and Canada): CSA / ANSI standards, listed by LabTest Certification
WEIGHT
Up to 550 lbs (350 kg)
INLET PRESSURE - MAX.
10.5” W.C. (13.0” W.C).
MAX HEAT INPUT
60,000 BTU/h( 57,000 BTU/h)
BURNER MODEL
LIN-36 (LIN-36P)
ELECTRICAL
120V 15A Outdoor Receptacle - Dedicated Circuit with Wall Switch. Burner connects via an AC adapter. Must be installed and grounded in accordance with local codes.
DETAIL

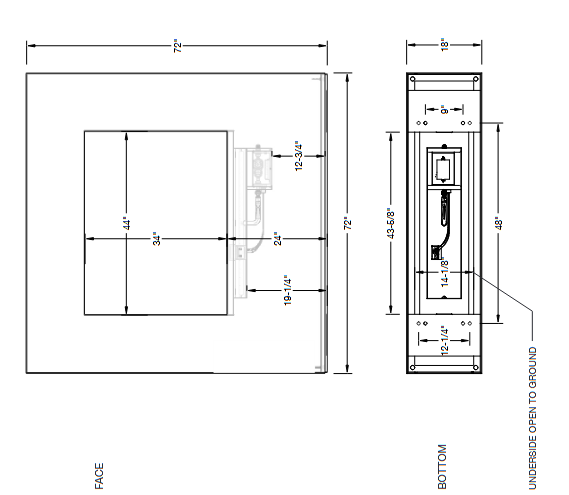

The surround is square, 72”x72”x18”d (1829 x 1829 x 457), conveying mass and materiality and large enough to be a substantial space definer. The heart of Kodo is a natural gas or propane burner – 60,000 BTU/h (18 kW), available with electronic ignition or match-lit – a wide strip of flame that animates the structure, warming the surrounding area and playing light and movement across the solid surfaces of the fireplace. Kodo modern outdoor fireplace is available in Corten weathering steel for a rich, living patina, or in powder-coat for a pure, monolithic aesthetic. All of our modern outdoor fireplace burners are certified to the latest safety standards: CSA/ANSI in North America, and CE under the European Gas Regulation for the EU.
COLORS
METAL
With our choice of metals, we seek to harness each material’s intrinsic properties – and aesthetics. Corten (COR-TEN) or weathering steel is an alloy that develops a stable rust-like oxidation on its surface when it is exposed to the elements. This layer, which continually regenerates, provides a no-maintenance finish that protects the steel from corroding. Paloform corten fires are pre-weathered to provide more even patina coverage while still allowing for natural colour and texture variation.
HAND CAST CONCRETE
Paloform’s high-performance concrete is a proprietary blend of local materials designed to balance aesthetics, durability and sustainability. Our individual tints are derived from earth oxides, but concrete’s overall colour comes from the cements and aggregates that are used and is minutely influenced by the mixing process and curing conditions. This ensures that every fire pit is unique and is imbued with a rich complexity. Colour variation is one of concrete’s intrinsic qualities, so no single sample tells the whole story. Our concrete six fire pit colours represent a broad, balanced range to complement contemporary design: rich and organic; sophisticated and restrained
STAINLESS STEEL
Stainless steel is used to top our Robata Concrete fire pits and provides a clean, modern finish that contrasts and complements the soft, organic aesthetic of cast concrete. This provides a functional surface that doubles as an outdoor coffee table. Komodo and Fold are available in Corten as well as outdoor powder-coat finishes, which provide solid, vivid colour and many custom options.
TOPPING MEDIA
Paloform’s topping media have been selected for their balance of aesthetics and functional performance. When placed correctly, the media enhance the appearance of the flame and complement the other fire pit materials. River rocks are actually honed basalt. Volcanic in origin, these stones do not share the same explosive characteristics of other types of stone. Likewise, lava pebbles and featherock are also sourced from volcanic lava fields. Glass media are recycled, crushed or reconstituted from old tempered panes. For reasons of function and availability, not all fire pit toppings are available for all models. Please see product pages for details.
