CALDERA CORTEN FIRE PIT
CALDERA CORTEN FIRE PIT
A bold and sculptural fire feature, Caldera Corten outdoor fire pit is inspired by the crater left by a sunken volcano.
Caldera Corten fire pit is the perfect focal point for a contemporary outdoor setting. Formed in 5 mm Corten steel, its substantial size is 1143 x 1143 x 30, and its rectilinear form and patina finish make it a thoroughly modern outdoor fire pit.
Caldera outdoor fire pit may be ordered for wood burning or with your choice of natural gas or propane burners. Our burners are available in two styles: a manually-lit version with the standing pilot and safety thermocouple, or with electronic ignition that may be controlled with a wall switch or wireless remote.
INFORMATION
BURNERS
- Wood-burning version also available
- Electronic and Match-lit Ignition. Natural Gas or Propane
- UK & Europe: CE Certified under the Gas Appliance Regulation (EU) 2016/426
HEAT OUTPUT
69.000 BTU/h / 25 kW
AVAILABLE FINISHES
Corten Steel
AVAILABLE ACCESSORIES
Aluminum Table Top
INSTALLED WEIGHT
Up to 425 lbs | 195 kg
DIMENSIONS
45″ X 45″ X 12″H (1143 x 1143 x 305 mm)
ENVIRONMENT
Outdoor
PRODUCTION
Made in United Kingdom
ACCESSORIES
All-weather cover (included). Powder-coated aluminum table top. Featherock boulders.
CERTIFICATIONS
- Switzerland – SVGW
- Australia – IAPMO GasMark (some models)
- UK & Europe: CE Certified under the Gas Appliance Regulation (EU) 2016/426
- North America (U.S.A. and Canada): CSA / ANSI standards, listed by LabTest Certification
BURNER MODEL
- CIF-M-18 (Natural Gas)
- CIF-M-18P (Propane)
USE
Heating
PRODUCT TYPE
Fireplece
CRATE SIZE
- 51”x51”x21”h
- 130x130x54 cm
DETAIL
Komodo Contemporary Fire Pit comes complete with a choice of topping medium and a commercial-grade all-season cover. It is available in powder-coated steel in five colours, as well as Corten weathering steel.Our burners are CE certified for the European Union and the UK.
They provide a beautiful flame and cozy warmth to extend your enjoyment of the outdoors into the chilliest seasons.Natural gas and propane versions of our Corten fire pits come complete with topping media and all-weather covers. Corten steel outdoor fire pits are pre-weathered to provide even patina coverage.
PLEASE NOTE: the wood-burning version of Caldera cannot be placed on flammable or non-heat-stable surfaces – this includes concrete slabs. Concrete may contain trapped moisture and can spill or even explode when heated.
TECHNICAL DETAIL
BURNER MODEL CIF-M-18/CIF-M-18P
BURNER MODELCIF-E-18 /CIF-E-18P

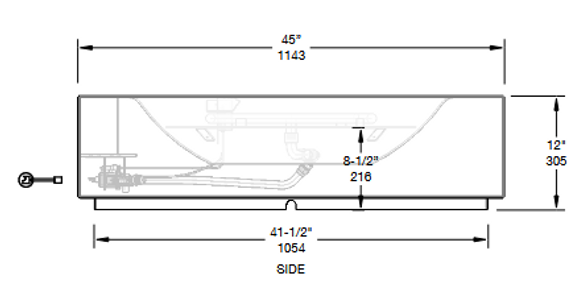

TECHNICAL DRAWINGS
COLORS
HAND CAST CONCRETE
Paloform’s high-performance concrete is a proprietary blend of local materials designed to balance aesthetics, durability and sustainability. Our individual tints are derived from earth oxides, but concrete’s overall colour comes from the cements and aggregates that are used and is minutely influenced by the mixing process and curing conditions. This ensures that every fire pit is unique and is imbued with a rich complexity. Colour variation is one of concrete’s intrinsic qualities, so no single sample tells the whole story. Our concrete six fire pit colours represent a broad, balanced range to complement contemporary design: rich and organic; sophisticated and restrained
METAL
With our choice of metals, we seek to harness each material’s intrinsic properties – and aesthetics. Corten (COR-TEN) or weathering steel is an alloy that develops a stable rust-like oxidation on its surface when it is exposed to the elements. This layer, which continually regenerates, provides a no-maintenance finish that protects the steel from corroding. Paloform corten fires are pre-weathered to provide more even patina coverage while still allowing for natural colour and texture variation.
STAINLESS STEEL
Stainless steel is used to top our Robata Concrete fire pits and provides a clean, modern finish that contrasts and complements the soft, organic aesthetic of cast concrete. This provides a functional surface that doubles as an outdoor coffee table. Komodo and Fold are available in Corten as well as outdoor powder-coat finishes, which provide solid, vivid colour and many custom options.
TOPPING MEDIA
Paloform’s topping media have been selected for their balance of aesthetics and functional performance. When placed correctly, the media enhance the appearance of the flame and complement the other fire pit materials. River rocks are actually honed basalt. Volcanic in origin, these stones do not share the same explosive characteristics of other types of stone. Likewise, lava pebbles and featherock are also sourced from volcanic lava fields. Glass media are recycled, crushed or reconstituted from old tempered panes. For reasons of function and availability, not all fire pit toppings are available for all models. Please see product pages for details.
