Cerno Calx Pendant Lamps
CALX PENDANT LAMPS
CALX PENDANT LAMPS
The Calx is an example of modern design where the methods and the materials themselves are integral to its very conception, aligning form and function, which creates a synergy that is evident. The fixture ultimately forms a square aperture but enjoys a beautifully simple faceted structure.
INFORMATION
BRAND
Cerno
PRODUCT TYPE
Pendant Lamp
LIGHT OUTPUT
-Calx 10 : 345 Lumens (source)
-Calx 19 : 1647 Lumens (source), based on 2700K
-Calx 36 : 4x GU-24 base, 18 W max each
DRIVER (*NOT AVAILABLE ON CALX 36)
-Calx 36 (*) -Calx 10 120 V AC input voltage TRIAC, ELV, or 0-10V dimmable (P1) -Calx 19 AC Input Voltage Range: 120-277 V, 0-10 V dimming at 120-277 V AC, TRIAC and ELV dimming at 120 V AC only (P1)
CALX 19 & CALX 36
Suitable for a sloped ceiling
CALX 36
Bulbs not included
LIGHT COLOR
2700 K or 3500 K
POWER USAGE
- Calx 10 : 3.2 W
- Calx 19 : 19 W
LIGHT SOURCE
- Calx 10 : Integrated led
- Calx 36 : 4x GU-24 base socket
MATERIALS
- Wood
- Metal
- Polymer
WEIGHT
- Calx 10 : 2 lb
- Calx 19 : 7 lb
- Calx 36 : 18 lb
DIMENSIONS
- Calx 10 : 6.75" x 6.75", 6.4"
- Calx 19 : 13" x 13", 12.75"
- Calx 36 : 25" x 25", 22.75"
COLOR ACCURACY
90+ CR
INPUT VOLTAGE
Calx 36 : 300 V AC max
LAMPING
-Calx 19 : 1x E26 base, type A lamp, 60 W max
-Calx 36 : 4x GU-24 base, 18 W max each
CANOPY DIMENSIONS
- Calx 10 : 8"ø, 1.25"
- Calx 19 : 5"ø, 0.3"
- Calx 36 : 5"ø, 0.3"
CALX 10 DETAILS
- Wood grain will vary
- Braided cord included
- Suitable for a sloped ceiling
- Dimmable (see driver below)
- 72" drop length, field adjustable
- Specifications subject to chang
- Driver dimensions : 2" x 1.3" x 1", included
- Driver location : must be housed in J-box
- White (CM-060) low-profile round canopy with white
- See website for more canopy information
- Vailable in 3000k, 4000k and other color temperatures upon request
CALX 19 - INTEGRATED LED SPECIFICATIONS
-Dimmable (see driver below)
-72" drop length, field adjustable
-See website for more canopy information
-Canopy required to house LED driver (3.3" x 1.6" x 1.0")
-Available in 3000K, 4000K and other color temperatures upon reques
-White (CM-060) extended-profile round canopy with white braided cord and steel cable included
SPECIFICATIONS - CALX 36
- Wood grain will vary - Suitable for a sloped ceiling - Specifications subject to change - 96" drop length, field adjustable - White (CM-060) 8" round canopy included - See website for more canopy information
DETAILS
LAMPING
- 3000K LED
- 2700K LED
- Calx 36 (*not available on Calx 36)
WOOD FINISH
- White washed oak
- Dark stained walnut
- Walnut
METAL FINISH
- Brushed Brass
- Brushed Rose Gold
- Brushed Aluminum
SIZE
- Calx 36 (36)
- Calx 19 (19)
- Calx 10 (10)

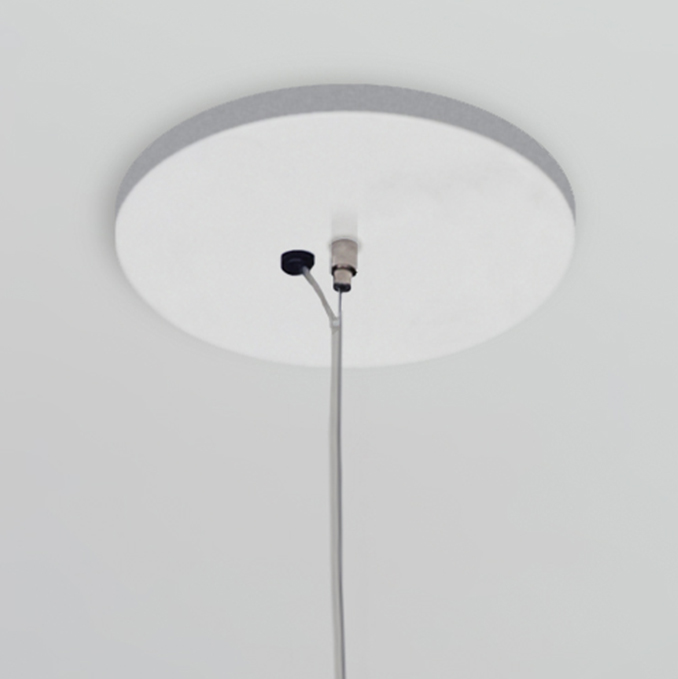

INCLUDED CANOPIES
