Two Parts Carbon Pendant Lamp
CARBON PENDANT LAMP
CARBON PENDANT LAMP
Designed by Christo Logan
Carbon is a friendly creature. It doesn’t mind hanging solo, but it absolutely relishes time spent with fellow Carbons.
Together, they form a graphene-like hexagonal sheet emanating light in all directions. Each fixture’s smooth polycarbonate boasts velvety translucence within a deep atmosphere of crystal clear acrylic sealed shut with ultrasonic welding.
INFORAMTION
BRAND
Two Parts
TYPE
Indoor Pendant Fixture
ACCURACY
- CRI 95
- R9 90
DESIGNER
Christo Logan
LINE
100-305V AC @ 50-60Hz
BRIGHTNESS
1000 lumens
QUANTITY
1
LIGHT TEMPERATURE
- Car-cw-27 : 2700k
- Car-cw-30 : 3000k
- Car-cw-35 : 3500k
CORD
20ft / 6m cut to length
COLLECTION
Carbon
RENDER SPLENDOR
Bask in professional caliber light, whether at your art gallery, film set or bathroom. Typical LED fixtures output at a Color Rendering Index of 80 out of 100 with some achieving 90. Two Parts’ custom LEDs achieve a CRI of 95 while optimizing for power efficiency and brightness.
LED
- Input : 15W
- Output : 1000 lm
- User replaceable : No
- Life Expectancy : 50,000 hours
- Input : 12V Constant Voltage
CLUSTER SIZE : DRIVER
- Two Parts 25W Driver
- Two Parts 40W Driver
- PWM-90-12 Driver
- Any 110W+ 12V CV Driver
MATERIAL
-Acrylic -Polycarbonate
WARRANTY
- Fixture : 5 years
- Driver : 3 years
CLUSTER LUSTER

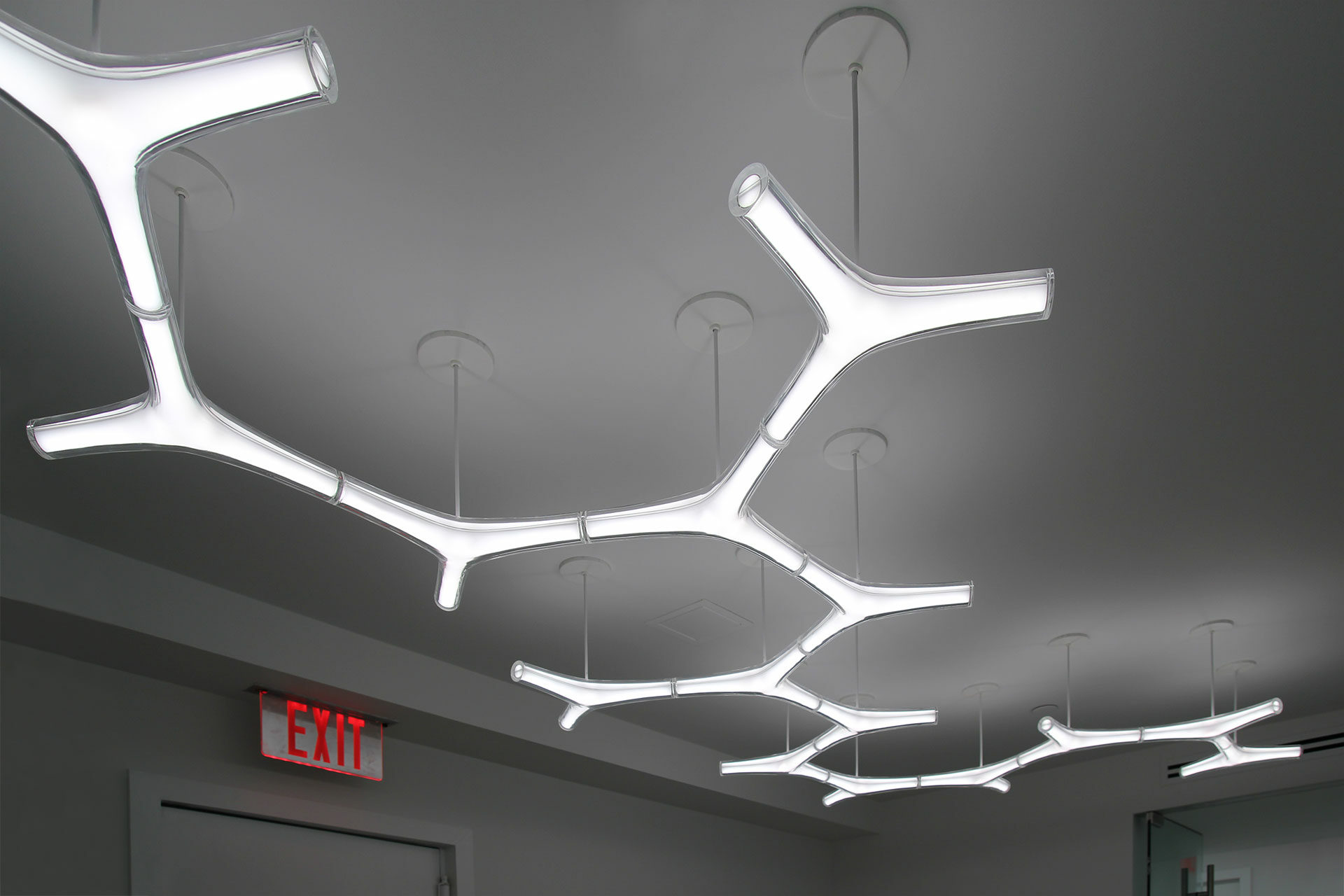

The compact Canopy01 supports anywhere from one to seven fixtures in any number of layouts. A series of knockouts along the edge combine with each fixture’s 20ft / 6m cord and mini ceiling hook to provide an embarrassment of options for cluster arrangements. Carbon clusters aggregate into virtually any shape and size to fit the needs of their environment.
DIMMING
- ELV
- TRIAC
- 0-10V
POWER
13W @ 12V DC CV
DOWNLOADS
↓ Cut Sheets + Install Guide
CERTIFICATION
- CE
- RoHS
- ETL Damp Location
