Palofirm Robata Concrete Linear Fire Pit

ROBATA CONCRETE LINEAR FIRE PIT

Palofirm Robata Concrete Linear Fire Pit

ROBATA CONCRETE LINEAR FIRE PIT

The ultimate modern linear fire pit – long and low, its horizontal proportions and ribbon of flame are designed to define social spaces.

Robata Concrete linear fire pit is cast in smooth, high-performance concrete and topped in stainless steel giving it a substantial aesthetic that will dramatically enhance any outdoor living area.

Robata Concrete is available in 1372 mm or 1829 mm lengths and has a 6 mm thick stainless steel top surface. When combined with the standard stainless steel cover, Robata becomes a modern outdoor coffee table.

Palofirm Robata Concrete Linear Fire Pit
Palofirm Robata Concrete Linear Fire Pit

Robata Linear Fire Pit comes complete with a choice of topping medium and a commercial-grade all-season cover. It is available in three architectural concrete colors.

INFORMATION

MATERIAL

- Concrete
- stainless steel

BRAND

Palofirm

PRODUCT TYPE

Fireplace

Palofirm Robata Concrete Linear Fire Pit

DIMENSIONS

- Robata 72 : 72” x 24” x 12.5”h (1829 x 610 x 318h)
- Robata 54 : 54” x 24” x 12.5”h (1372 x 610 x 318h)

ACCESSORIES

All-weather cover (included). Tempered glass screen

COLLECTION

Robata

USE

Outdoor

CERTIFICATIONS

- Switzerland – SVGW
- Australia – IAPMO GasMark (some models)
- UK & Europe : CE Certified under the Gas Appliance Regulation (EU) 2016/426
- North America (U.S.A. and Canada) : CSA / ANSI standards, listed by LabTest Certification

FUNCTION

Heating

THICKNESS

6 mm

BURNERS

- Robata 72 : 80.000 BTU/h | 25 kW
- Robata 54 : 60.000 BTU/h | 18 kW

WEIGHT

- Robata 72 : Up to 600 lbs (275 kg)
- Robata 54 : Up to 500 lbs (250 kg)

Palofirm Robata Concrete Linear Fire Pit

DETAIL

Robata’s burner systems are available in natural gas or propane versions with an electronic pilot with a flame sensor that can be connected to a line-voltage wall switch or wireless remote control. A manual version with a “match-lit” pilot is also available.

PROPORTIONS

Horizontal

AVAILABLE COLORS

Three

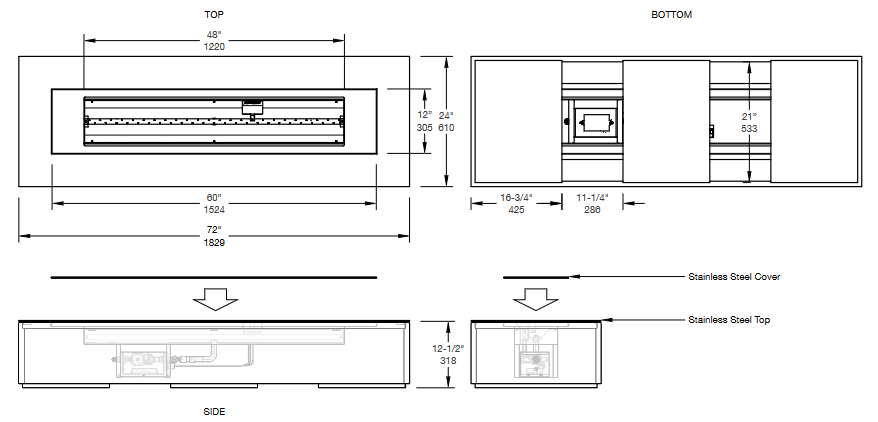

TECHNICAL DRAWINGS

DRAWINGS

Palofirm Robata Concrete Linear Fire Pit
Palofirm Robata Concrete Linear Fire Pit

COLORS & TOPPINGS

COLORS

- Ash + Stainless
- Nougat-stainless
- Charcoal + Stainless

Palofirm Robata Concrete Linear Fire Pit
Ash + Stainless
Palofirm Robata Concrete Linear Fire Pit
Nougat-stainless
Palofirm Robata Concrete Linear Fire Pit
Charcoal + Stainless

TOPPINGS

-D
ark Grey River Rock -Light Grey River Rock -Black Lava Pebble -Black Crushed Glass -Black Pebble Glass -Clear Crushed Glass

Palofirm Robata Concrete Linear Fire Pit
Dark Grey River Rock
Palofirm Robata Concrete Linear Fire Pit
Grey River Rock
Palofirm Robata Concrete Linear Fire Pit
Black Lava Pebble
Palofirm Robata Concrete Linear Fire Pit
Black Crushed Glass
Palofirm Robata Concrete Linear Fire Pit
Black Pebble Glass
Palofirm Robata Concrete Linear Fire Pit
Clear Crushed Glass
