WALLY OUTDOOR BENCHES
WALLY OUTDOOR BENCHES
A series of backless wood and steel benches designed to be mounted to the side of a lightweight GFRC concrete planter, a Wilshire Steel planter, cast-in-place wall, or any solid vertical surface; available in two styles in 4, 6, and 8-foot nominal lengths.
INFORMATION
PRODUCT TYPE
Outdoor Benches
BRAND
Tournesol
COLLECTION
Wally
PRODUCTION
Made in USA
USE
Outdoor
MATETIAL
- Woods
- Powder-coat Steel
SUPPORTS
Heavy gauge welded steel cantilever supports
VERSATILE
Versatile seating with optional mitered inside or outside corners
MODEL
- Wally A Style Bench
- Wally C Style Bench
AVAILABLE LENGTHS
Available in 4, 6, and 8 ft lengths
STYLES
Style A may be used as a counter as well as a bench
SURFACE
Bench wood seating surface is offered in two different styles
DESIGN
Designed to add seating to our planter collections, wall-hung Wally Benches are made from wood and steel and mount to our steel, aluminum, and GFRC Wilshire Planters and Kitsap Modular Planter Walls. Wally is available in two different styles. Style A is a lightweight five plank bench. Style C is a more robust bench made with 4x4 and 2x4 stock. Both styles are available in three standard lengths, 48”, 72”, 96”. A change in length is available as a custom order.
DIMENSIONS
A STYLE BENCH
| PRODUCT | LENGTH | WIDTH | SEATING CAPACITY | WEIGHT (LBS) |
|---|---|---|---|---|
| LY-A30-48 | 48" | 18" | 2 | 55-70 |
| LY-A30-72 | 72" | 18" | 3 | 75-95 |
| LY-A30-96 | 96" | 18" | 4 | 95-120 |
STYLE BENCH
| PRODUCT | LENGTH | WIDTH | SEATING CAPACITY | WEIGHT (LBS) |
|---|---|---|---|---|
| LY-C30-48 | 48" | 20" | 2 | 125 |
| LY-C30-72 | 72" | 20" | 3 | 175 |
| LY-C30-96 | 96" | 20" | 4 | 240 |
DETAILS

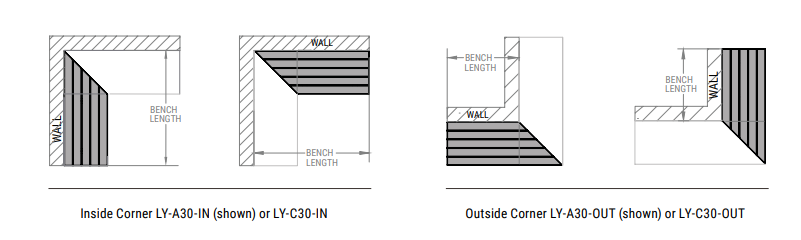

MITERED CORNER OPTIONS - STANDARD CORNER IS 90°
Standard mitered corners are available for mounting on inside or outside corners. Corners other than 90° are custom, check with your Advisor for details. Use the Application Sheet for Wally A or Wally C. Bench length describes the length of the bench that attaches to the wall, see drawing above.

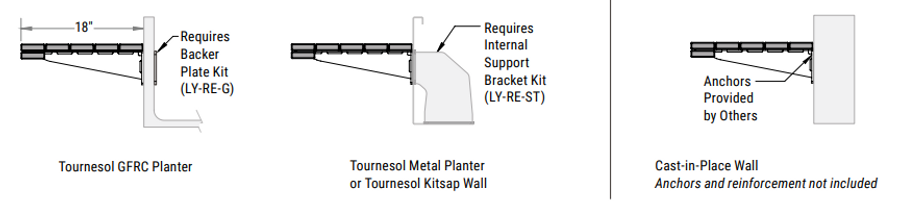

WALLY MOUNTING APPLICATIONS
Wally benches used with Tournesol GFRC lightweight concrete, aluminum, or steel planters, need reinforcement behind planter walls. Wally benches can be added to other structures such as walls and cast-in-place planters, but anchoring and reinforcement are not included and should be provided as needed by others. See diagrams. Planters supporting Wally benches may need to be anchored depending on size. Discuss with your Advisor. Wally benches can be mounted at any height, but for seating we recommend 18”. Wally style A can also be used as a counter by mounting at 36”, or at 42” for bar height. Optional skate deterrents may be installed in the field as required. Please contact your Advisor for details.
FINISHES
WOODS
POWDER-COAT
