Rbw Hoist Sconce Wall Lamp Collection
HOIST SCONCE WALL LAMP COLLECTION
HOIST SCONCE WALL LAMP COLLECTION

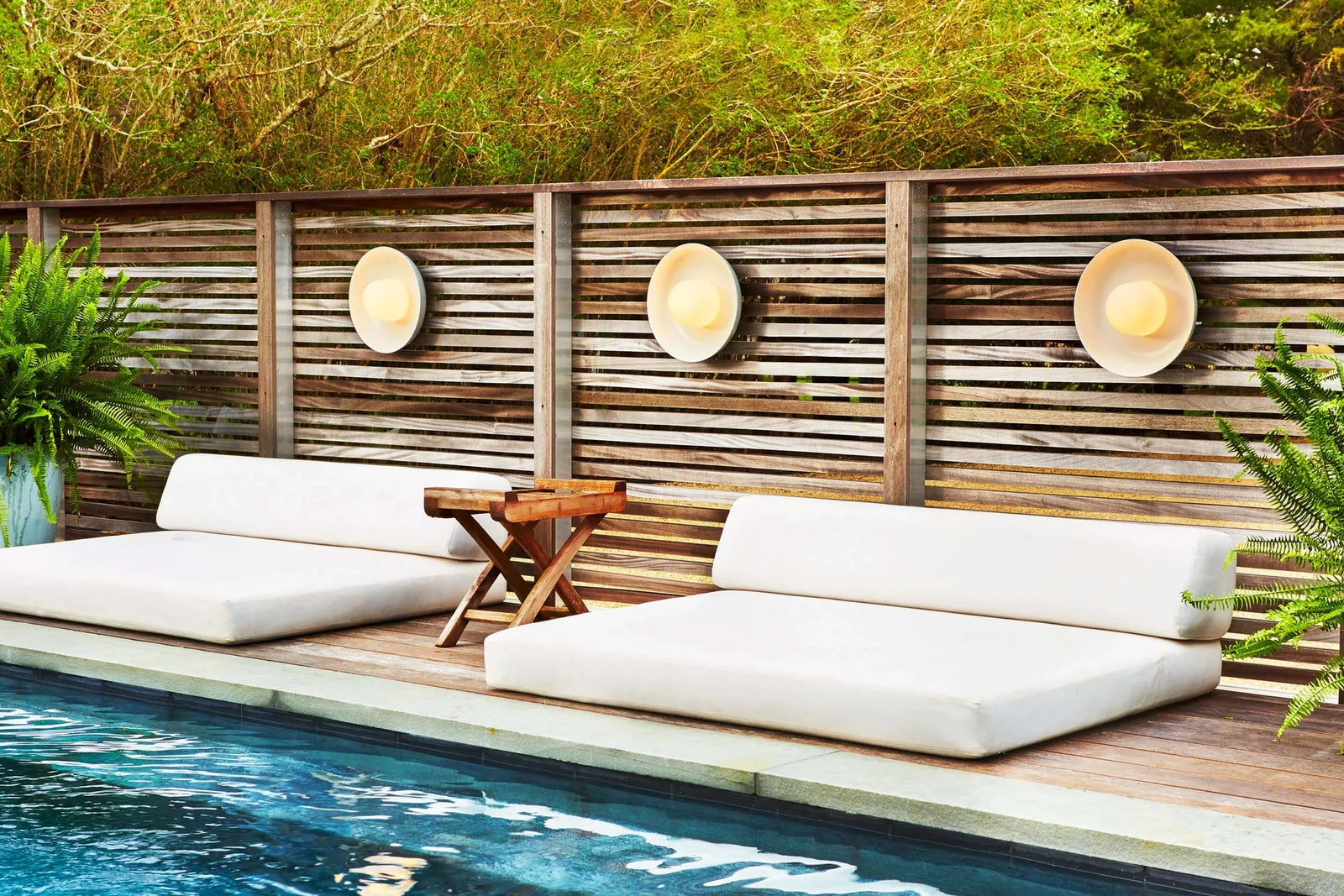

Minimalist, and available in a colorful variety of finishes, Hoist goes just about anywhere: indoors or outdoors, as a wall-mount or a pendant. With a range of sizes for its circular shade, make a statement large or small.
INFORMATION
MATERIAL
- Spun Steel
- Opal Blown Glas
BARND
RBW
PRODUCTION
Wall Lamp
PRODUCT WEIGHT
1~4.5 lbs / 0.5~2.1 kg depends on shade & globe variant
PERFORMANCE
-Delivered Lumens 658 lm -Stats above are based on Large Diffuser (AC Input 2700K)
IP RATING
IP 65
USE
Indoor & Outdoor
POWER CONSUMPTION
9W
LUMINOUS EFFICACY
74.9 lm/W
LED LIFESPAN
50k hours
INPUT VOLTAGE
120 V
PRODUCT CODE
HS-21-B-PC24-27-10_TRIAC_120V-IP65
SHADE COLORS
- Cream White
- Matte Black
- Blue Gloss
- Vermilion
CERTIFICATION
- UL Listed
- ADA Compliant
- Suitable for Wet Locations
DOWNLOADS
↓ DWG
↓ Photometry
↓ Install Instructions
COLOR TEMPERATURE
2700 K (Warm White)
PRODUCTION
Made in New York

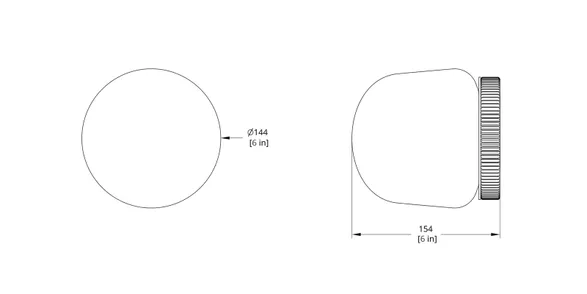

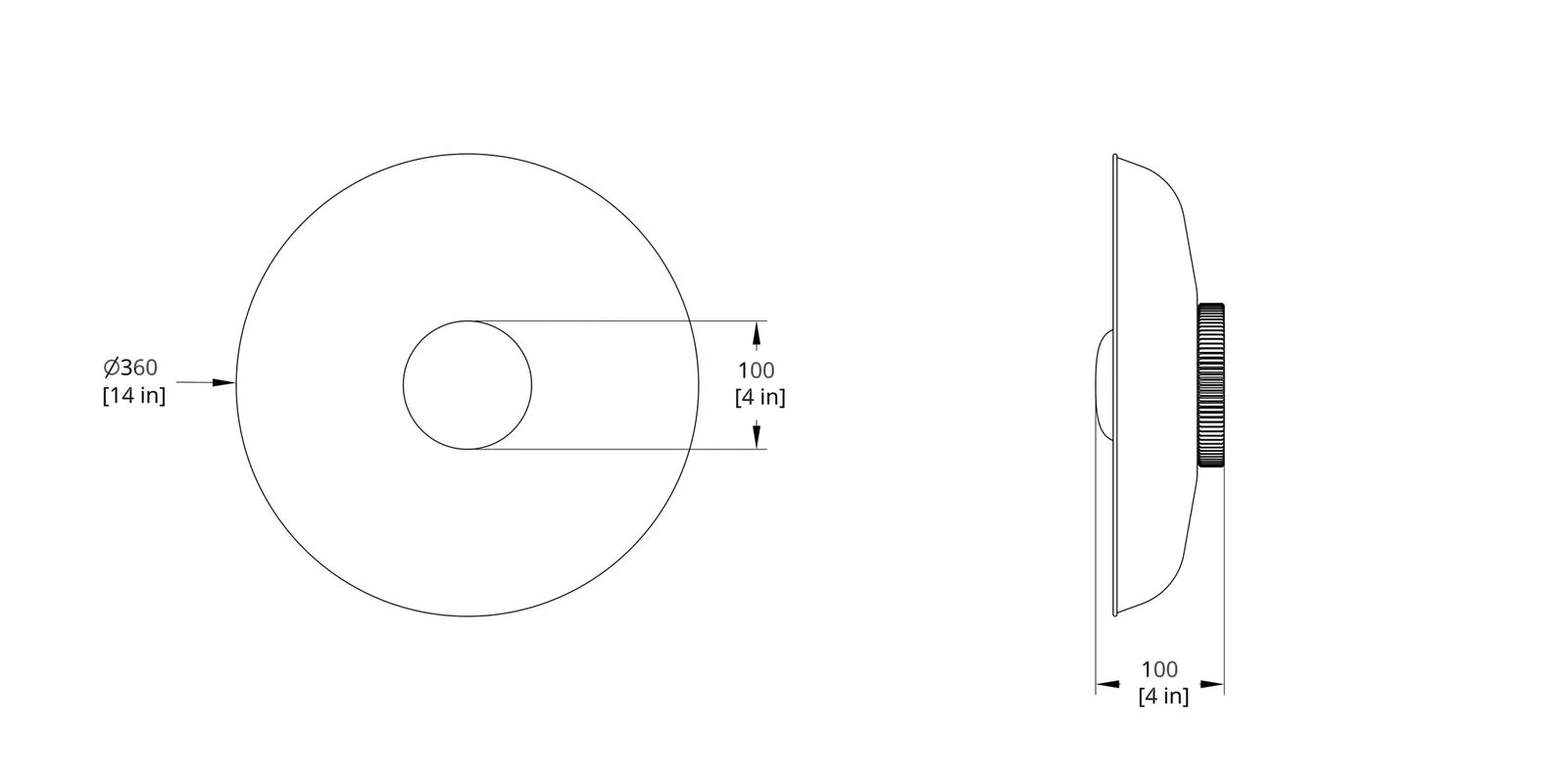

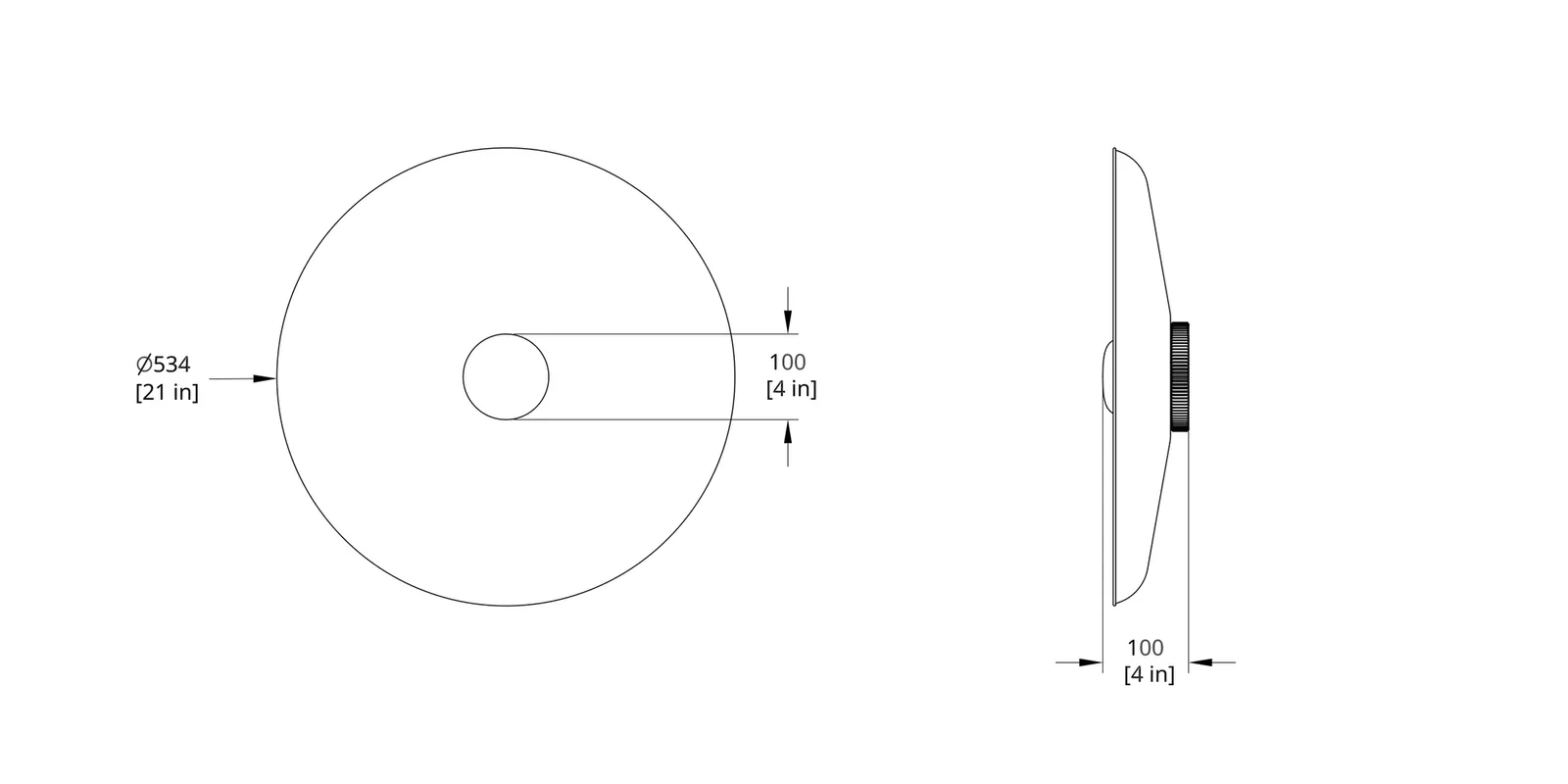

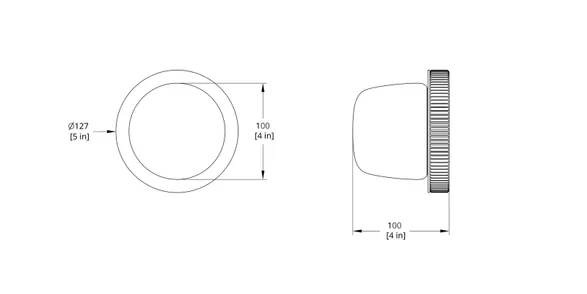

TECHNICAL DRAWINGS
HS-21-A HOIST SCONCE SMALL DIFFUSER DIMENSION
HS-21-B HOIST SCONCE LARGE DIFFUSER DIMENSION
HS-14-A HOIST SCONCE SMALL DIFFUSER DIMENSION
HS-14-B HOIST SCONCE LARGE DIFFUSER DIMENSION
HS-8-A HOIST SCONCE SMALL DIFFUSER DIMENSION
HS-0-A HOIST SCONCE BARE SMALL DIFFUSER DIMENSION
HS-0-B HOIST SCONCE BARE LARGE DIFFUSER DIMENSION
DIMENSIONS
DIMESNIONS (BARE SHADE)
- Depth : 4 in
- Diameter : 5 in
DIMESNIONS (SMALL SHADE)
- Depth : 4 in
- Diameter : 8 in
DIMESNIONS (MEDIUM SHADE)
- Depth : 4 in
- Diameter : 14 in
DIMESNIONS (LARGE SHADE)
- Depth : 4 in
- Diameter : 21 in
PHOTOMETRY
POLAR PLOTS

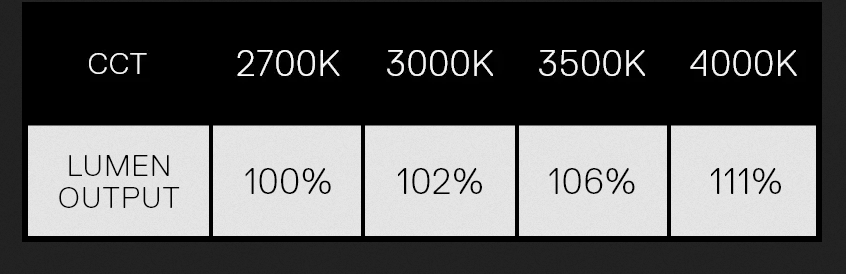

LUMEN OUTPUT / CCT
