CRISP SCONCE WALL LAMP COLLECTION
CRISP SCONCE WALL LAMP COLLECTION

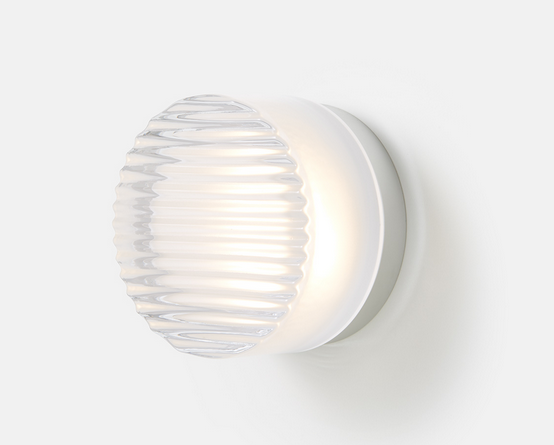

Crisp’s simple, iconic design is suitable for both wall and ceiling installation, indoors and outdoors.
The solid glass shade, offered in a range of finishes, is distinguished by its scored surface, adding a subtle textural detail to the environment.
INFORMATION
BARND
RBW
PRODUCTION
Wall Lamp
PRODUCT WEIGHT
3.5 lbs (2 kg)
DIMENSIONAL WEIGHT
3 lbs
PRODUCT CODE
CR-WS-S10-AA01-27-10_TRIAC_120V-IP20
CERTIFICATION
- UL Listed
- ADA Compliant
- Suitable for Wet Locations
- Suitable for Damp Locations
- Declare (LBC Red List Approved)
IP RATING
IP20 & IP65
USE
Indoor & Outdoor
COLOR TEMPERATURE
- 2700 K (Warm White)
- 3000 K (Soft White)
- 3500 K (Neutral White)
LED LIFESPAN
50k hours
POWER CONSUMPTION
7.5W
DOWNLOADS
↓ DWG
↓ Photometry
↓ Install Instructions
DIMENSIONS
- Depth : 3.3 in
- Diameter : 5 in
PERFORMANCE
- 550 lm (Frosted)
- 445 lm (White)
- 106 lm (Chrome)
- 52 lm (Copper)
CRI
90
PRODUCTION
Made in New York
LUMINOUS EFFICACY
- 71.7 lm/W (Frosted)
- 58.1 lm/W (White)
- 13.9 lm/W (Chrome)
- 6.9 lm/W (Copper)
MATERIAL
- Aluminium
- Cast Solid Glass
INPUT VOLTAGE
Above stats are measured based on AC Input 2700K fixture.
COLLECTION NOTES
Luminaire lumens listed are for AC input TRIAC control. DC input performance please see photometry downloads. Each form of cast glass is unique. We review each to ensure they conform to ASTM standards, which includes the presence of small air bubbles within the glass.
FINISHES
BACKPLATE FINISH
- Natural Anodized
- Black Anodized
GLASS FINISHES
-White Interior -Frosted Interior -Chrome Exterior -Copper Exterior
PHOTOMETRY
POLAR PLOTS
LUMEN OUTPUT / CCT
