Rbw AllSew Pendant Lamp
AllSew Pendant Lamp
ALLSEW PENDANT LAMP
ALP-W-36-PC20-CO-27-1_TRIAC_120V
Allsew, our modular, scalable pendant inspired by the luminosity of lanterns, and the lightweight, collapsible efficiency of kites.
INFORMATION
BARND
RBW
PRODUCT TYPE
Pendant Lamp
PATENT FILE NUMBER
D908,932
PRODUCTION
Made in United States
DIMENSIONS
36" Shade: 36 L x 36 W x 30 in H | 48": Shade 48 L x 48 W x 30 in H. Due to the nature of the fabric material, there might be some slight tolerance (~1") between the measurement here and actual product.
DIMMING
- 1% Dimming
- 0.1% Dimming
MOUNTING
- Cord
- Stem
INPUT
- 120V Input
- Universal Input
CERTIFICATION
- UL Listed
- Suitable for Damp Locations
CONTROL
- 0-10V
- Forward Phase Control
COLLECTION
AllSew
DIMENSIONAL WEIGHT
15 lbs
MATERIAL
- Sailcloth
- Fiberglass
- Aluminum
LED LIFESPAN
50k hours
CRI
90 CRI
LUMINOUS AFFICACY
96 lm/W
POWER CONSUMPTION
39W
DELIVERED LUMENS
- 36" Shade : 3660 lm
- 48" Shade : 3731 Lumens
FIXTURE
Above stats are measured based on 2700K fixture.
COLOR TEMPERATURE
- 2700 k (Warm White)
- 3000 k (Soft White )
- 3500 k (Neutral White)
AVAILABLE SIZES
36" & 48"
FRAME CONNECTOR FINISH
Matte White
ENVIRONMENT
Indoor
TYPE OF LIGHTING
LED
SUSPENSION
- White 5" square deep canopy.
- Standard 72" white cord or 28" white stem.
- Standard Hang Height 66" for cord or 28" for stem.
- Minimum Hang Height 6" for cord or 14" for stem.
- Cord is field trimmable, stem is not field trimmable.
- Cord extension available (up to 150"), stem extension available.
PHOTOMETRY
POLAR PLOTS

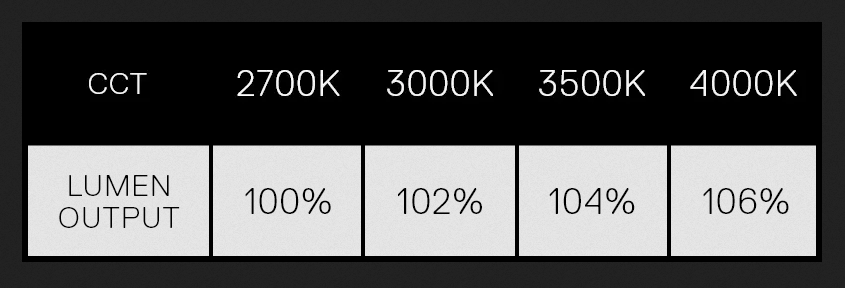

LUMEN OUTPUT / CCT
