AKOYA PENDANT LAMP

AK-M16-PC25-27-10_TRIAC_120V

After revisiting one of its best-selling pendants, RBW presents the new and improved Akoya.

INFORMATION

BARND

RBW

PRODUCT TYPE

Pendant Lamp

PRODUCTION

Made in United States

Rbw Akoya Pendant Lamp

DIMMING

- 1% Dimming
- 10% Dimming
- 0.1% Dimming

COLLECTION

Akoya

LED LIFESPAN

50k hours

COLOR TEMPERATURE

- 2700 k (Warm White)
- 3000 k (Soft White )
- 3500 k (Natural White)

Rbw Akoya Pendant Lamp

TECHNICAL DRAWING

DIMENSIONS(SHADE 16")

- Height : 9"
- Diameter : 16"

DIMENSIONS(SHADE 21")

- Height : 12"
- Diameter : 22"

CRI

90 CRI

ENVIRONMENT

Indoor

DETAIL

The original hand-blown, opal glass bulb now boasts increased technical capabilities, as well as more refined perforations to its sheer, spun-aluminum shade. With Akoya’s shades now fabricated in North America, we’ve also cut down our carbon footprint by manufacturing closer to home.

Rbw Akoya Pendant Lamp

CONTROL

- 0-10V
- Forward Phase Control

CERTIFICATION

- UL Listed
- Suitable for Damp Locations

LUMINOUS EFFICACY

50.5 lm/W

POWER CONSUMPTION

8.7 W

Rbw Akoya Pendant Lamp

WEIGHT

10 lbs ( 4.5 kg)

PATENT FILE NUMBER

Patent Pending

OPTIONS FOR CUSTOMIZATION

- Custom Anodized
- Custom Powder Coat

FIXTURE

Above stats are measured based on 2700K fixture.

MATERIAL

- Perforated metal
- Hand blown opal glass

INPUT

- 120V Input
- Universal Input

DIMENSIONAL WEIGHT

-  16" Shade: 8 lbs
- 22" Shade: 9 lbs

SUSPENSION

- Field trimmable.
- Minimum Hang Height 6" for cord or stem.
- Standard Hang Height 66" for cord or 28" for stem.
- Cord extension available (up to 150"), stem extension available.
- White 5" round flat canopy (Contact your sales rep for more info).
- Standard 72" white cord (paired with 16" shade), or 28" white stem (paired with 22" shade).

DELIVERED LUMENS

440 lm

WARRANTY

5 Years

PHOTOMETRY

Rbw Akoya Pendant Lamp

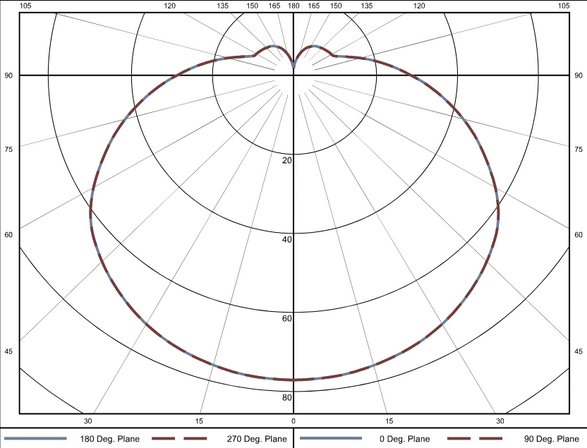

POLAR PLOTS

Akoya 16"

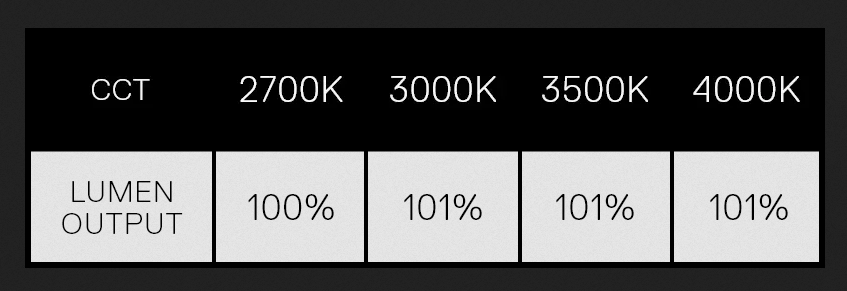

LUMEN OUTPUT / CCT

Rbw Akoya Pendant Lamp
Rbw Akoya Pendant Lamp

FINISHes

SHADE FINISHES

Rbw Akoya Pendant Lamp
Matte White
Rbw Akoya Pendant Lamp
Silk Grey
Rbw Akoya Pendant Lamp
Ochre Yellow
Rbw Akoya Pendant Lamp

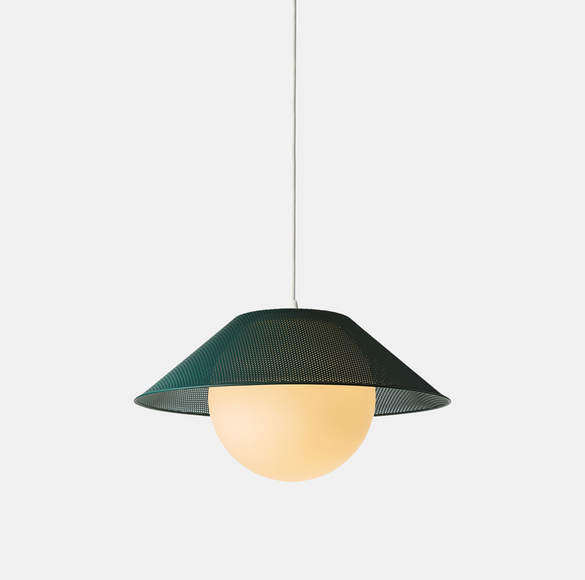

Emerald
Rbw Akoya Pendant Lamp
Matte Black
Rbw Akoya Pendant Lamp

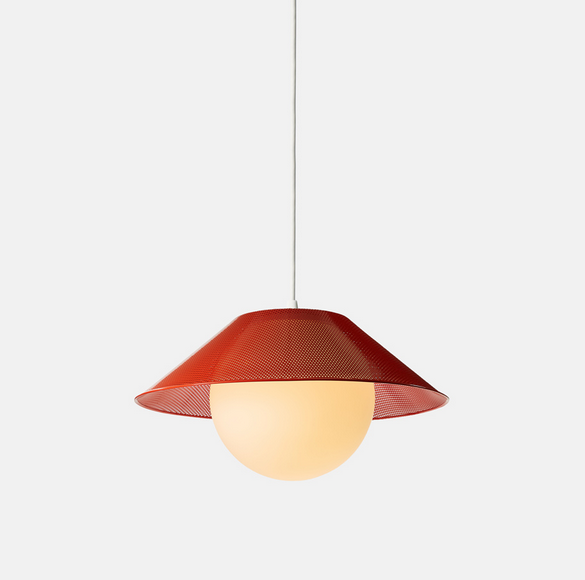

Vermilion
