Planika Square Outdoor Fireplace
SQUARE OUTDOOR FIREPLACE
SQUARE OUTDOOR FIREPLACE

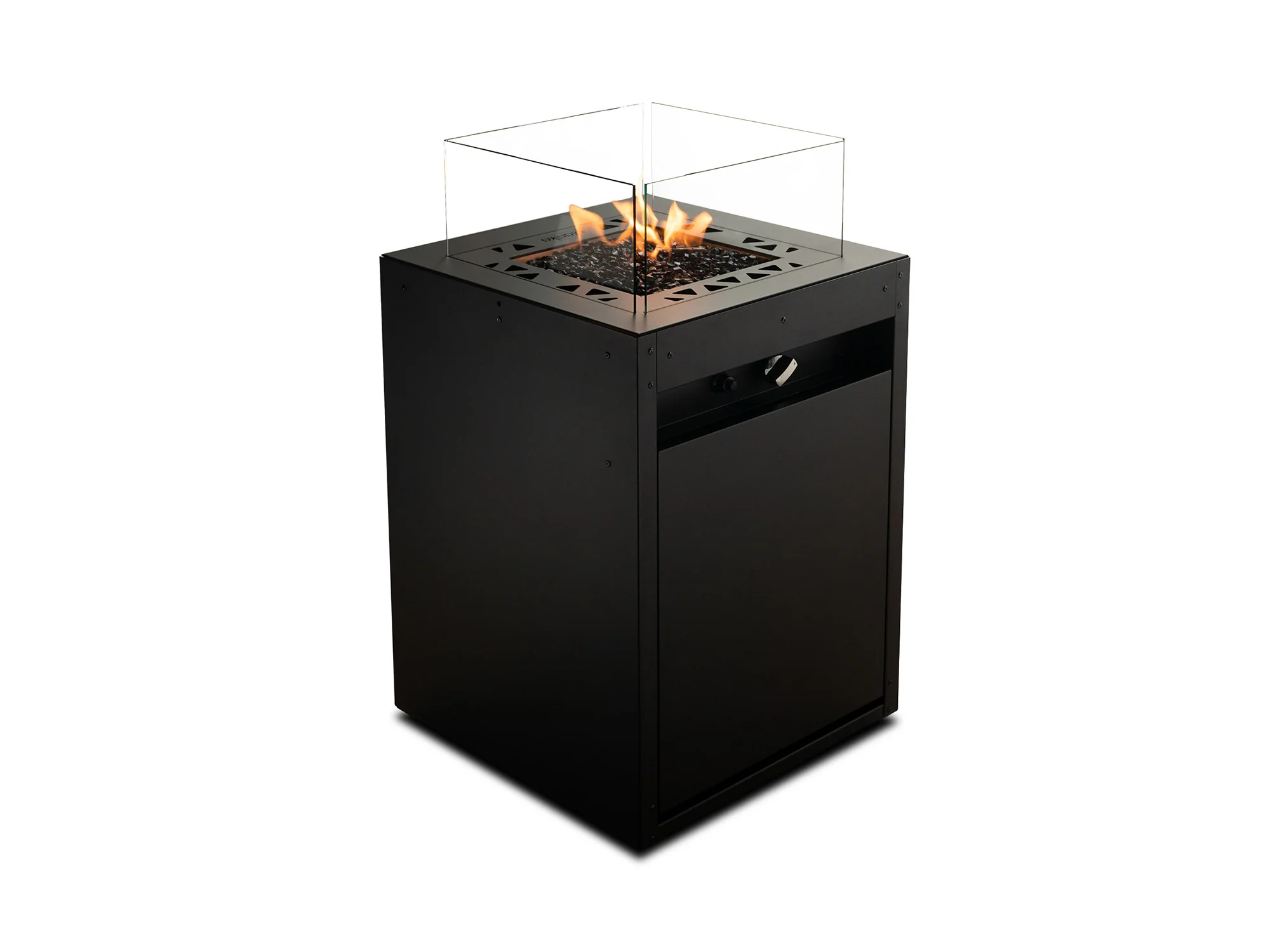

Freestanding gas patio heater, modern fireplace, black, 48x80x48 cm.
Square is a freestanding gas fireplace for the garden. Elegant, efficient, and enviable. Its minimalist design ensures it always looks stunning. Powered by LPG, it remains fully portable, allowing you to rearrange your patio as often as you like.
The Square gas fireplace was created with flexibility in mind. Its design possibilities are endless. However, its greatest advantage lies within. Thanks to the highest-quality materials, it will withstand almost anything nature throws at it.
INFORMATION
BRAND
Planika
PRODUCT TYPE
Outdoor Fireplace
FLAME HEIGHT ADJUSTMENT
Yes
GAS CONSUMPTIONE
Max. 0.65 Kg/h
MATERIALS
- Tempered Glass
- Powder-coated Galvanized Steel
COLLECTION
Rio
FLUE
Not Required
HEATING POWER
Max. 10.0 kW
PRODUCTION
Made in Poland
BURNING TIME
Max. 55 h (11 kg gas cylinder)
POWER SUPPLY
Control panel 1 x AAA battery

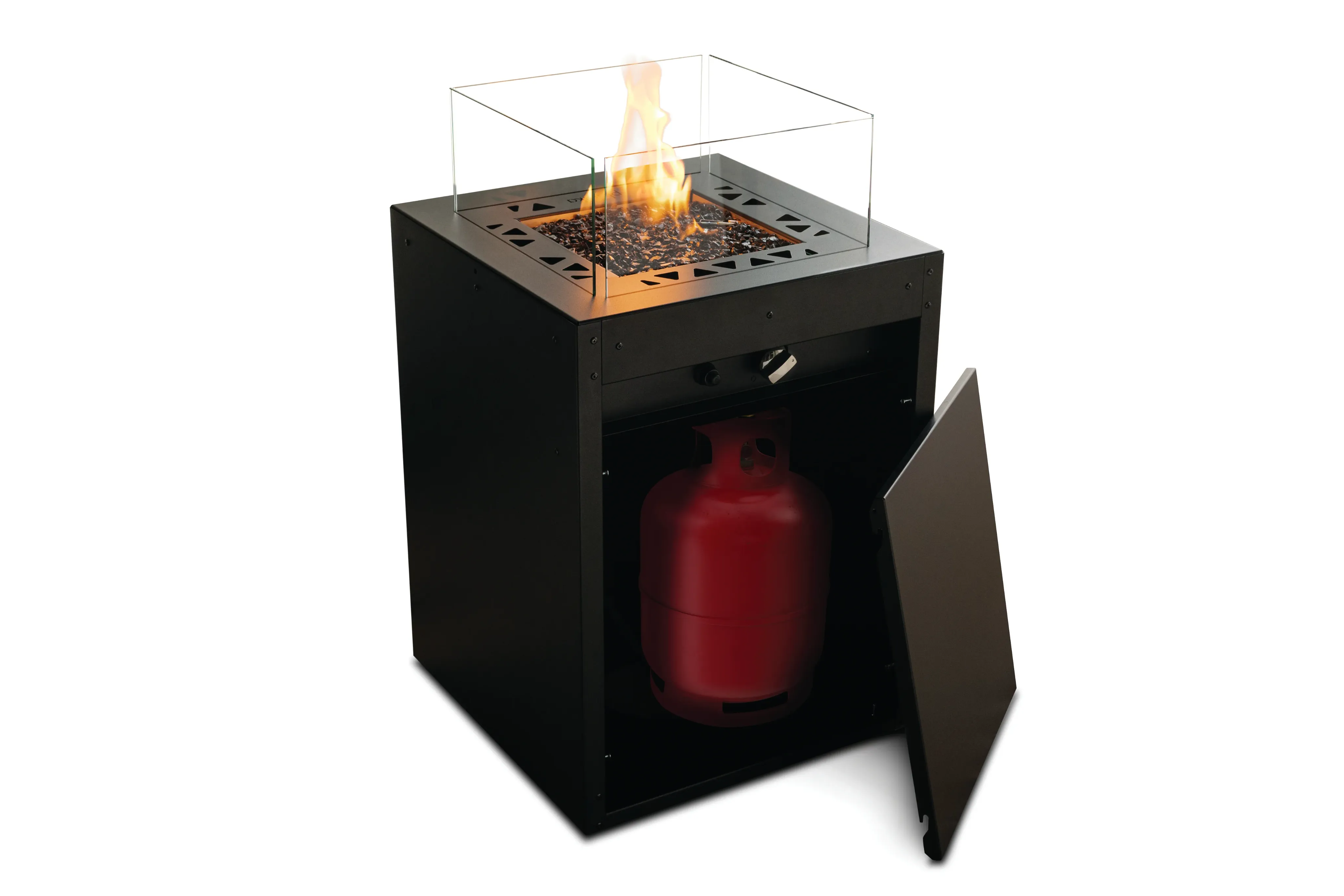

GAS CYLINDER COMPARTMENT
At the base of the fireplace there is space for a gas cylinder up to 5 kg.
FLUE
LPG
TOP
Optional table top
DOWNLOADS
↓ 2D. dwg
↓ 3D. Obj
↓ Manual
↓ Technical Data Sheet
EASY INSTALLATION
Made of galvanized steel and the best materials, the square is extremely durable and resistant to the harshest conditions.

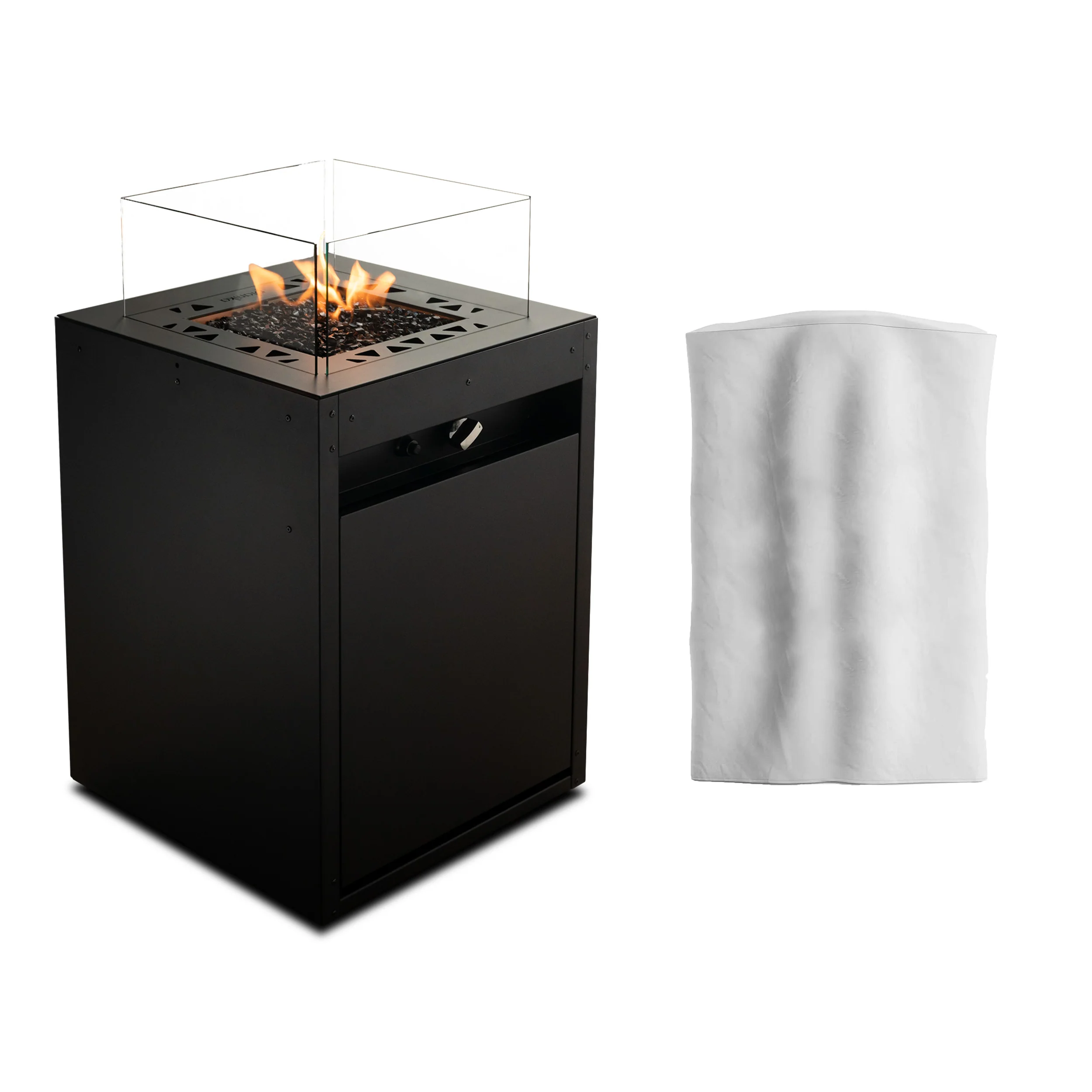

COVER
Free waterproof cover
WEIGHT
22.0 kg

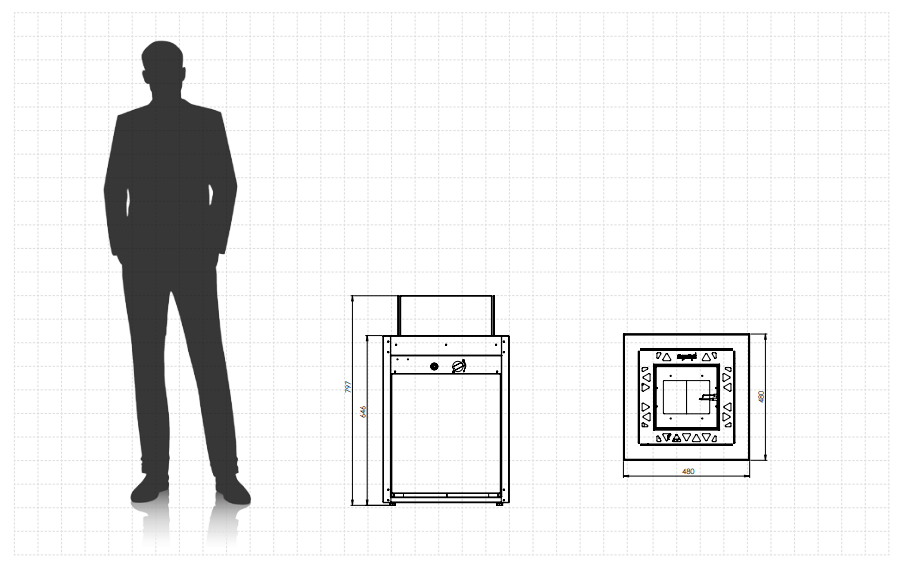

DINMENSIONS
- Width/Depth : 480 mm
- Overall height : 777 mm
- Body height (without top section) : 640 mm
CONTENTS OF THE SHIPMENT
- 4x adjustable legs
- 1x box of decorative stones
- 1x pressure regulator - installed
- 1x AAA batteries (located under the ignition button)
- 1x complete Rio gas fireplace
- 1x 4 meter rubber gas hose - installed
- 1x assembly instructions and user manual
CYLINDER
Hidden gas cylinder
DECORATIVE ACCESSORIES
Black Glass Gravel
SHIELD
Tempered glass fire shield
APPLICATION
For outdoor use only
COATING
A special powder coating, stainless steel core, and modern valve system ensure unparalleled durability.
FULLY PORTABLE
With the gas cylinder hidden in the base, the square fireplace is a convenient, portable fireplace that can be placed anywhere you like.
TOTAL GAS HOSE LENGTH
4 Meters
SYSTEM
Safety sensor system
RUST-PROOF CASING
Made of galvanized steel and best materials, Square is extremely durable and resistant to the most harsh conditions.
OPTIONAL TABLETOP
Square comes with an optional table around it. The tabletop can be easli connected or removed at any time so you can fit the fireplace to any setting.
GAS BURNER TIME
The most efficient gas burner available on the market. Maximum gas consumption is 0.5–0.65 kg/h, providing up to 55 hours of burn time (11 kg cylinder).

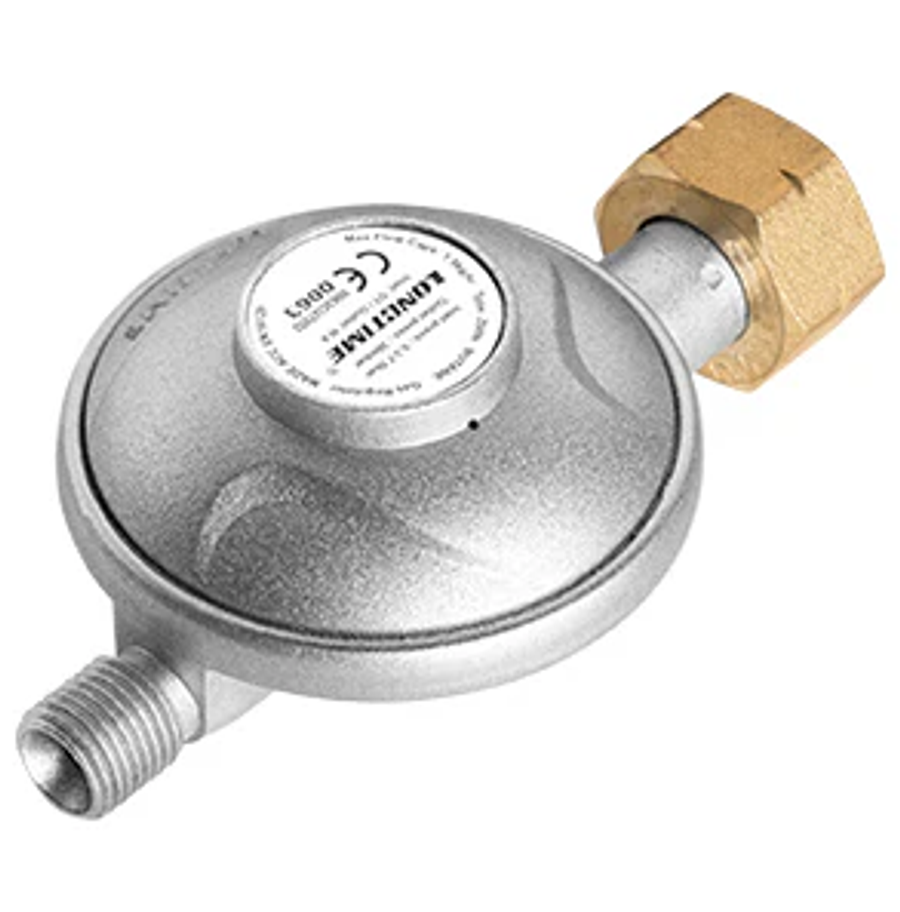

GAS REDUCER
GAS REDUCER
All Planika gas-powered fireplaces are equipped with a factory-installed gas regulator. However, each market has different types of gas cylinders, which require different regulators. Therefore, make sure you choose the correct product variant with a regulator designed for your market.

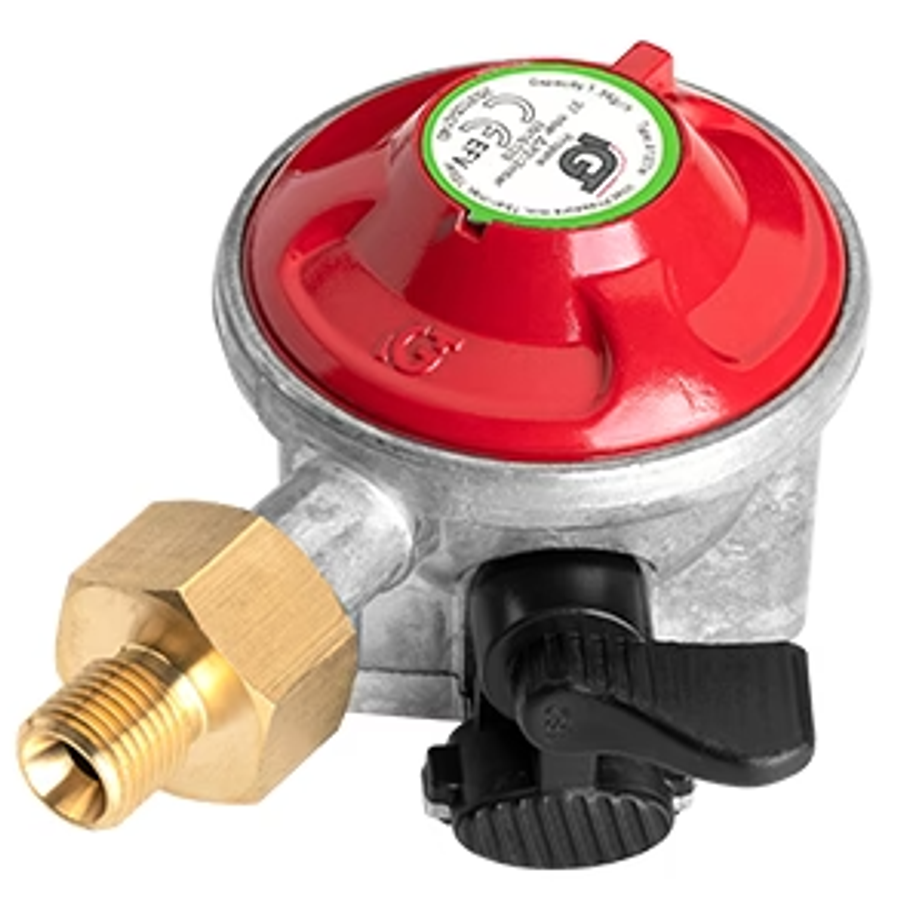

37 MBAR CLAMP
- Country of use : IT, GR
- Connection type : Twist On
- Inlet diameter : 20 mm
- Outlet : G1/4"-LH
37 MBAR CLAMP
- Country of use : FR, UK, IE
- Connection type : Clip On
- Inlet diameter - 27 mm
- Outlet - G1/4"-LH

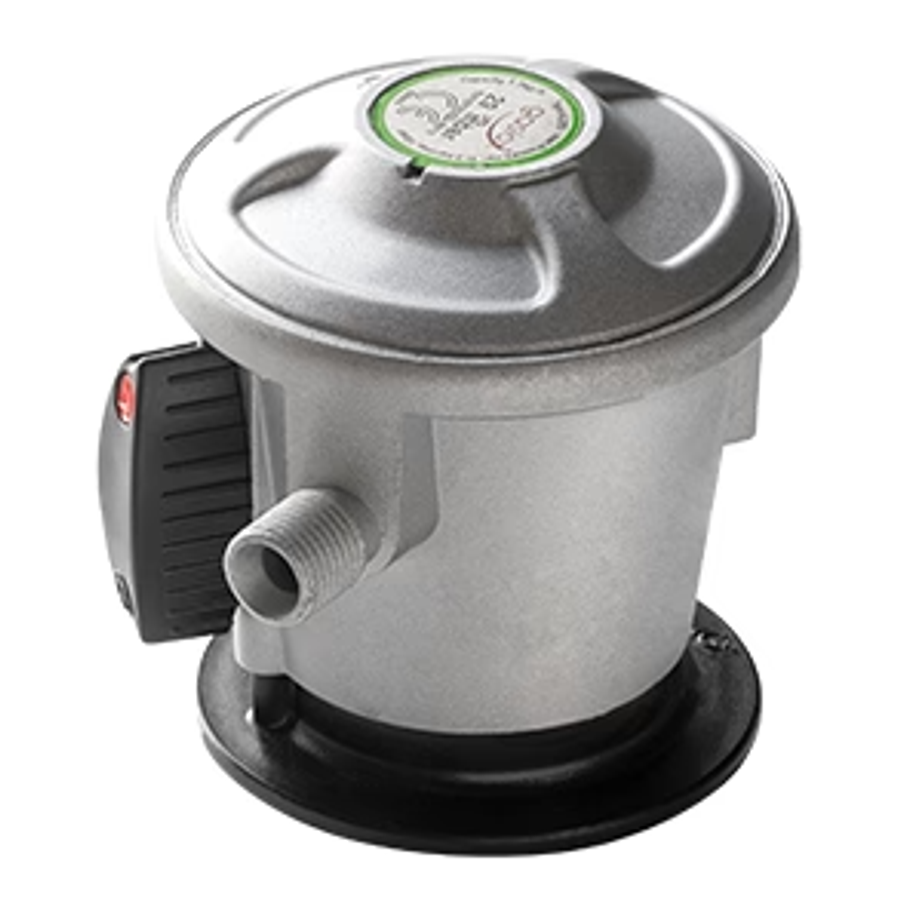

29 MBAR CLIP-ON
- Outlet / : G1/4"-LH
- Connection type : Clip On
- Inlet diameter : 35 mm
- Country of use : ES, DK, NO, FI, EE, PT, CY

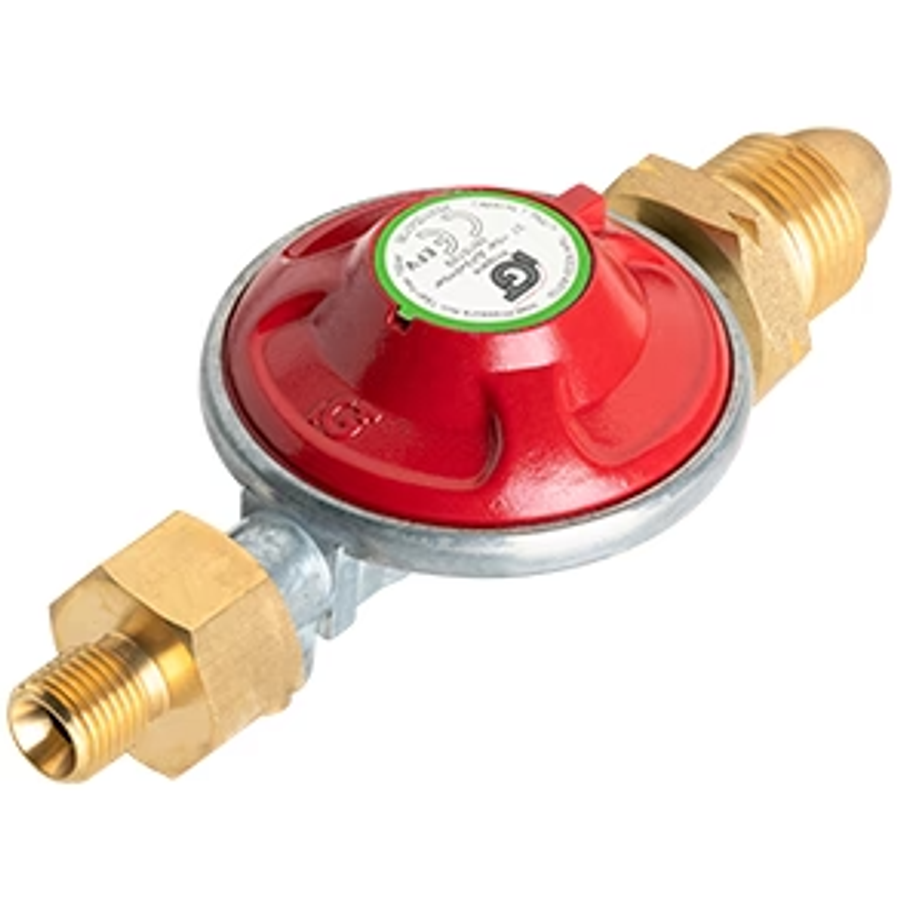

37 MBAR EU SCREW-ON
- Outlet /; G1/4"-LH
- Connection type : Twist On
- Inlet diameter : 23 mm
- Country of use : DE, PL, NL, BE, CH, AT, CZ, SK, LT, LV, HR, UA, RO, SI, BiH, RS, AL, HU
