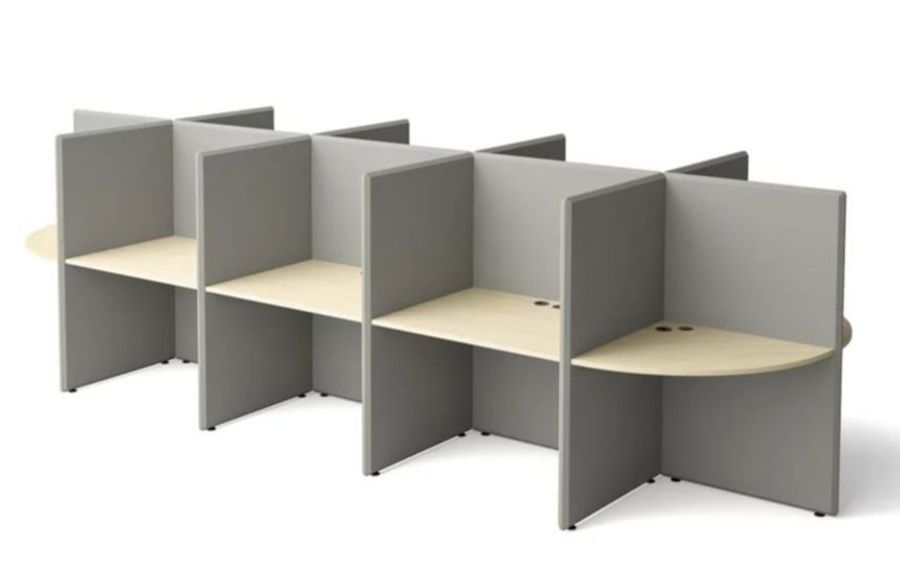

Glimakra Arrow Work Booth
ARROW WORK BOOTH
ARROW WORK BOOTH
Designed by Team Glimakra
Arrow Work booth is an advanced and highly efficient product, developed to offer outstanding sound-absorbing properties.
The construction is sturdy and opens up possibilities for innovative solutions in connections and configuration. The wooden frame is finger-jointed with a pointed edge profile and round corners that are covered with fabric and piping.
Arrow connects with hidden connectors and is offered with a fixed tabletop or a tabletop with an electric stand. The booths are available in C, S and H configurations as well as quarter-circle and stand on black conical leveling feet.
information
UPHOLSTERY
Furniture nailed with fabric on both sides. Circular and highly durable fabrics can be selected to improve the product’s sustainability. The nailing is concealed by a fabric piping.
BRAND
Glimakra
PRODUCT TYPE
Work Booth
TABLETOP 22 MM
Ash, laminate, or linoleum with cable feed through and Powerdot.
ASSEMBLY
Connected with concealed keyhole brackets. Delivered unassembled.
INTEGRATED TOOL BAR
Glimma or Uniform on the front screen. Refer to the price list under Accessories for current accessories
CABLE FEED THROUGH IN THE SCREEN
Ø60 mm hole in front screens and between workstations under the electric stand or the fixed table tops.
TABLE TOP
990x800 mm
TABLE HEIGHT
610-1260 mm
RECYCLABLE
100% Recyclable Materials
PRODUCTION
Made in Sweden
DESIGNER
Team Glimakra
FILLINGS
- PureSound E for minimum weight.
- Setex PC 135 for maximum sound absorption
CLIMATE IMPACT
The choice of finger-jointed wood in the frame maximizes the utilization of wood material from the forest compared to solid wood alone. The filling PC Setex consists of 100% postconsumer recycled material. Hemp piping consists of 100% plant based material. Choosing circular or recycled fabrics minimizes the climate impact.
SPECIFICATION TEXT
Arrow Work Booth C 1104x877x1400mm. Filling PC Setex 50. Fabric Blazer CUZ 18, Hemp piping. Black electric stand, Table top 990x800 mm ash 30. Concealed fittings integrated into the pointed profile. Black cable feed through and Powerdot Compact 62 with 1 type F power outlet, 1 USB-C charger 30W (black).
OPTIONS FOR HEIGHT ADJUSTABLE TABL - TOP
Electric stand: DL11 Standard black, 1 pair including control box. Straight 980, 1200, 1400, 1600mm x 800mm Arrow Q (quartz disc) r800mm. Externally-mounted black electric stand with round legs. Discreet holders that harmonize with the round shapes.
PIPING
The wooden frame is finger-jointed with a pointed edge profile and rounded corners that are covered with fabric and piping.
FRAME
Finger-jointed wooden frame measuring 50x65 mm with a pointed edge profile and rounded corners, covered in fabric and piping. The workstations are connected with concealed fittings. The booth can have a fixed tabletop or a tabletop with an electric stand. Configurable in C-, S-, and H-formations, as well as quarter-circle configurations (Q). The booths stand on black conical leveling feet.
OPTIONS FOR FIXED TABLE-TOP
- Fixed table-top : Straight 1000, 1220, 1420, 1620mm x 800mm Arrow Q (quartz disc) r800mm Work surface in ash, laminate, or linoleum. Two Ø60 mm holes for cable feed through and Powerdot.
- Height : 750mm or 1000mm. Ø60mm cable feed through in black between workstations and in table tops, can be increased upon request. Powerdot Compact 62 with 1 type F power outlet, 1 USB-C charger 30W (black).
CERTIFICATES
Acoustics: Measurements according to ISO 354. Evaluation according to the standard for individual objects SS 25269. (19-738-R1, date 2020-01-27. Akustikverkstan, a laboratory accredited by Swedac). The screens have an N10 value of 7.7 at 1 m2 . The total absorption of the screens gives a C-formation N10 = 2.3. Glimakra of Sweden AB is certified according to ISO 9001:2015 and ISO 14001:2015.

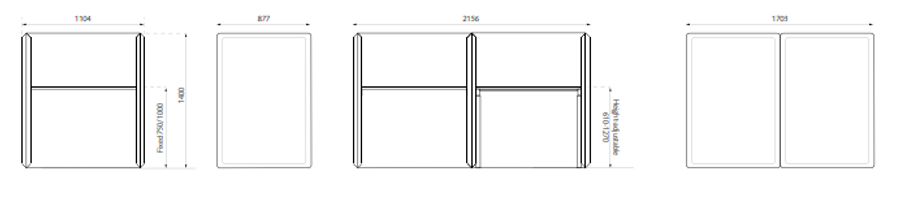

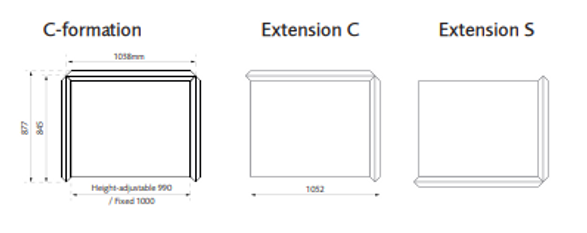

DIMENSIONS

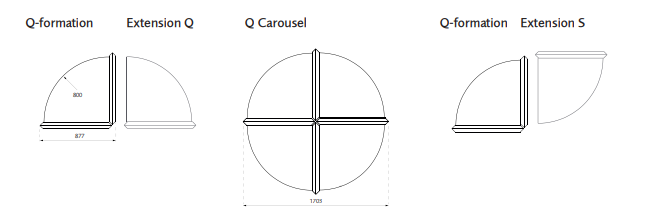

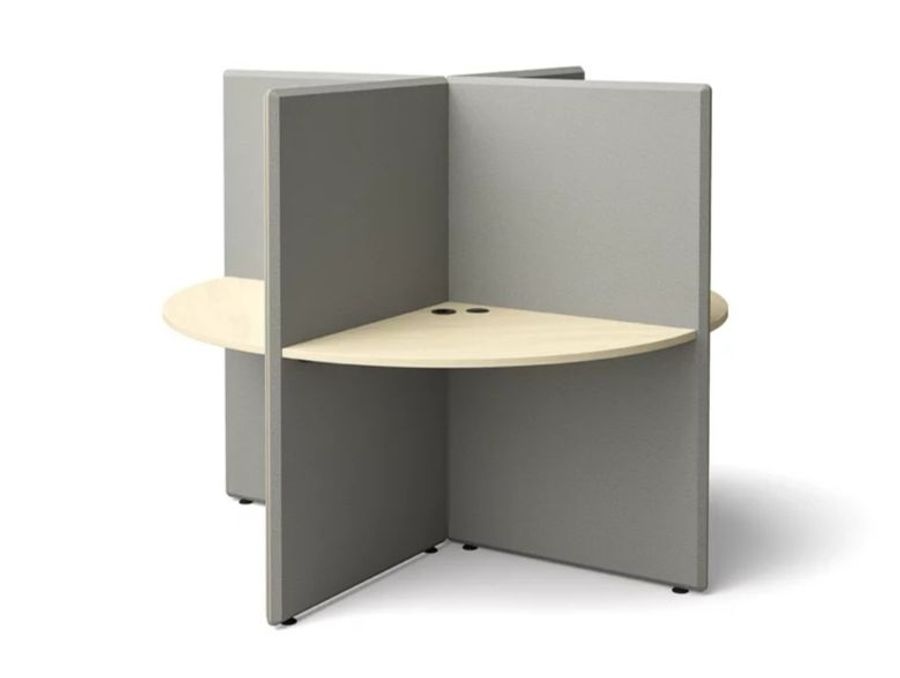

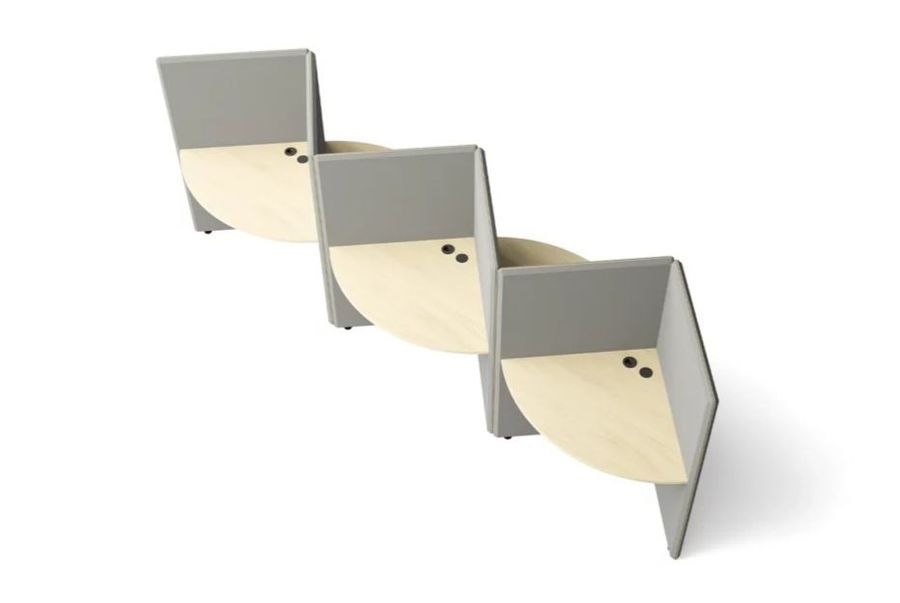

QUARTER FORMATIONS
WORK BOOTH
