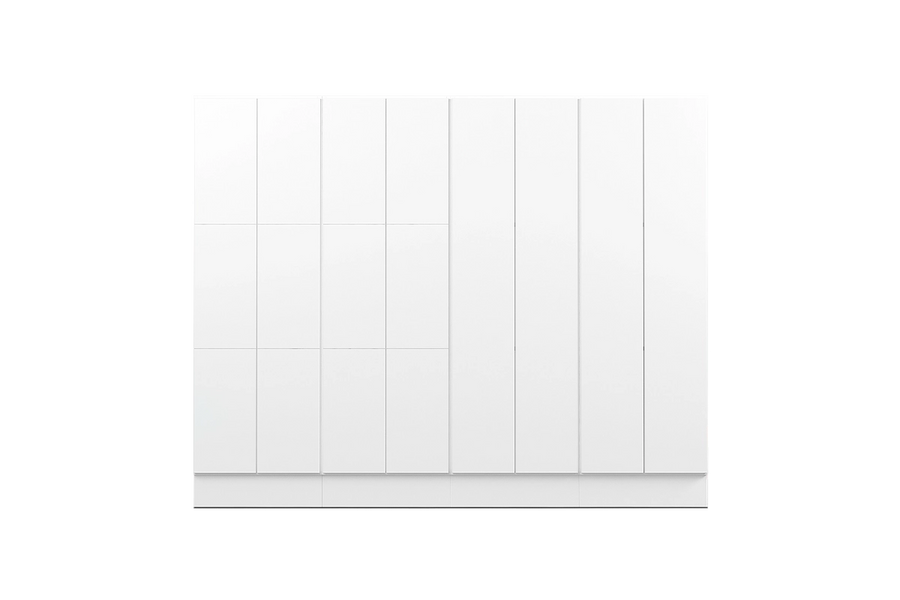

Trece Wardrobe
WARDROBE
WARDROBE

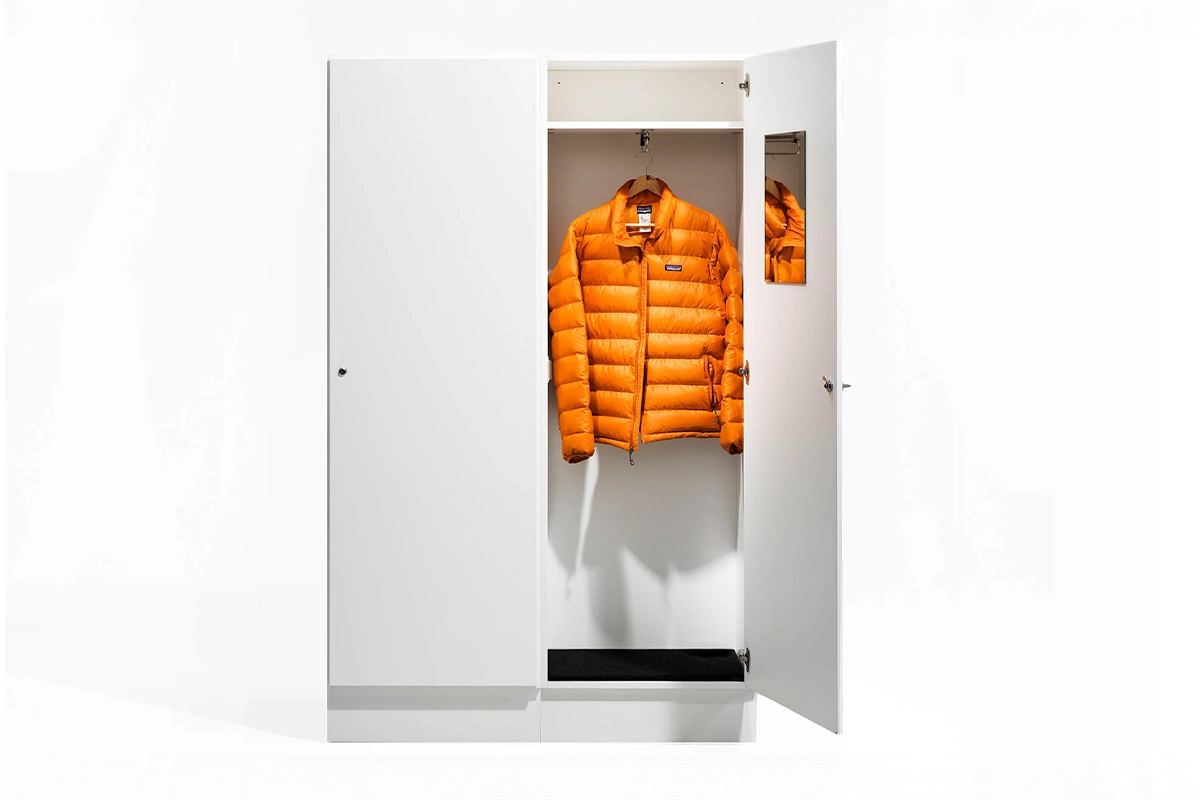

The CombiLine wardrobe always includes a hat rack and clothes rail as standard. Space efficient lockable wardrobes designed to blend into the work environment.
Doors are available with different types of locks and closures. Frames and fronts are available in standard white or lacquered in any NCS color. Choose between different standard widths: 310, 605 and 900 mm.
INFORMATION
BRAND
Trece
PRODUCT TYPE
Wardrobe
WORK TOPS HIGH PRESSURE LAMINATE
23 mm standard work-tops with high pressure laminate and 2 mm matching airtec-lipping.
- Formica Collection Colours
- Formica Collection Woods
MFC LAMINATE
22 mm standard worktops have an outer paper layer coated with an impregnated paper and a finish of Aluminium particles for extra protection against wear. 2 mm matching airtec-lipping.
COMBILINE
Mfc laminated and lacquered surfaces within combiline have a chip core, with the exception of some shelves. Back, frame, doors and edge strips have the same colour/ wood as other parts as standard, unless otherwise stated.
DOWNLOAD
↓ Data Sheet
PRODUCTION
Made in Sweden
MAIL SHELVES
Adjustable with pull-out function and mounting strip, subdivision c/c 96 mm.
- Mail shelves in acrylic have integrated name slots.
- Mail shelves in powder coated steel white or black are available as an addition.
AIRTECH-LIPPING
Airtec-lipping, also known as laser edging, provides an almost invisible joint between the worktop and edging strip. Thus provides a higher protection against water and heat. This new technology is glue-free, which results in a lower environmental impact.
STEEL DOORS MAIL SORTING
White powder coated steel. Shelves inside in the same material as frame, 19 mm.
- Including lock and 2 keys with individual lock number.
- Inlet 22 mm. Open door gives a free space of 90 mm.
DRAWERS
Drawers with depth 570 mm have soft closing.
- Extension 100%, max 65 kg.
- Extension 100%, max 35 kg (excl. recycling units).
INSERTS
Powder-coated steel insert, available in white or black.
- Slim 340x40 mm.
- Square 250x250 mm or 350x350 mm.
- Round with diameter 110, 250 or 400 mm.
ENVIRONMENT
Indoor
BACK
Thickness 12 mm, laminate inside and outside.
FRAME
Thickness 19 mm, 0.8 mm straight ABS-lipping.
- MFC laminate white, beech, birch and oak.
- Lacquered available in any NCS-colour.
PLINTH
Every module has its own front and back plinth with 4 adjustable feet (does not apply to recycling units with loading ramps). Plinth 157 mm. Can be replaced with;
- Bottom plate with adjustable stainless steel legs, height 157 mm.
- Bottom plate with lockable wheels, height 104 mm.
FITTING PIECES /COVER PANELS
Available as accessories in the same colour/ material as frame. Width, height and depth adapted to your requirements.
HANDLES
Stainless steel bow handles as standard, if you would like black or white handles, please not on order. • Standard handles c/c 128 mm. • Grip handles 40 mm.
USE
Storge
WARRENTY
5 Year
RECYCLING UNIT MDL60/MD60/MDH60/MD65/MD70
The bottom plate is equipped with an access ramp in stainless steel.
- Doors with aximat hinges for 180 degree opening for easy access to recycling containers.
LID FOR INSERT
Compact laminate, folded in / integrated into ring, thickness 6 mm
- Round 250 mm in diameter with knob.
- Compact laminate, Formica F2297 (anthracite) alt. F1040 (white)
CABINET LOCKS
Robust cabinet locks with master key system, individual numbers with 2 keys as standard. Identical locks available to addition.
SHELVES
All shelves are adjustable and mounted with milled-in shelf support. Drill division c/c 32 mm.
- 312 – 605 mm have a chip core.
- 800 – 898 mm have a pine lamellar core.
DRAWER FRONTS
Drawer front, low : 173 mm
Drawer front, high : 349 mm
Thickness 16 mm, 2 mm straight ABS-lipping.
- Lacquered available in any NCS-colour.
- White lacquered UV treated MFC laminate (NCS 0500-N) and MFC laminate in beech/ birch/ oak.
MATERIAL
Stainless Steel
AVAILABLE COLORS
5
MOUNTING
All modules are factory mounted. Worktops/ Cover panels/Top covers are mounted on site
LOCK TYPES
Cabinets locks, padlock fittings, code locks and RFID-locks (EM & Mifare). For networkbased locks contact TreCe for individual advice.
WALL MODULES
White lacquered mounting strip in steel is included for all wall modules.
STORAGE
This storage series can be customised. Clothes rail and hat rack are always included as standard. The master key for all locks can be ordered separately. Standard height: 1936 mm. Products in white, beech, birch and oak are approved by Möbelfakta.
DOORS
Thickness 16 mm, 2 mm straight ABS-lipping.
- Lacquered in any NCS colour.
- Single doors are right-hung as standard.
- White lacquered UV-treated MFC laminate (NCS S 0500-N), or MFC laminate in beech/birch/oak.
- Self closing concealed hinges with integrated soft closing (does not apply to products with aximat hinges with 180° opening).
INSERTS
Stainless steel, integrated ring in worktop
- Round 250 mm in diameter.
LID FOR INSERT
Powder-coated steel. Available for round inserts with diameters 250 and 400 mm.
