SWITCH – LED GROUND RECESSED 6W 3K 24VK FLOODLIGHT
SWITCH – LED GROUND RECESSED 6W 3K 24VK FLOODLIGHT

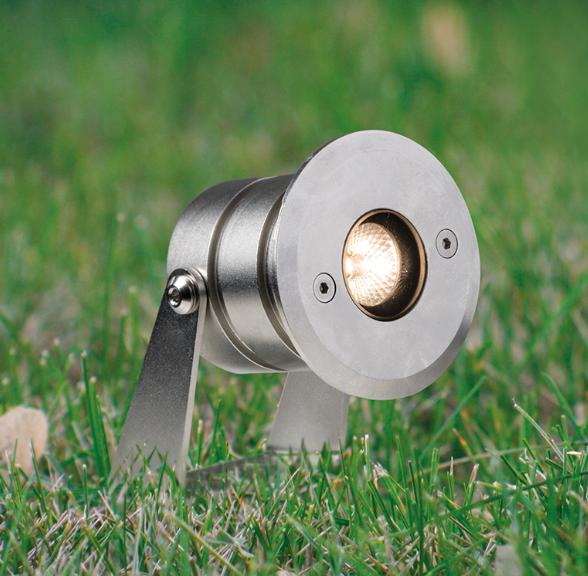

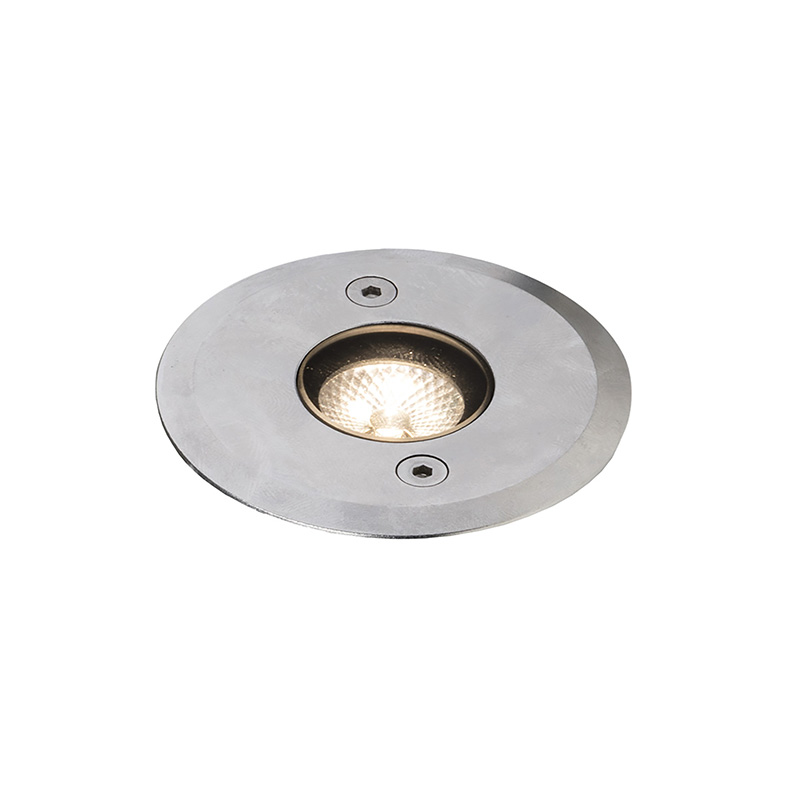

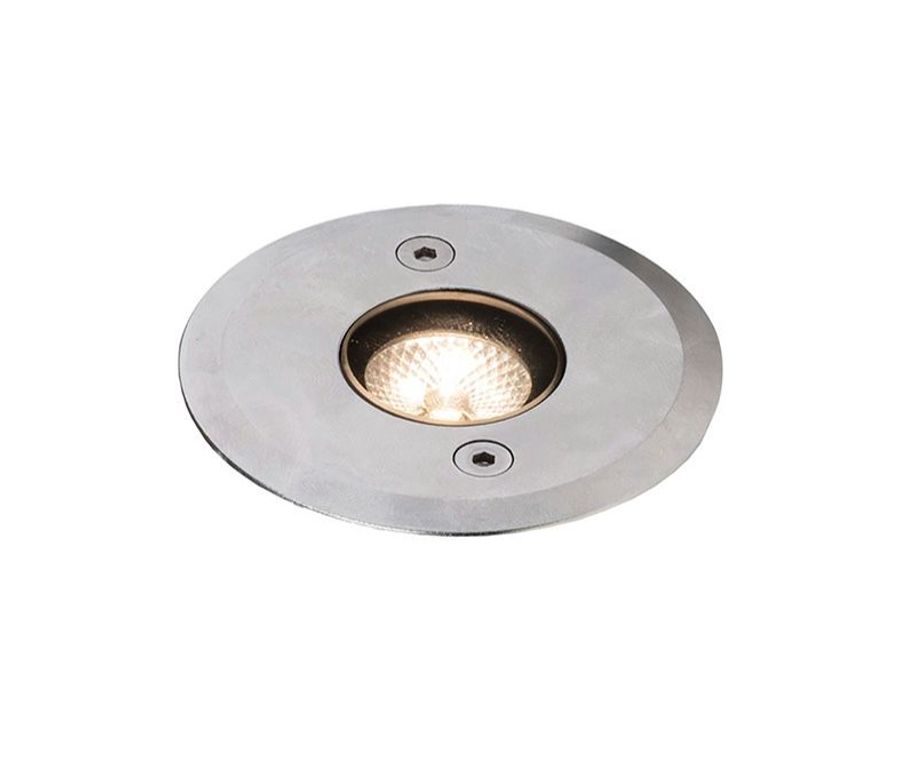

Outdoor 24V LED floodlight luminaire, damp-proof (IP68) and anti-corrosion (AISI316) stainless steel body, up to 5 meters immersible.
Recessed box in cluded. Thick tempered glass diffuser. Remote LED driver to be ordered separately as accessory. Available in two gradations (3000K and 4000K).
IP68 linear connectors for moisture protection and anticondensation linear joints are available.
INFORMATION
BRAND
Rossini Illuminazione
SKU
SWT001
PRODUCT TYPE
Outdoor Floodlight
INSTALLATION TYPOLOGY
Floodlight

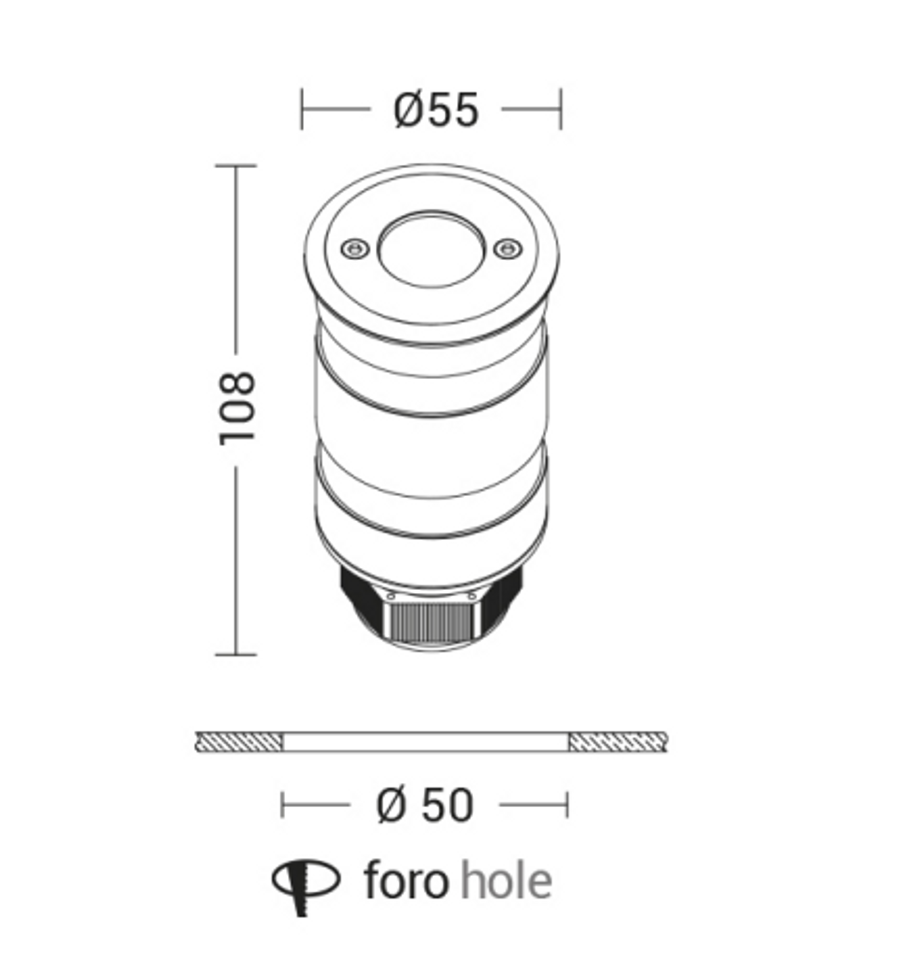

DIMENSIONS
- Height : 108 mm
- Diameter : Ø 55 mm
WEIGHT
0.3 kg
MATERIAL
Steel AISI31
COLOUR
Steel
GRADATIONS
3000K
LAMP HOLDER
Other
SOURCE
LED
ETIM GROUP
EG000027
ETIM CLASS
EC000758
INSULATION CLASS
III
HOLE
50mm

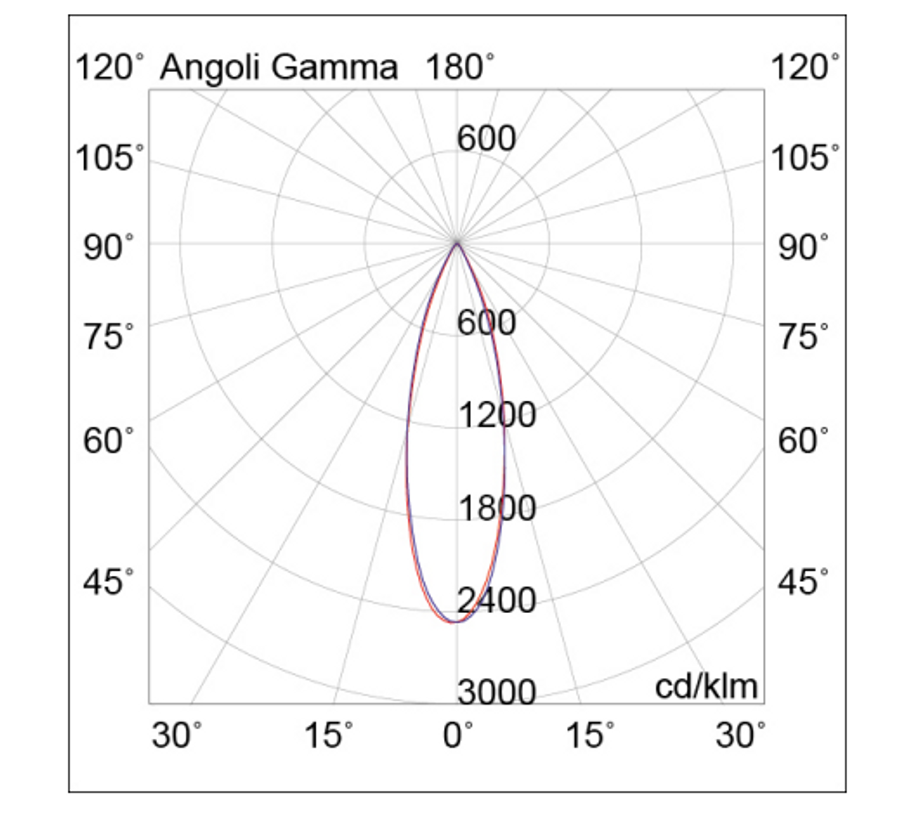

BEAM ANGLE
40°
CRI
>90
NOMINAL DIRECT LIGHT BEAM
310 lm
POWER SUPPLY(VOLTAGE)
24V DC
LIFE TIME
30000h
MACADAM
SDCM3
RESISTANCE TO FRACTURE
IK07
TYPOLOGY/FAMILY
Switch
VARIANTS SWITCH
| SKU | LAMP HOLDER | CCT | POWER | SIZE |
|---|---|---|---|---|
| SWT001 | Other | 3000K | 3 Watt | Ø 55 |
| SWT002 | Other | 4000K | 3 Watt | Ø 55 |

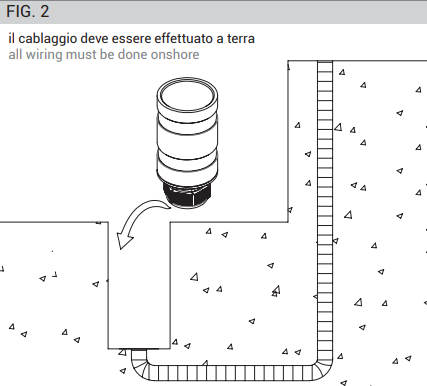

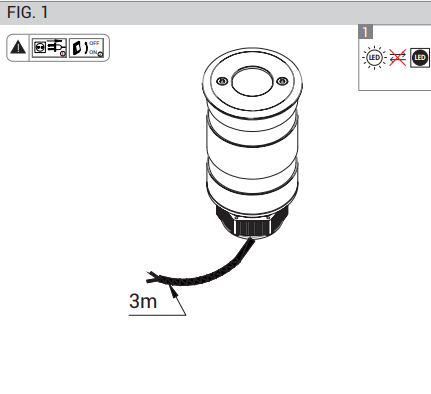

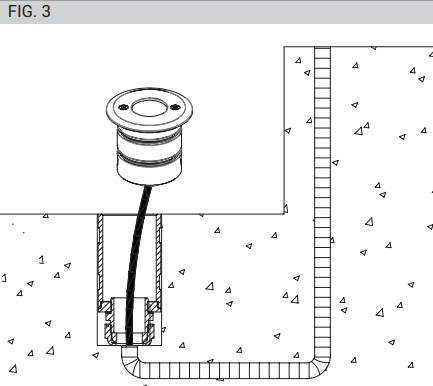

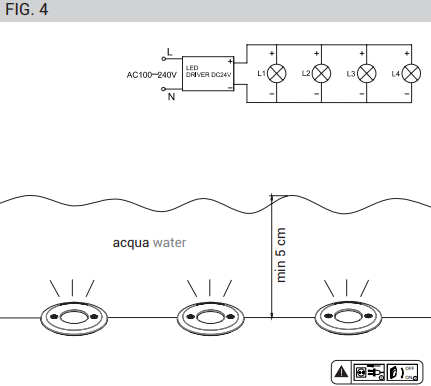

INSTALLATION
INSTALLATION NOTES
- The installation and maintenance must be performed only after disconnecting the electric power
- The Company accepts no responsibility whatsoever for damages caused by incorrect installation, misuse or when used by combing it with spare parts not belonging to the products.
- If you have any doubt, consult a qualified electrician.
