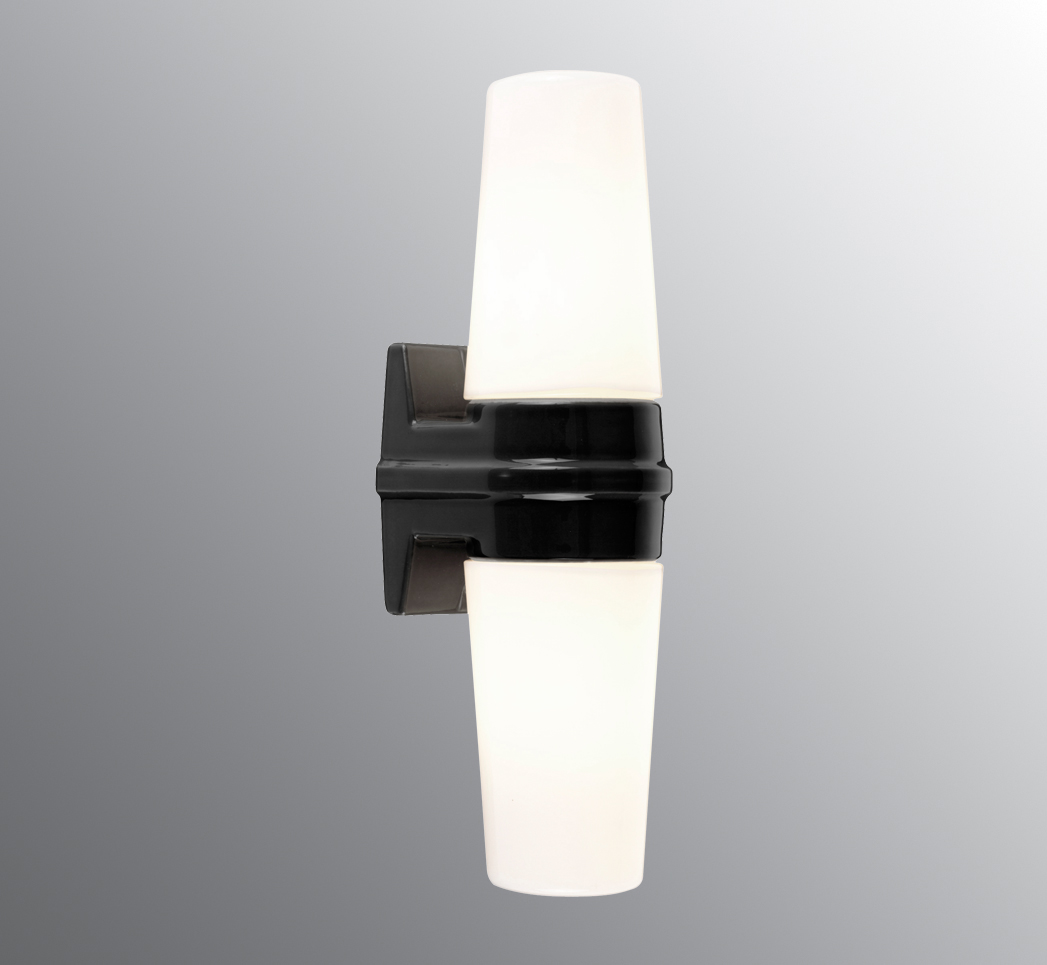

Ifoelectric Bernadotte Double IP20 Wall Light
BERNADOTTE DOUBLE IP20 WALL LIGHT
BERNADOTTE DOUBLE IP20 WALL LIGHT
It is said that good design is timeless.
Designed by Sigvard Bernadotte in the middle of the 1960’s – 50 years later, it is still as popular.
INFORMATION
BRAND
Ifoelectric
PRODUCT TYPE
Wall Light
COLLECTION
Bernadotte
ARTICLE NO
6060-704-16
NORWEGIAN EL-NUMBER
3032207
BASE COLOUR
Black (NCS S 9000-N)
LIGHT SOURCE
2 x max 40W (not included)
EAN CODE
7312906060167
FINNISH S-NUMBER
4212330

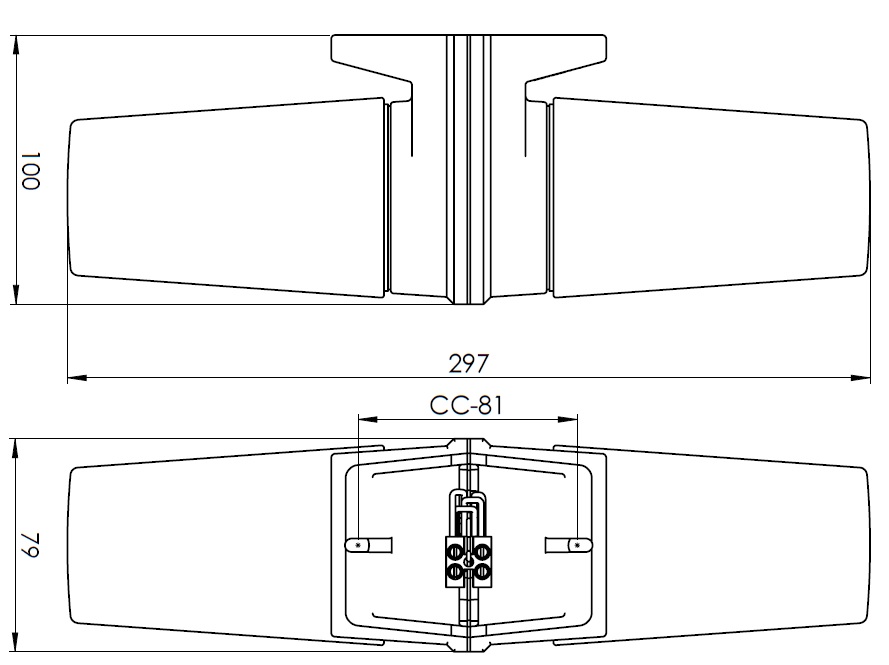

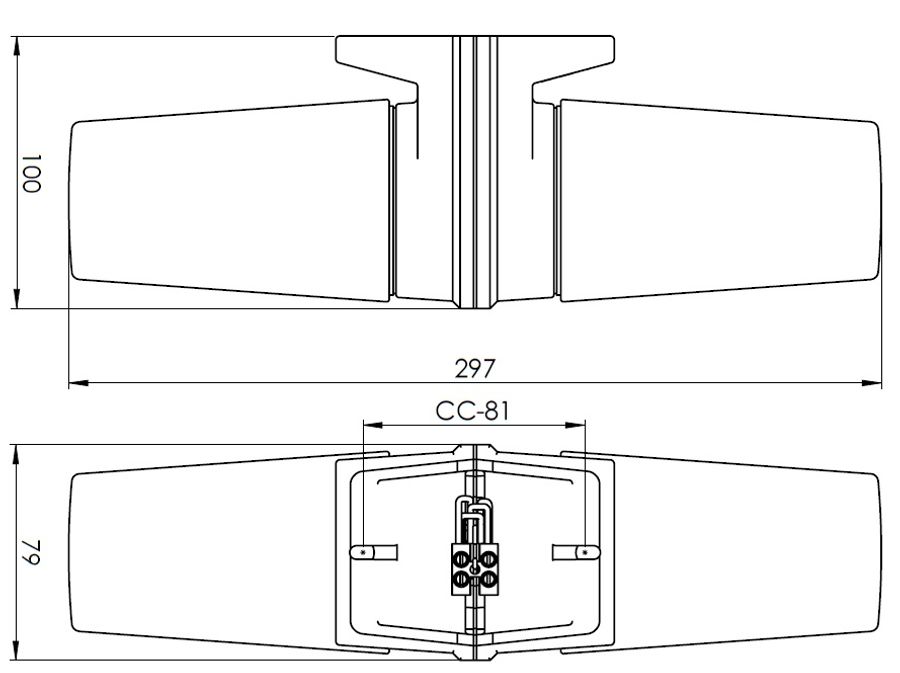

DIMENSIONS
- Height : 297 mm
- Width : 79 mm
- Depth : 100 mm
E-NUMBER
7530830
TYPE DESIGNATION
6060-2
MATERIAL
Porcelain
GLASS
Shiny Opal Glass
CC MEASUREMENT
81 mm
WEIGHT
0.8 kg
LAMP HOLDER
E14
KNOCK OUT OPENING
2
EFFECT
2 x max 40W
RATED VOLTAGE
230V
CABLE INLET & CABLE GLANDS
Bottom Inlet
PRODUCTION
Made in Sweden
DESIGN
Sigvard Bernadotte
D CLASS
No
IK CLASS
IK02
IP CLASS
IP20
INSULATION CLASS
II
CABLE AREA
Max 2 x 4 mm2
SURFACE MOUNTED CABLE
Yes
SPARE PARTS
-Shade Bernadotte E14 shiny opal -Gasket silicone for thread 57 mm for Bernadotte
BRIDGING
Yes
CONNECTION
Terminal Block
MAINTENANCE
-Disconnect the power to the luminaire. Unscrew the glass and clean it. Do not use detergents that contain solvents. Replace light source if necessary. Check the gasket and replace it if necessary. Screw the shade back on. -If the luminaire is modified the person responsible for the modification shall be considered manufacturer. Subject to errors in text. We reserve the right to change the technical specifications (without notice).
TA
-30 - +25
INSTALLATION
Wall
