LYX OUTDOOR FLOOR LAMPS
LYX OUTDOOR FLOOR LAMPS
Designed by Jan Forsmark
DESIGNER
JAN FORSMARK
Trained as a secondary school engineer specializing in electric power and an electrical installer with general certification. Since 2020, a professional member of the IALD (International Association of Lighting Designers).
A multi-award-winning lighting designer, he was among the winners of the Swedish Lighting Award in 2011 and received an Honorable Mention in the Swedish Lighting Award in 2019.
When Jan started the lighting design company 'Designat Ljus Europa AB' in 2012, he had over 25 years of experience in planning, designing, and implementing lighting installations.
In 2020, Jan was named the Formbärare of the Year by Svensk Form, where the following lines were part of the citation:
He works quietly but is well-known throughout the country for his work as a lighting designer. Jan's work with lighting leaves an impact and adds value to people through all the projects he is involved in. Lighting design with creativity and quality that both enriches the urban landscape and creates ambiance in the woodland glade.
INFORMATION
FINISH

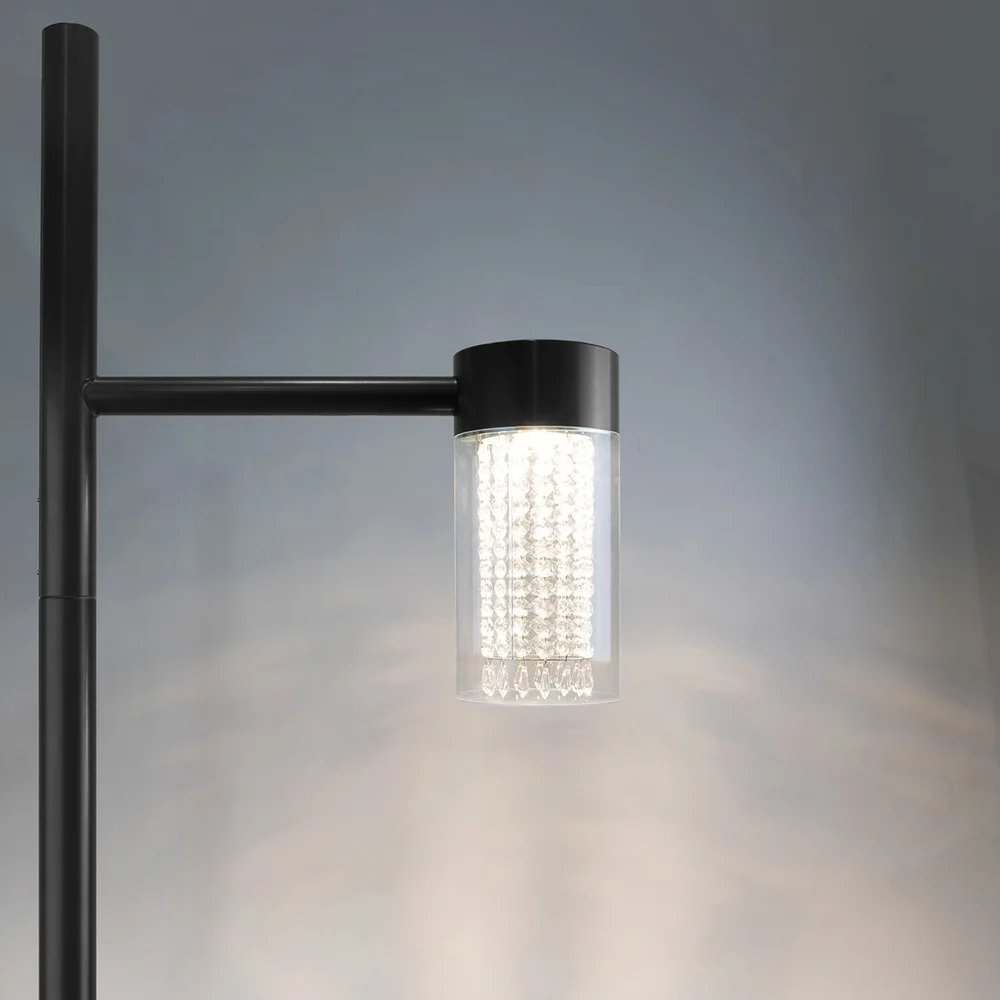

Painted aluminum and zinced metal. Outer shade in polycarbonat with intergrated glass prisms. Pole arm lncluded.
BRAND
Zero
PRODUCT TYPE
Outdoor Floor Lamps
LED INFO
- System power 19W. Luminaire Luminous Flux: 1990-2240LM.
- CCT 3000K (2700K, 3500K or 4000K on request). SDCM 3. CRI 80. L70 60.000h.
COLLECTION
Lumo
PRODUCTION
Made in Italy
DESIGNER
Jan Forsmark 2024.
INSTALLATION
- On pole top D60 mm .
- Other mounting versions as double or tripple can be produced on request.
- We recomend to use a local supplier of the pole as standards may vary between different countries.
- The pole we are able to supply are according to Swedish standards for buried foundation.
CONNECTION
Terminal block 5x10mm2.
VOLTAGE
230V

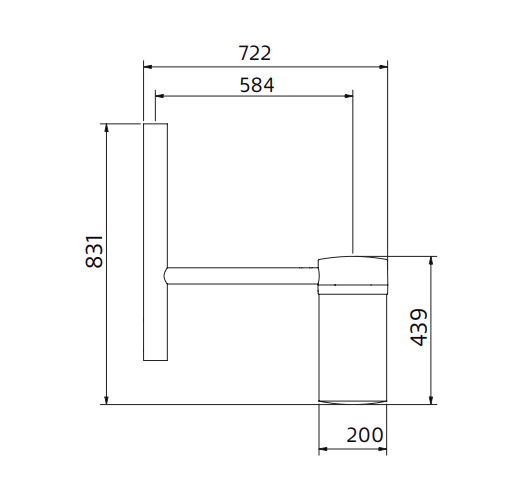

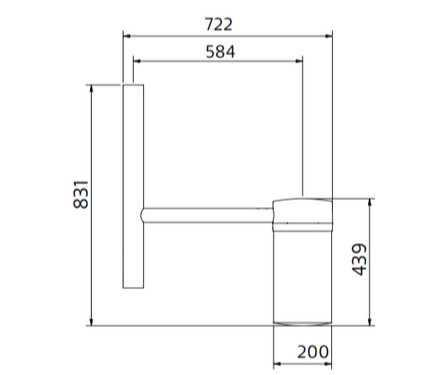

TECHNICAL DRAWING
POLE FIXTURE

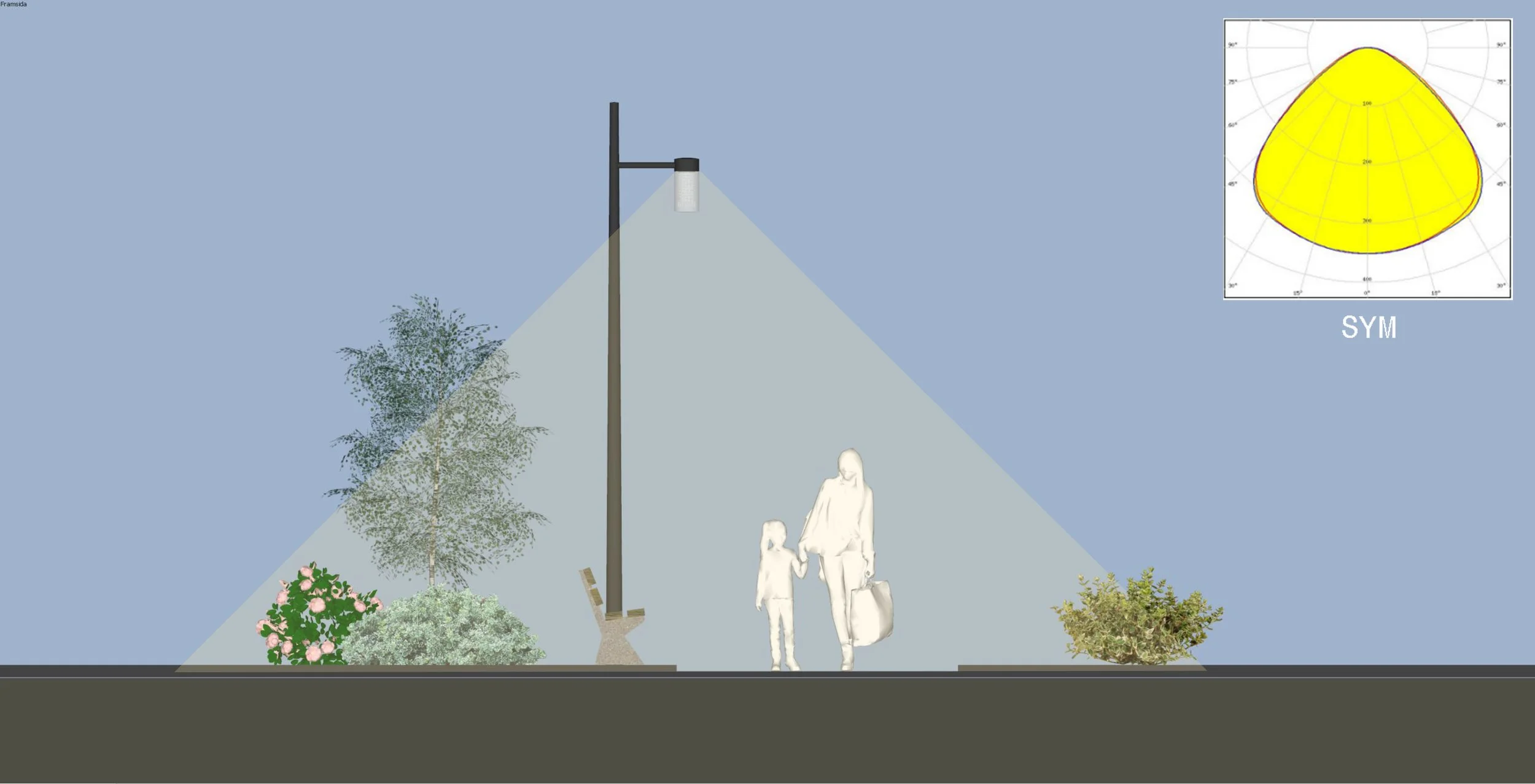

PRODUCT SPECIFICATION - SYMMETRICAL
| POWER | LUMINAIRE FLUX | KELVIN | CRI | FINISH | DATA | ART. |
|---|---|---|---|---|---|---|
| LED 19W | 2190LM | 3000 | >80 | Black | On/Off | 12333106-30 |
| LED 19W | 2190LM | 3000 | >80 | Black | DALI | 12333106D30 |
| LED 19W | 2190LM | 3000 | >80 | Black | Zhaga | 12333106Z30 |
PRODUCT SPECIFICATION - ASYMMETRICAL ROAD
| POWER | LUMINAIRE FLUX | KELVIN | CRI | FINISH | DATA | ART. |
|---|---|---|---|---|---|---|
| LED 19W | 1990LM | 3000 | >80 | Black | On/Off | 12333106-30 |
| LED 19W | 1990LM | 3000 | >80 | Black | DALI | 12333106D30 |
| LED 19W | 1990LM | 3000 | >80 | Black | Zhaga | 12333106Z30 |

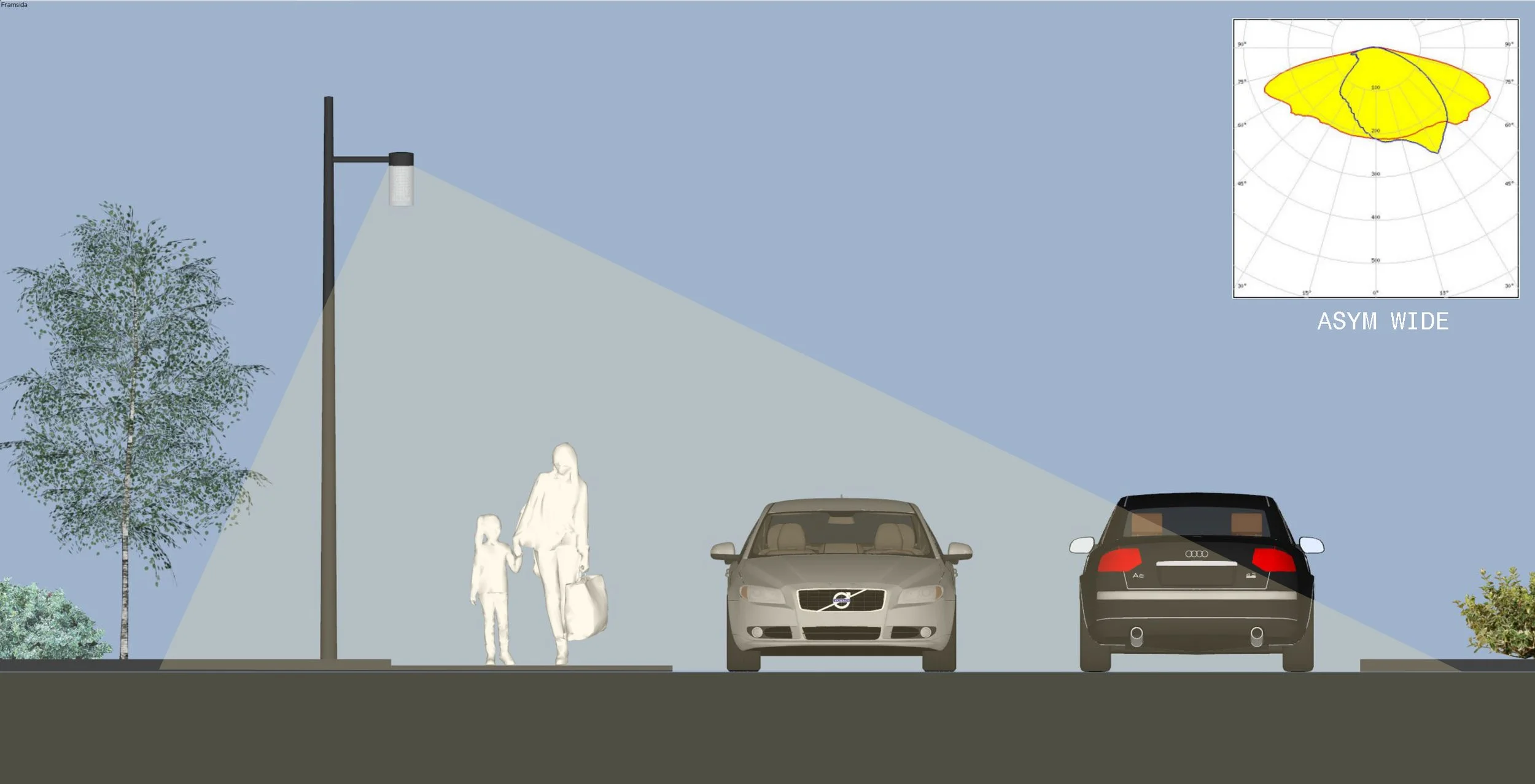

PRODUCT SPECIFICATION - ASYMMETRICAL ROAD WIDE
| POWER | LUMINAIRE FLUX | KELVIN | CRI | FINISH | DATA | ART. |
|---|---|---|---|---|---|---|
| LED 19W | 2209LM | 3000 | >80 | Black | On/Off | 12333106-30 |
| LED 19W | 2209LM | 3000 | >80 | Black | DALI | 12333106D30 |
| LED 19W | 2209LM | 3000 | >80 | Black | Zhaga | 12333106Z30 |

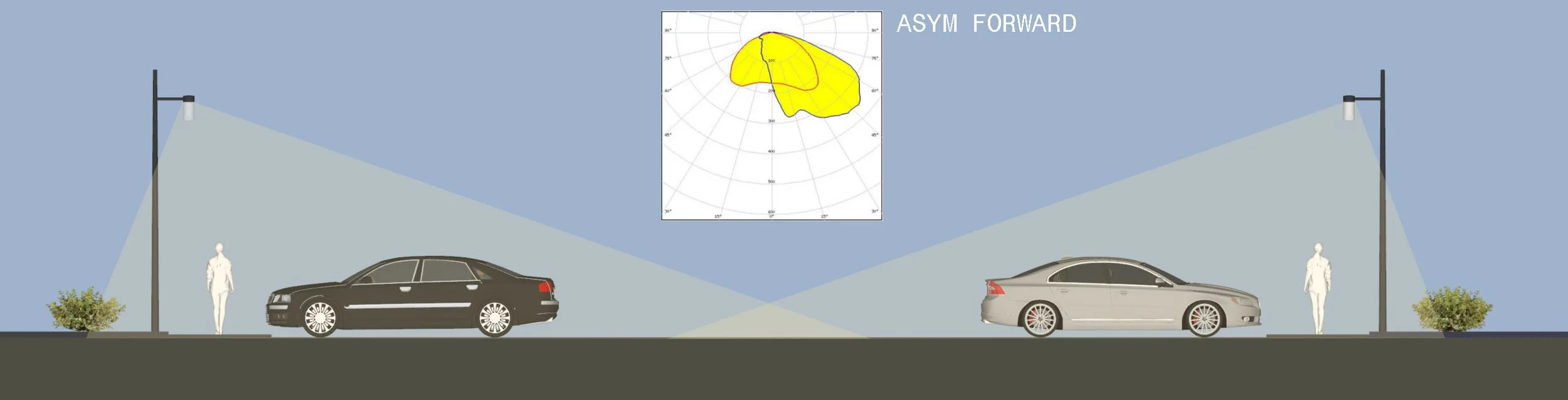

PRODUCT SPECIFICATION - ASYMMETRICAL FORWARD
| POWER | LUMINAIRE FLUX | KELVIN | CRI | FINISH | DATA | ART. |
|---|---|---|---|---|---|---|
| LED 19W | 2240LM | 3000 | >80 | Black | On/Off | 12333106-30 |
| LED 19W | 2240LM | 3000 | >80 | Black | DALI | 12333106D30 |
| LED 19W | 2240LM | 3000 | >80 | Black | Zhaga | 12333106Z30 |
