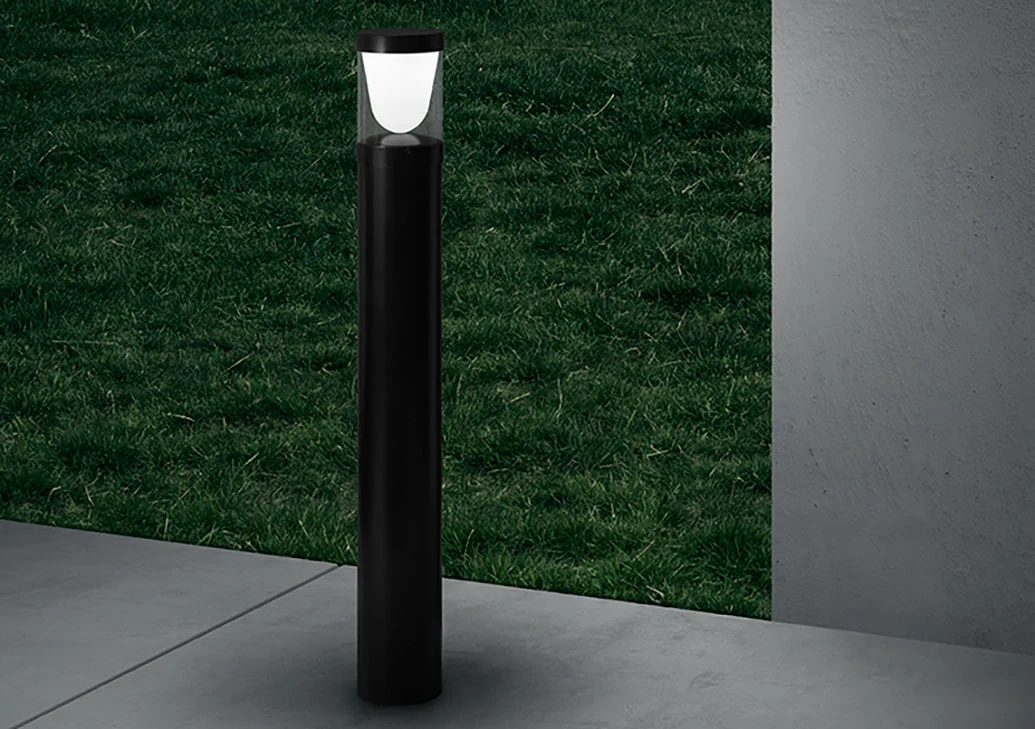

Zerolighting Convex Outdoor Bollard Lights
CONVEX OUTDOOR BOLLARD LIGHTS
CONVEX OUTDOOR BOLLARD LIGHTS
Designed By Jens Fager
Now Convex has evolved into both a pole fixture and a bollard.
It has the same amiable expression with the slightly curved top, where the design’s clarity and the construction’s durability contribute to a long life. Energy efficient due to its LED technology. IK 10.
DESIGNER
JENS FAGER
Jens philosophy - Everything is and will be different. The core that permeates every single project, is treating them all in a honestly way and highlight their main function.
The second part is that we always add a sense of humour, poetry or surrealism.
The conclusion of it all ends up in a natural product, both for the producer and the consumer.
Our field of works stretches from smaller architecture, interiors for restaurants stores, offices and also product design.
Everything is about everyday life and our essential needs for daily experiences.
INFORMATION
BRAND
Zero
PRODUCT TYPE
Outdoor Bollard Lights
FINISH
Painted aluminum and metal. Inner diffusor in opal acrylic. Outer in transparent acrylic.

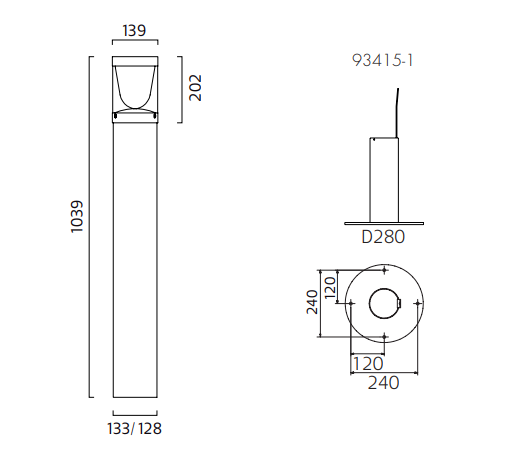

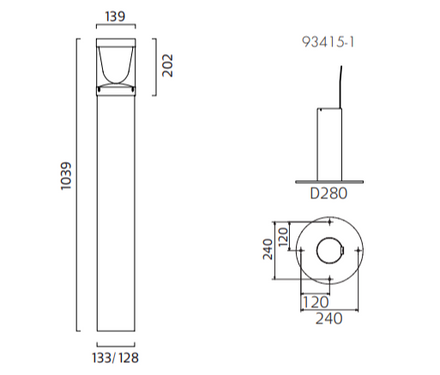

DIMENSIONS
- Height : 1039 mm
- Diameter : 139 mm
- Width : 133/128
- Light height : 202 mm
DESIGN
Jens Fager 2016.
CLASSIFICATION
IK 10, IP 44.
IP ADDRESS
IP44
VOLTAGE
230V
LED INFO
- System power 6W. Luminaire Luminous Flux 370LM.
- CCT 3000K. SDCM 3. CRI >90. L80 B10 50.000H.
FREQUENCY
50Hz
ENVIRONMENT
Indoor
INSTALLATION
Fits buried foundation with hole D108 mm. Accessory available for installation above ground.
ENERGY EFFICIENT
Energy efficient due to its LED technology.
CONNECTION
Terminal block 5x25mm2.
COLLECTION
Convex
DOWNLOADS
↓ Product Sheet
COLORS
- Black
- Galvanized
PRODUCT SPECIFICATION
| POWER | LUMINAIRE FLUX | KELVIN | CRI | COLOR | ART. |
|---|---|---|---|---|---|
| LED/6W | 370LM | 3000 | >90 | Svart/Black | 3415-1-06 |
| LED/6W | 370LM | 3000 | >90 | Galv/Galv | 3415-1-83 |
| ACCOSSORY | |||||
| Ground base for installation above ground 300x300mm | - | - | - | Svart/Black | 93415-1-06 |
| Ground base for installation above ground 300x300mm | - | - | - | Galv/Galv | 93415-1-83 |
