CYRCA BOLLARD LIGHTS
CYRCA BOLLARD LIGHTS
Offering robust, security-rated protection in a sleek design, Cyrca bollards integrate seamlessly into a wide range of environments with four cap designs that readily coordinate with different site-specific aesthetics.
INFORMATION
BRAND
Forms+Surfaces
PRODUCT TYPE
Bollard Lights
PERFORMANCE
Long-lasting Performance
INSTALLATION
- Eulo Seating and Planters can be freestanding or surface mounted.
- Stainless steel anchors and mounting bolts are sold separately.
COLLECTION
Cyrca
PRODUCTION
Made in USA
DESIGN VERSITILITY

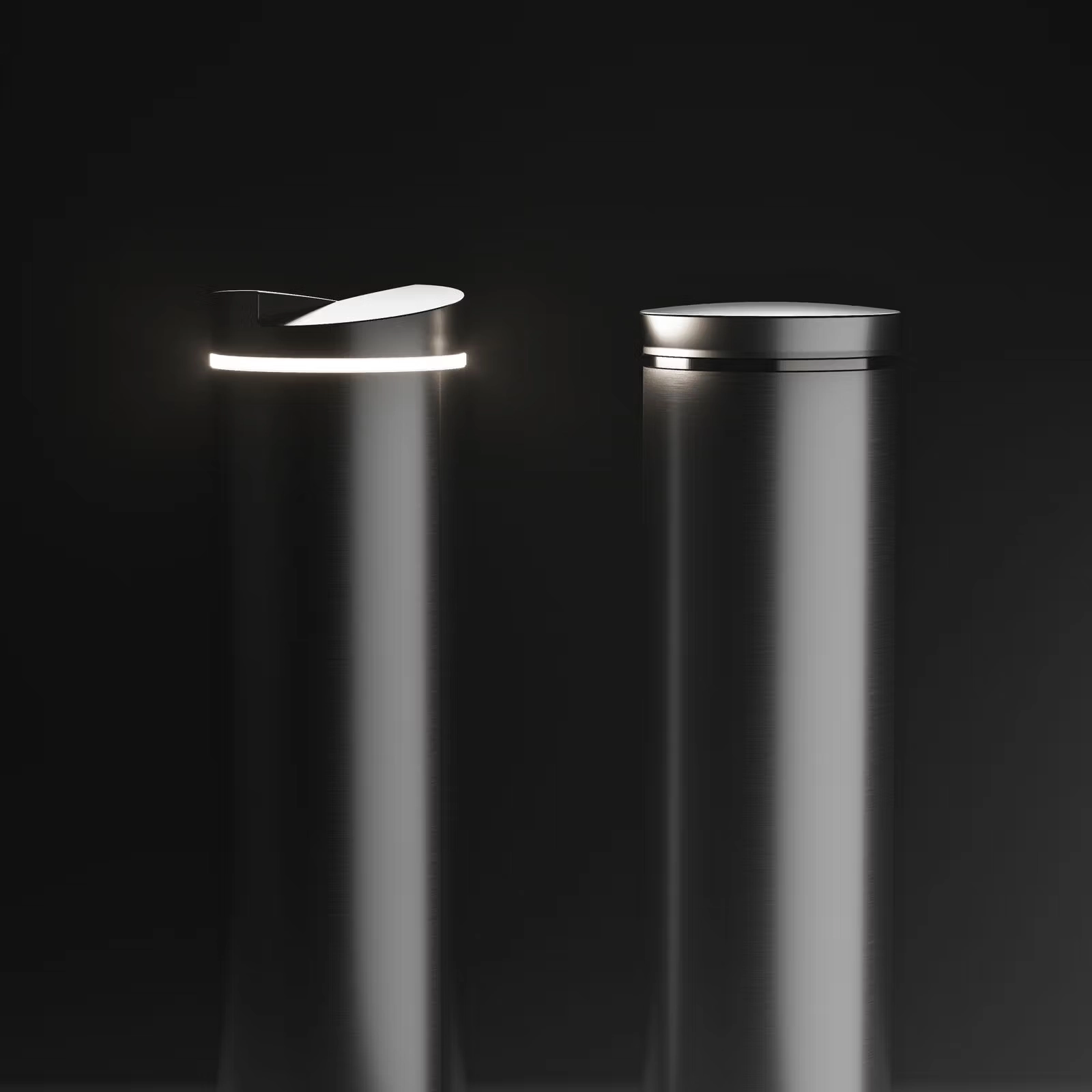

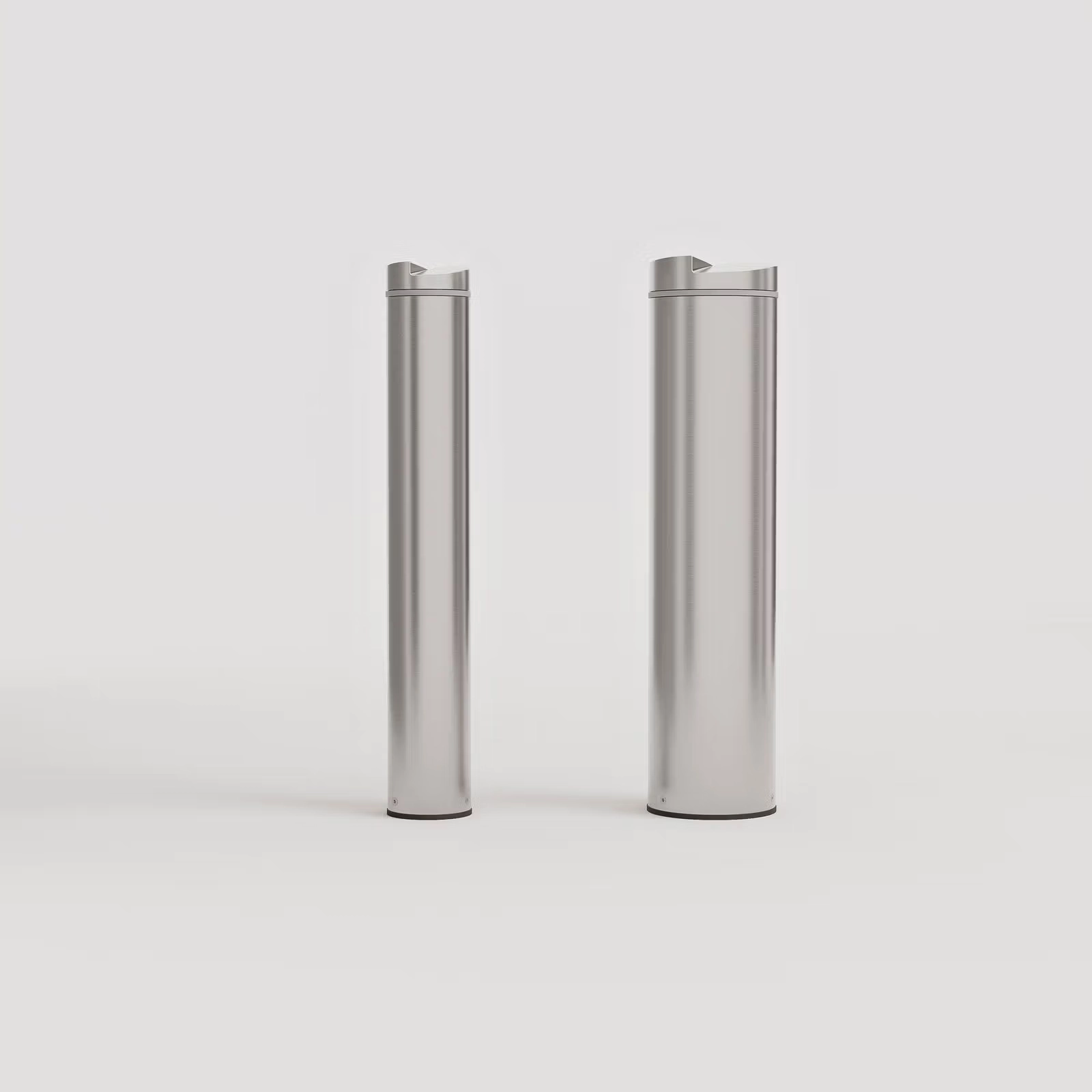

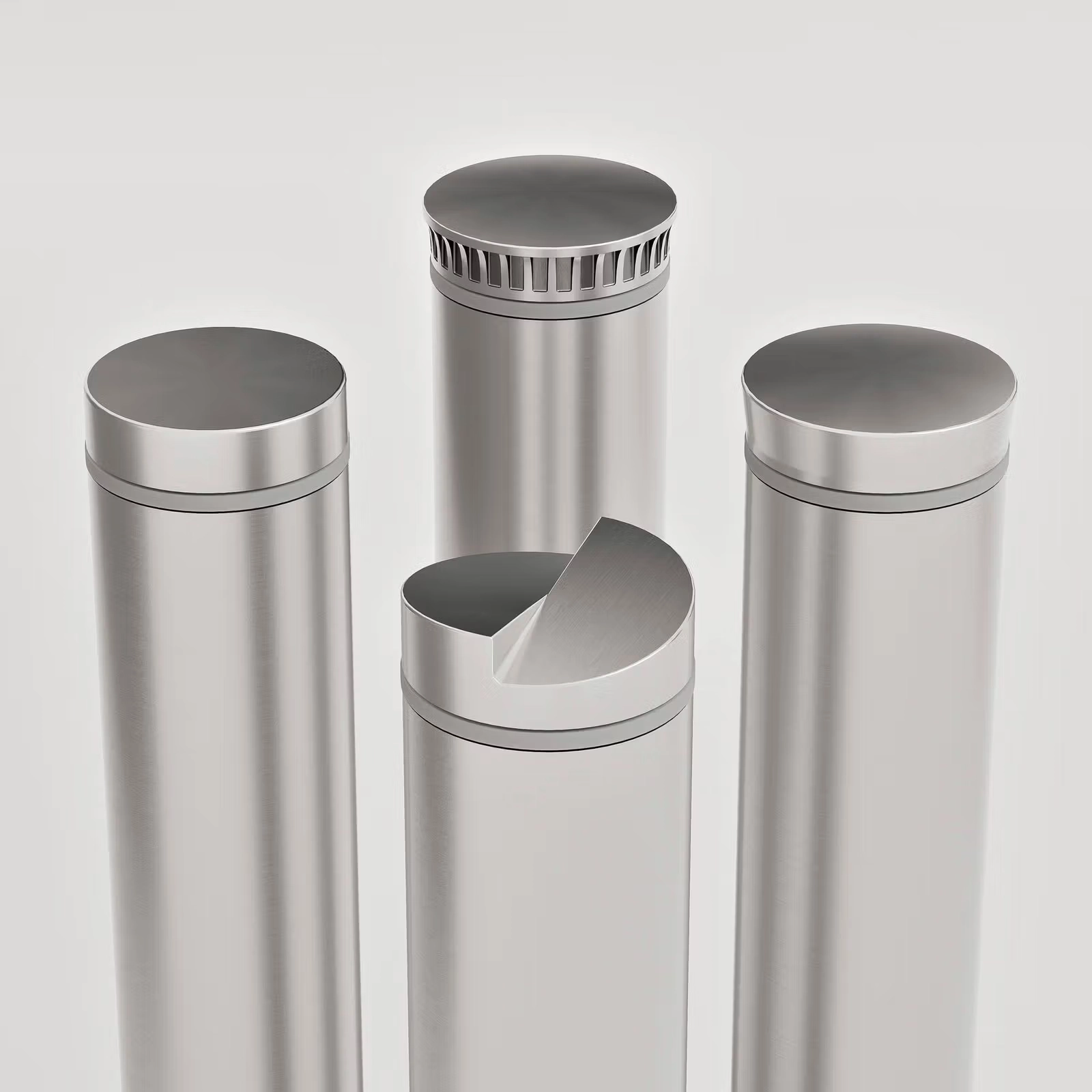

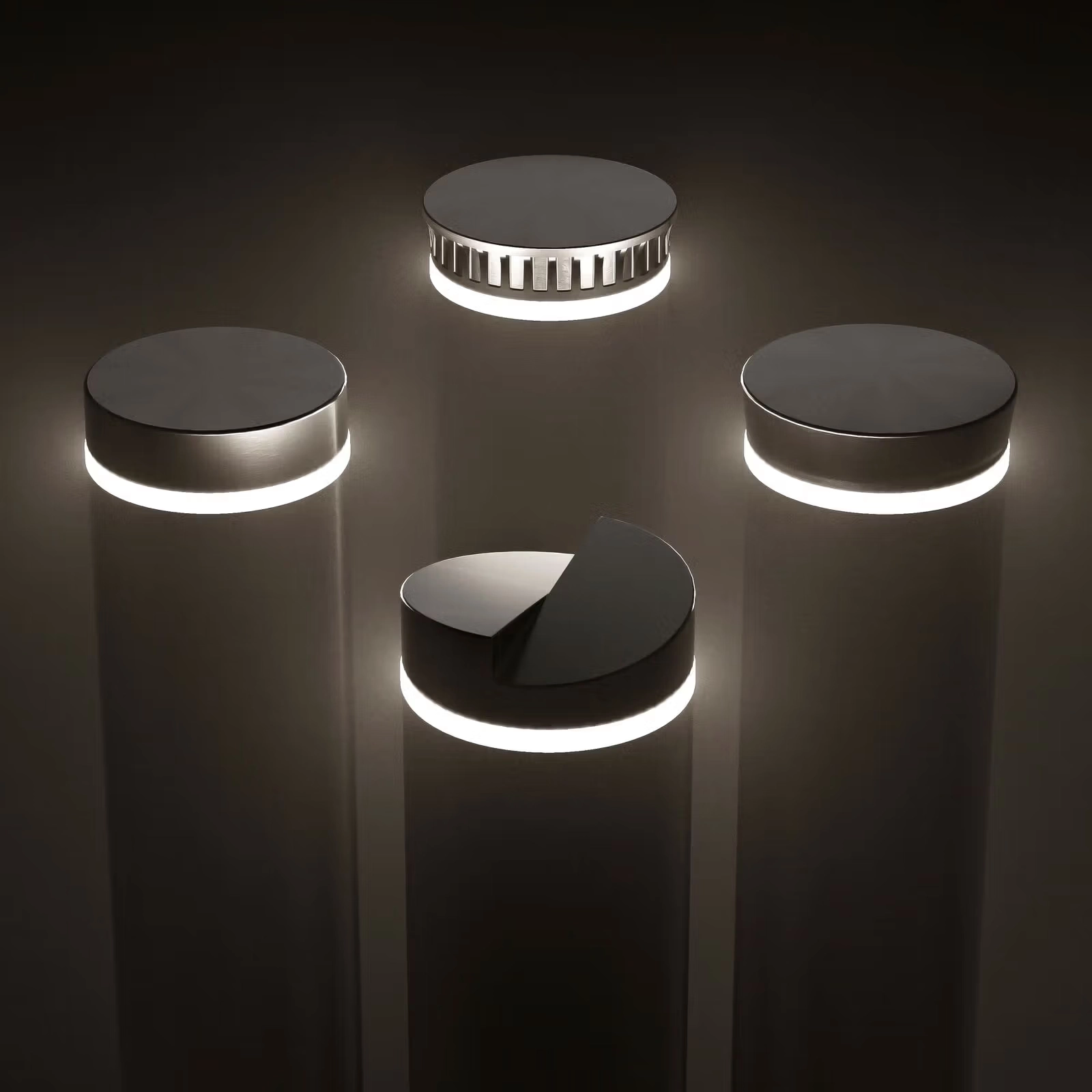

Cyrca Bollards are available in both 6" and 9" diameters and 40" heights, offering a range of customization options. These bollards are offered in illuminated and non-illuminated versions, with an optional embedded security core and four unique cap designs. Stainless steel bollards can be specified with LEDs in 3000K warm white or 4000K neutral white temperatures, providing flexibility for various lighting environments.
LEAD TIME
6 to 8 weeks. Shorter lead times may be available upon request. Please contact us to discuss your specific requirements.
ENVIRONMENT
Outdoor
TYPE OF LIGHTING
LED
BEAUTIFUL PROTECTION

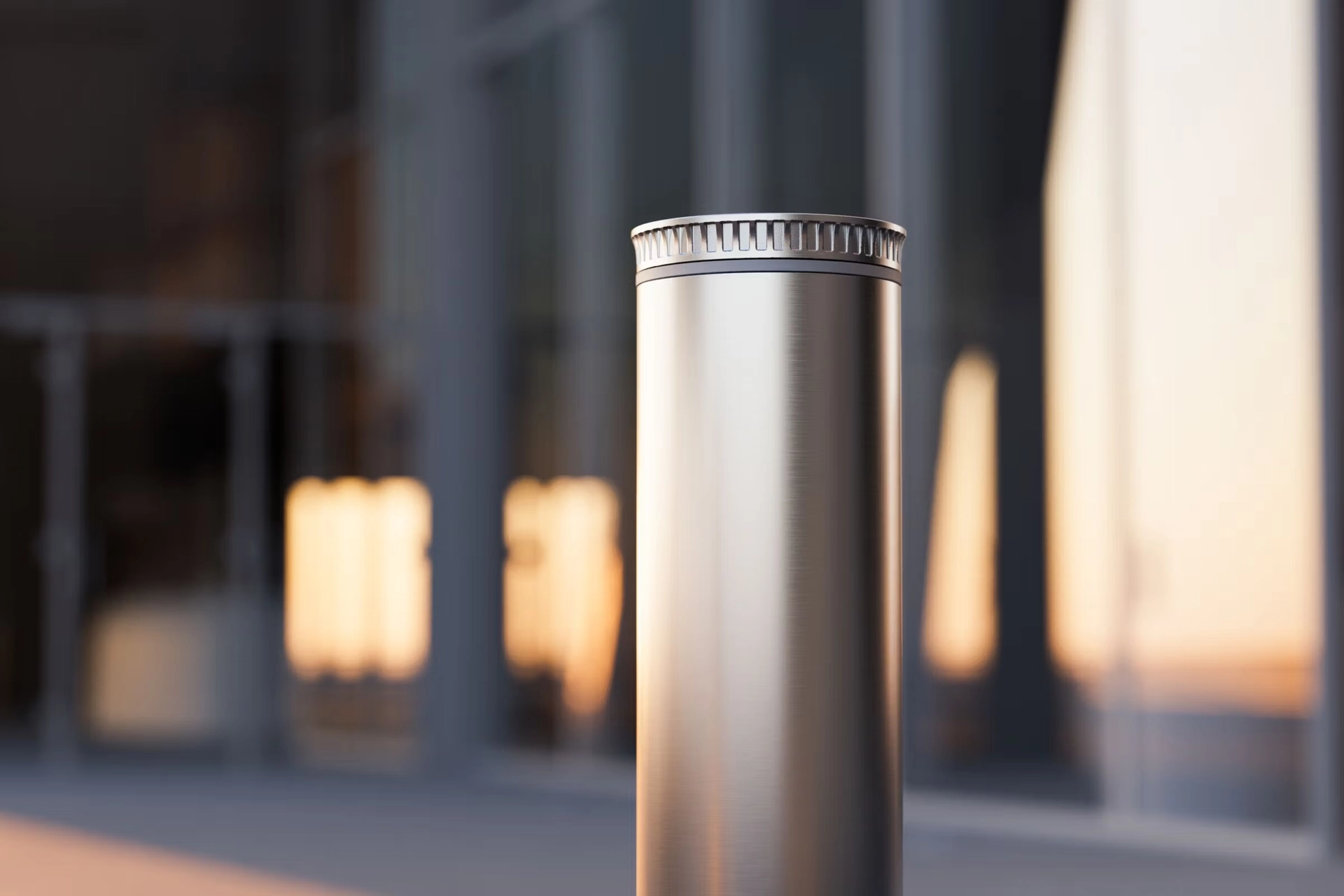

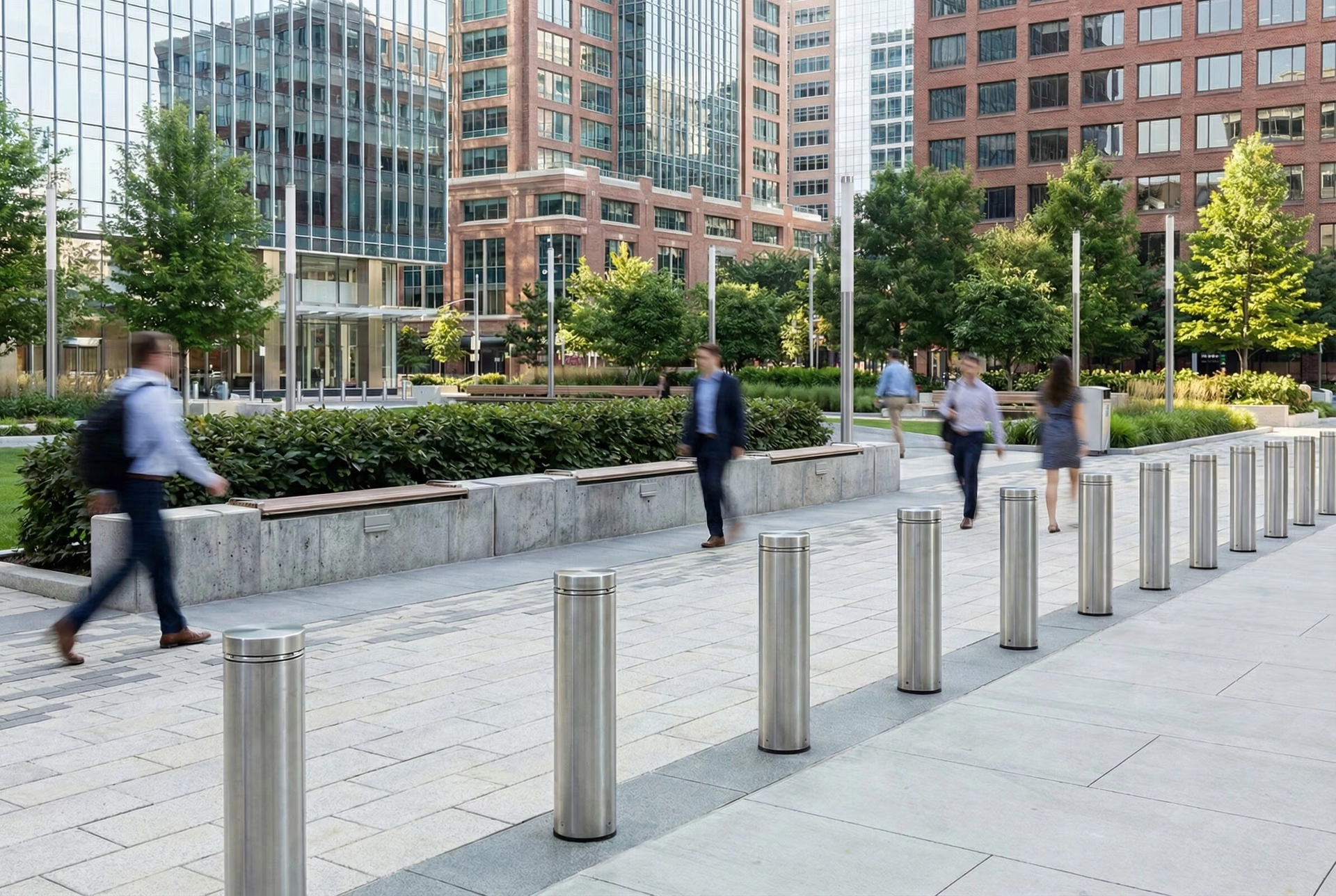

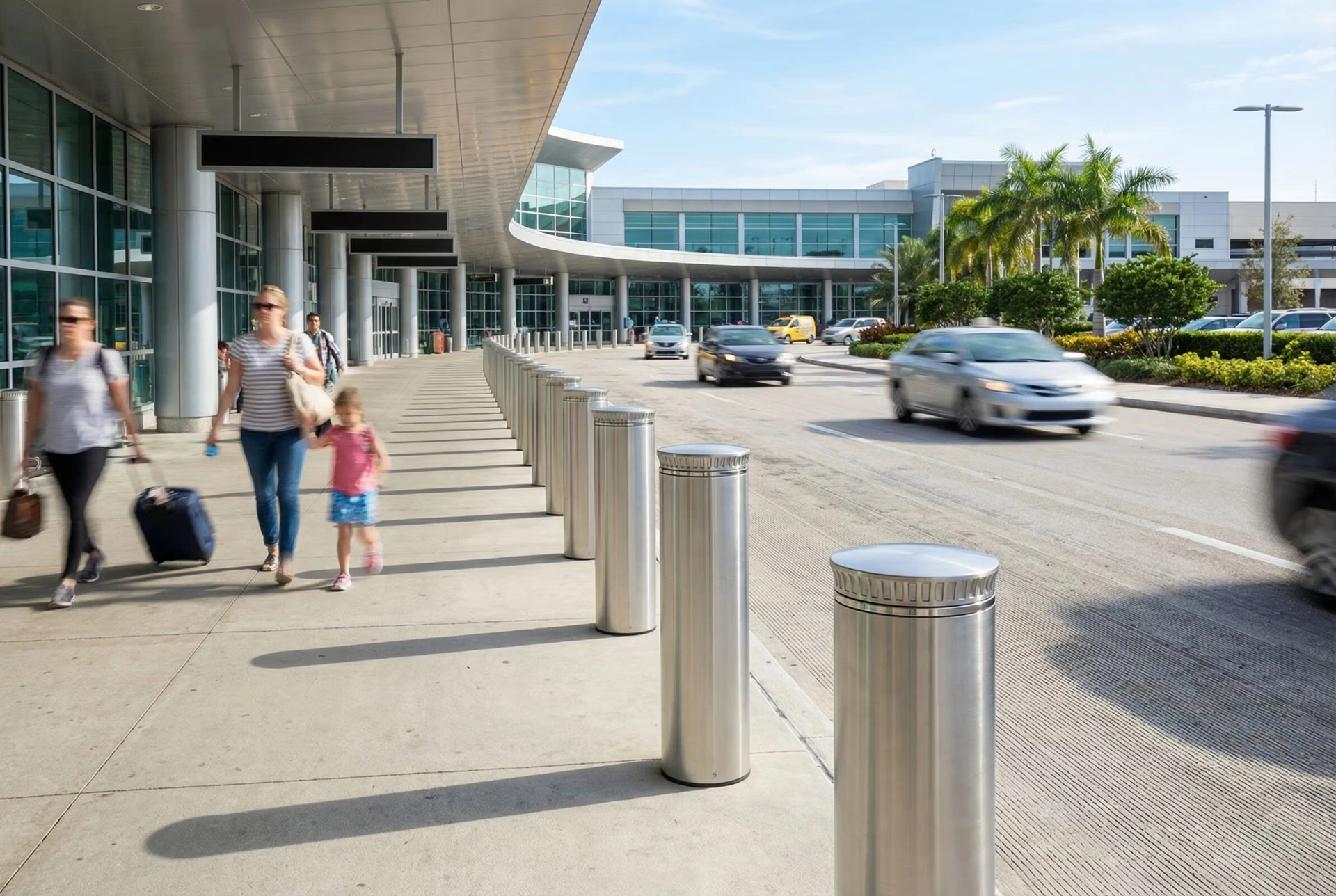

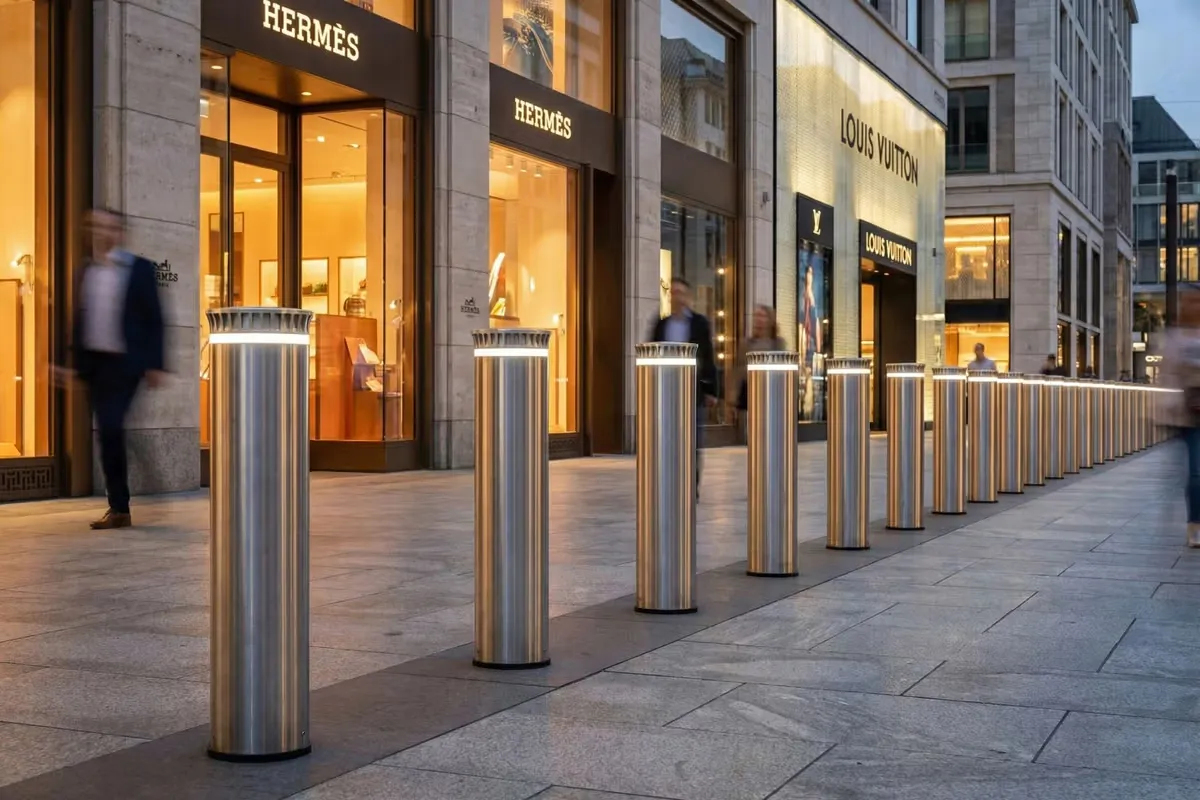

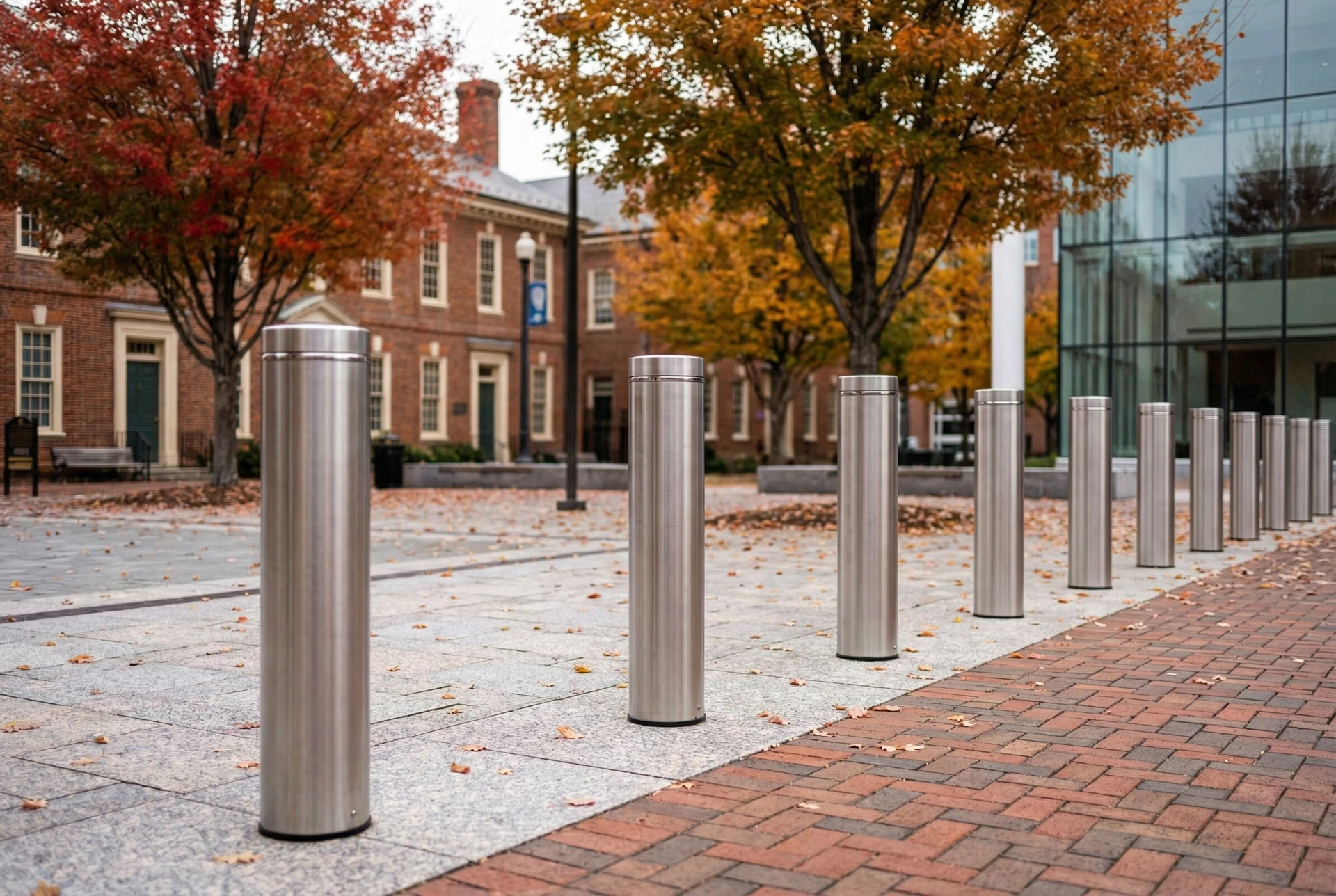

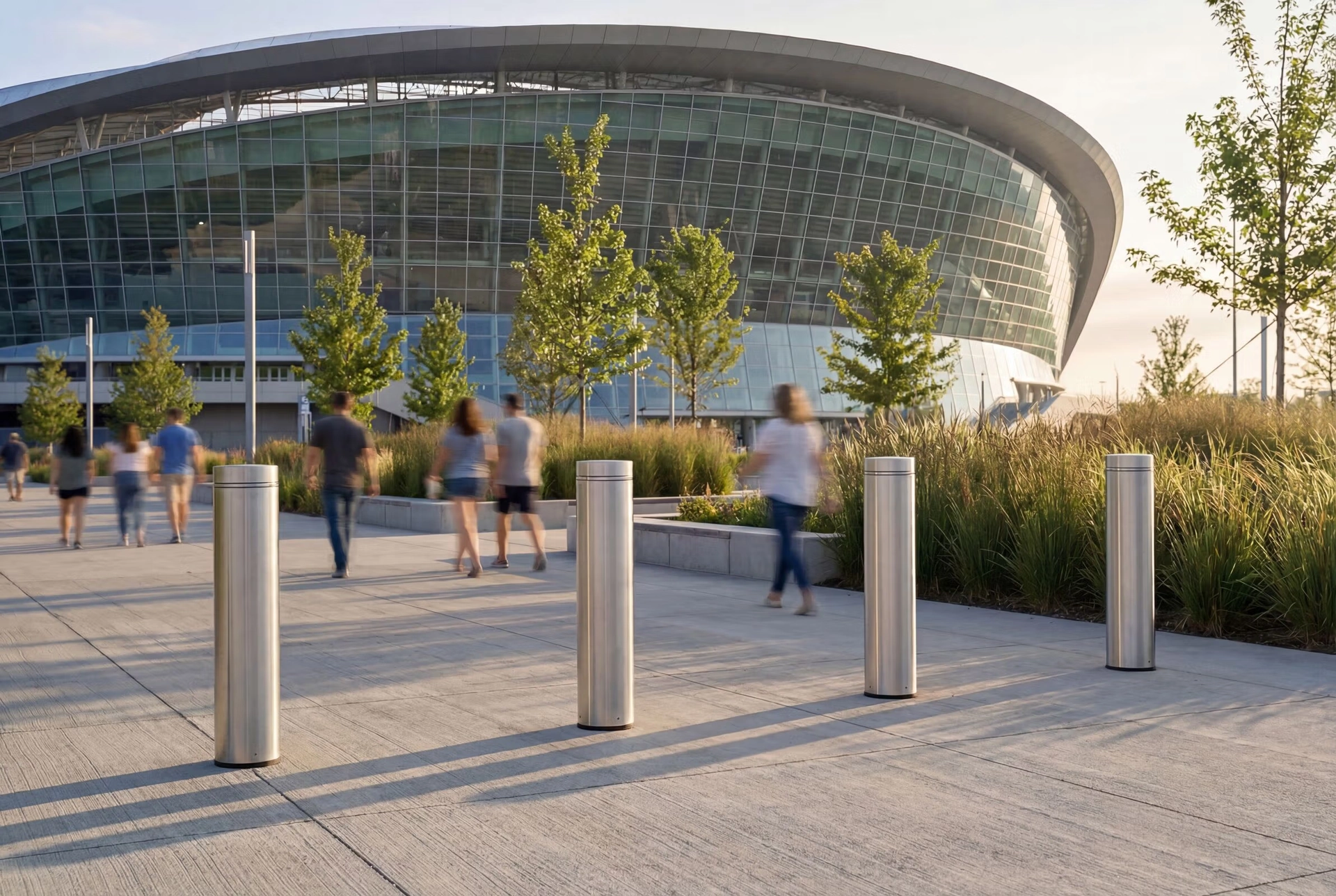

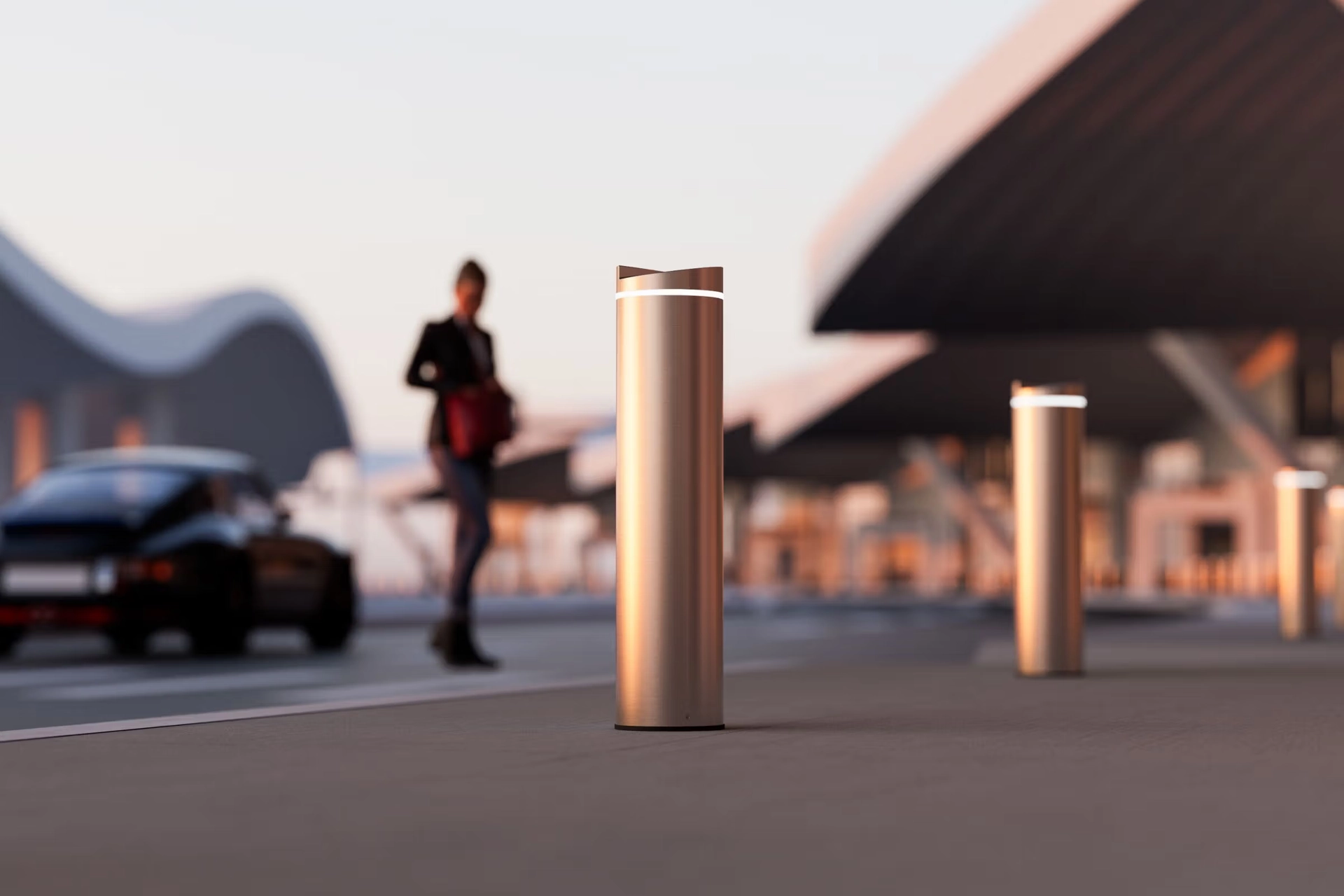

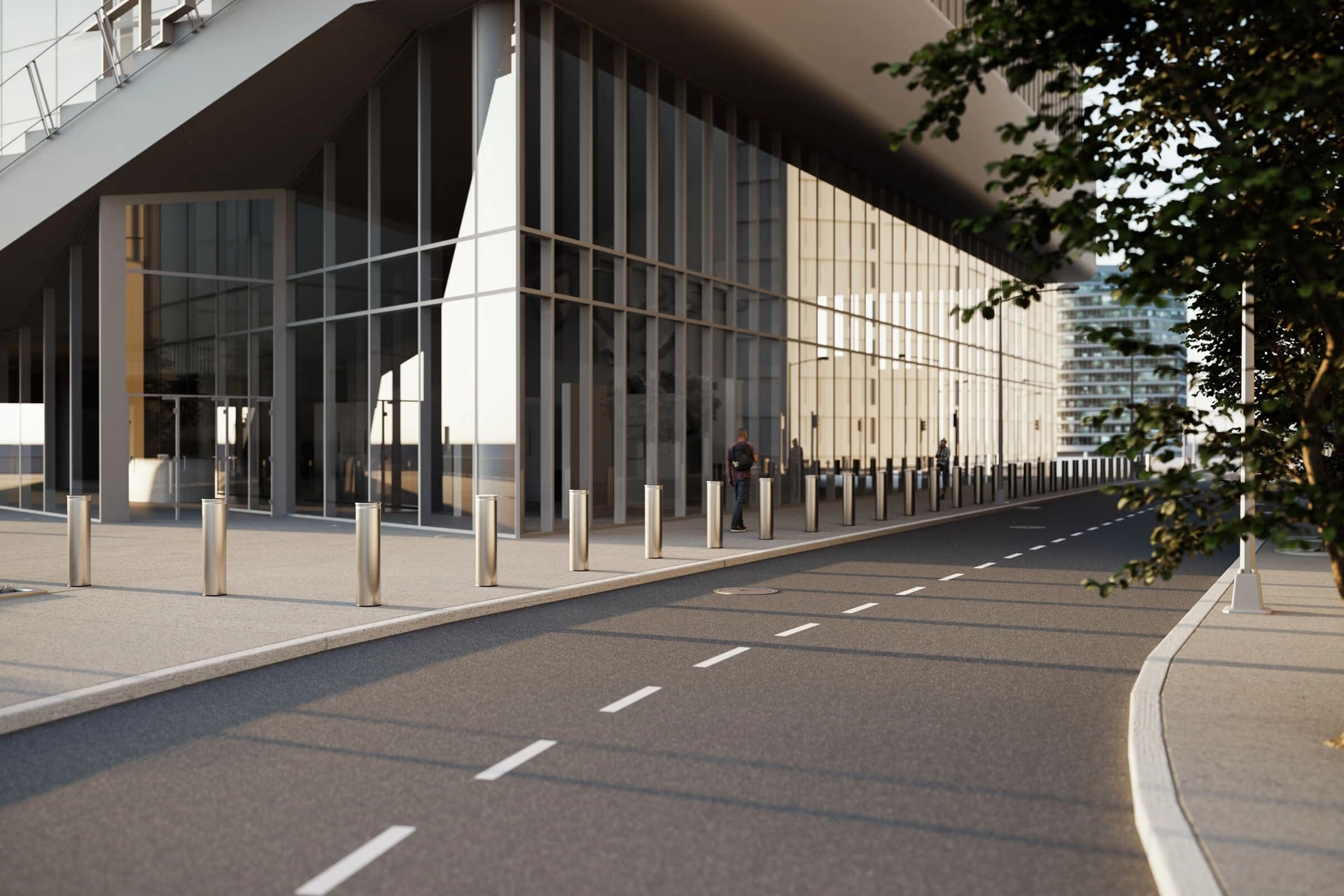

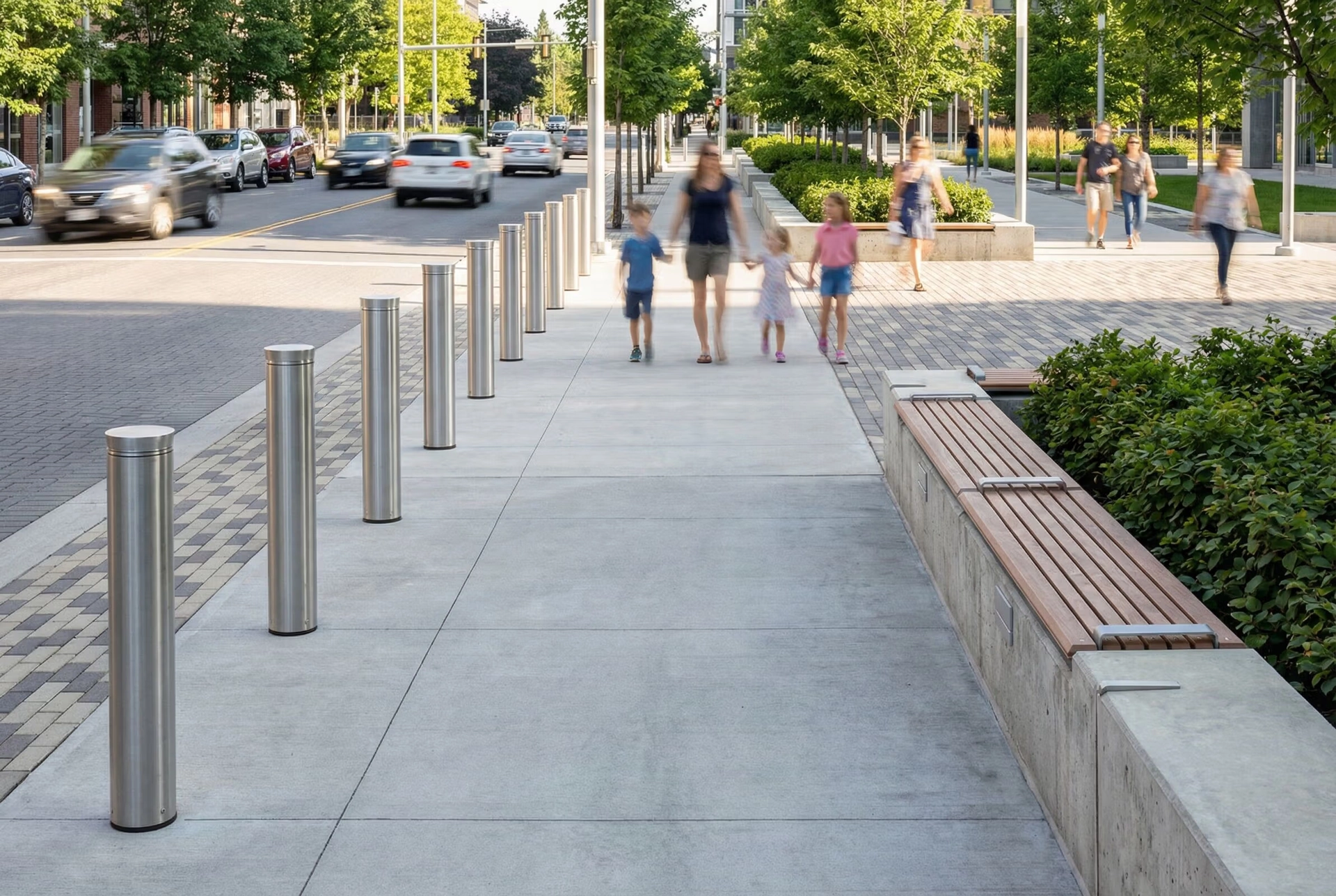

F+S security bollards in elegant stainless steel are designed to protect against vehicle infringement and look good while doing it. Whether used in a streetscape, park, or surrounding a building exterior, Cyrca's sleek aesthetics are an attractive match for today’s security-conscious settings needing ASTM rated protection for low to medium threat environments.
MOUNTING OPTIONS

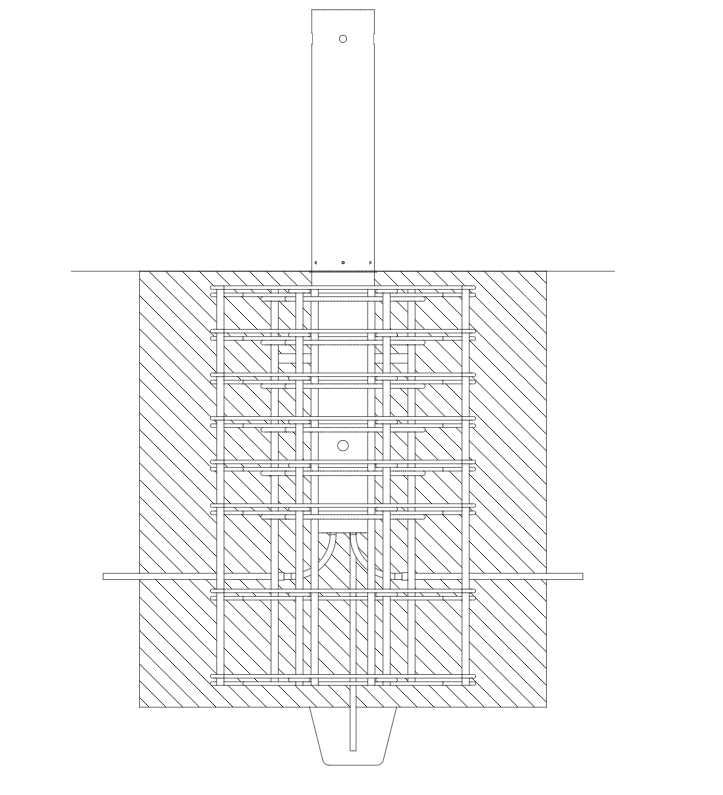

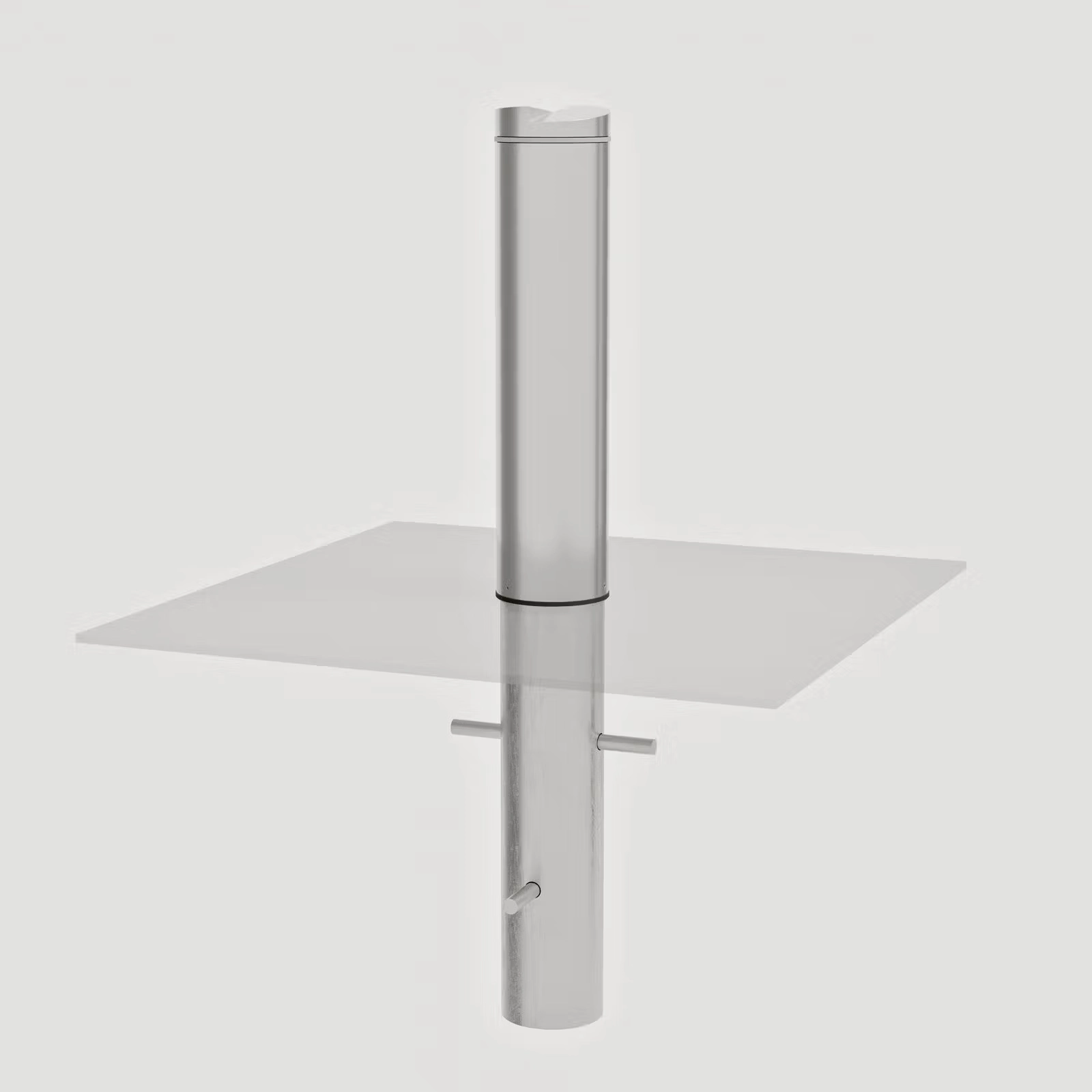

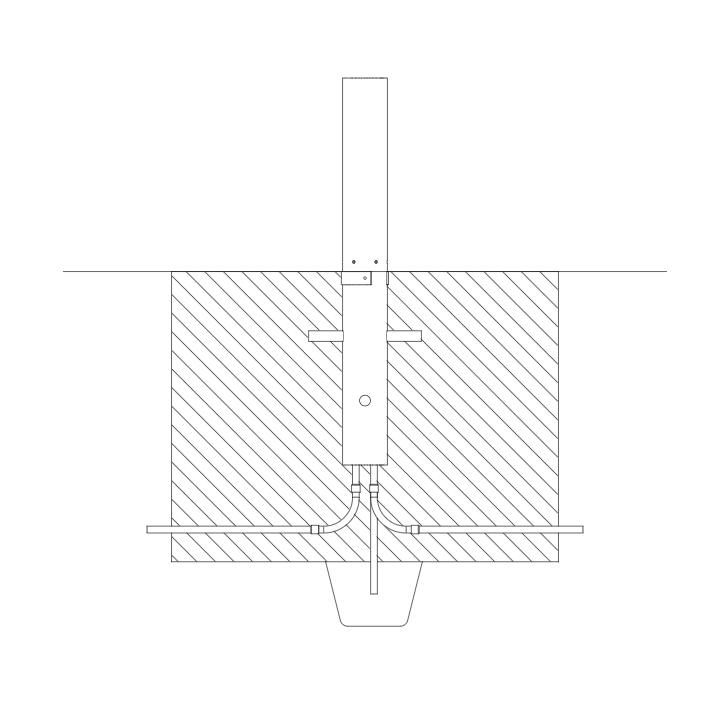

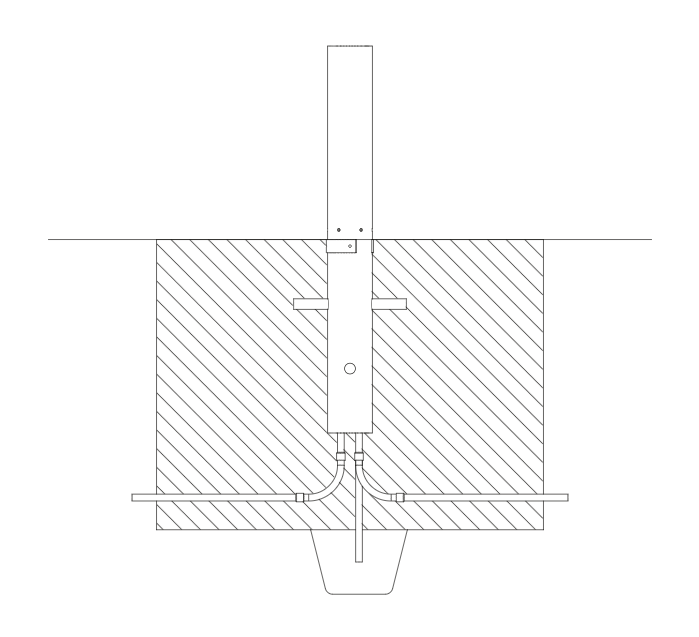

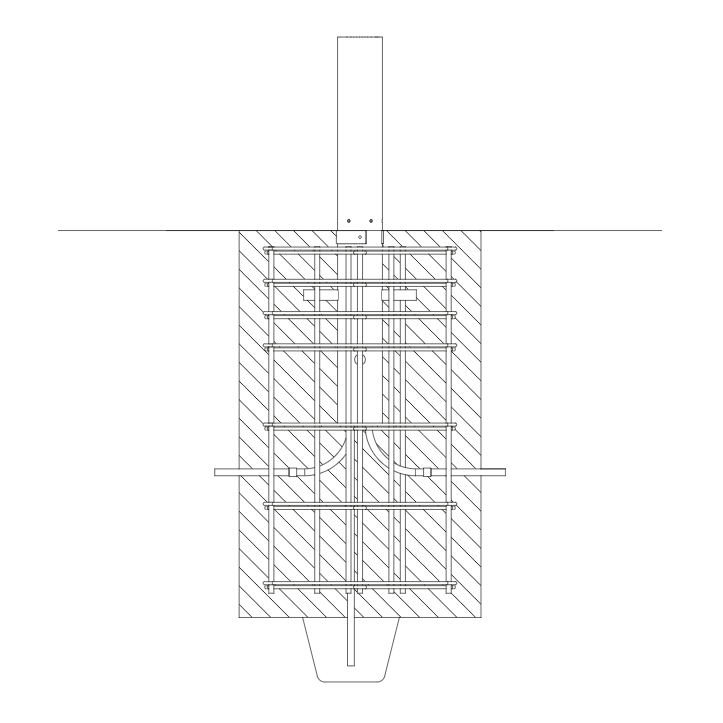

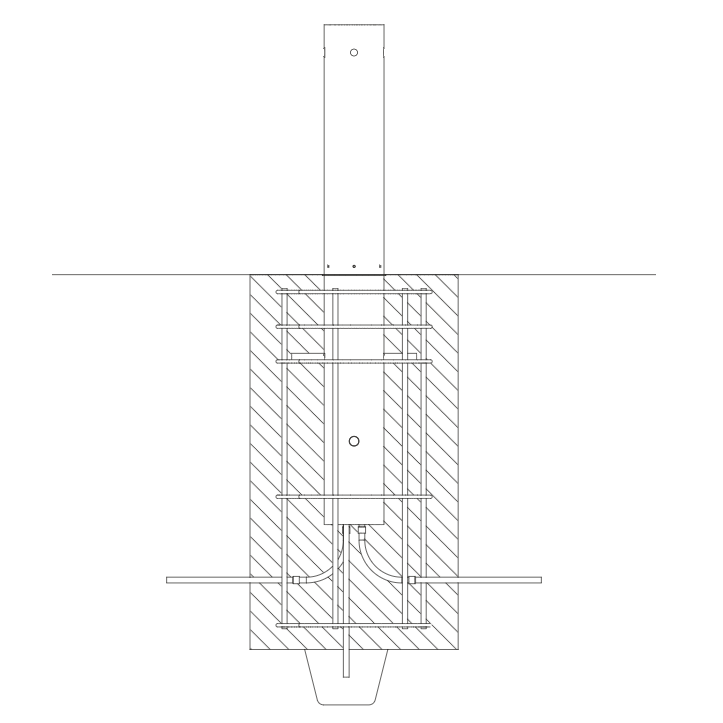

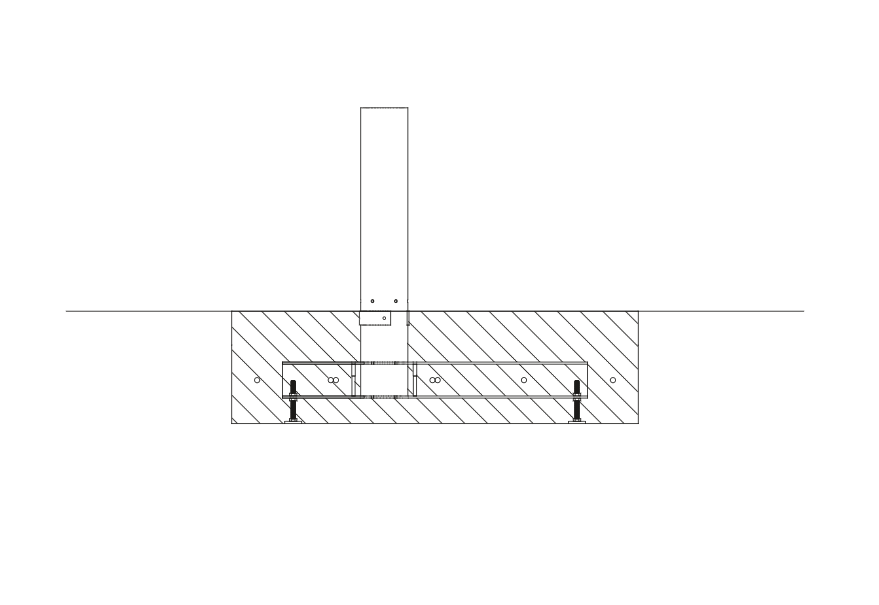

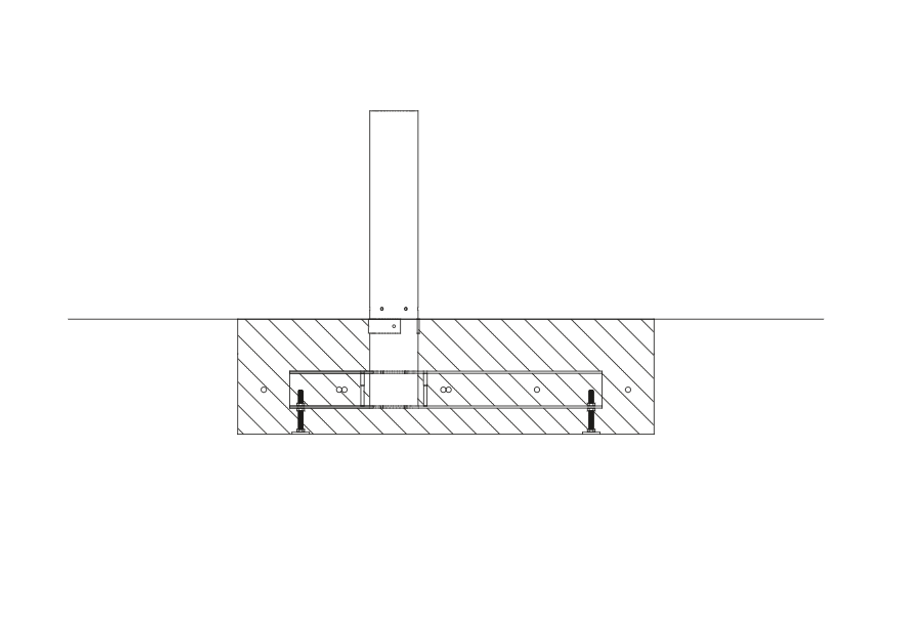

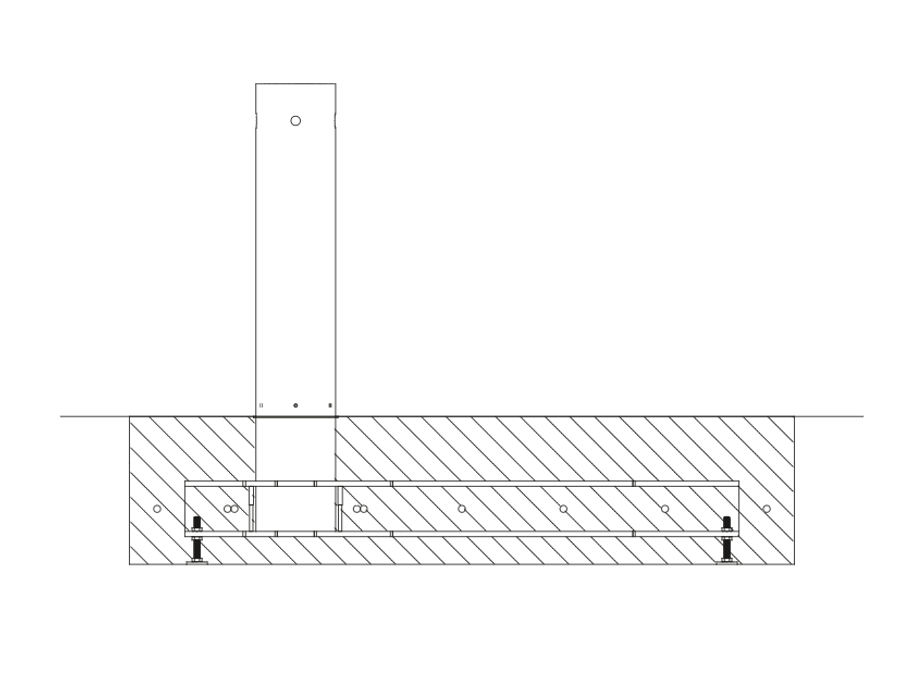

In cases where deep excavation for bollard installation is not feasible, shallow mounted cores offer an ideal solution with significantly less in-depth ground requirements. Standard mounting for security rated bollards is deep set and non-rated bollards are available with standard surface mounting.
MATERIAL
Stainnless Steel
SAFETY
Paths & Walkways
MAINTENANCE
-Please refer to the Hardwood Product Data Sheet for detailed FSC® Hardwoods maintenance. -Clean as needed using a soft cloth or brush with warm water and a mild detergent. Avoid abrasive cleaners.
ENVIRONMENTAL CONSIDERATIONS
- Low maintenance; easy to disassemble.
- Metal components have a long life cycle and are 100% recyclable.
- Please refer to the Eulo Seating & Planters Environmental Data Sheets for detailed environmental impact information.
- Standard powder coat finishes are no-VOC; non-standard powder coat finishes are no- or low-VOC, depending on color.
ELEGANT GUIDANCE

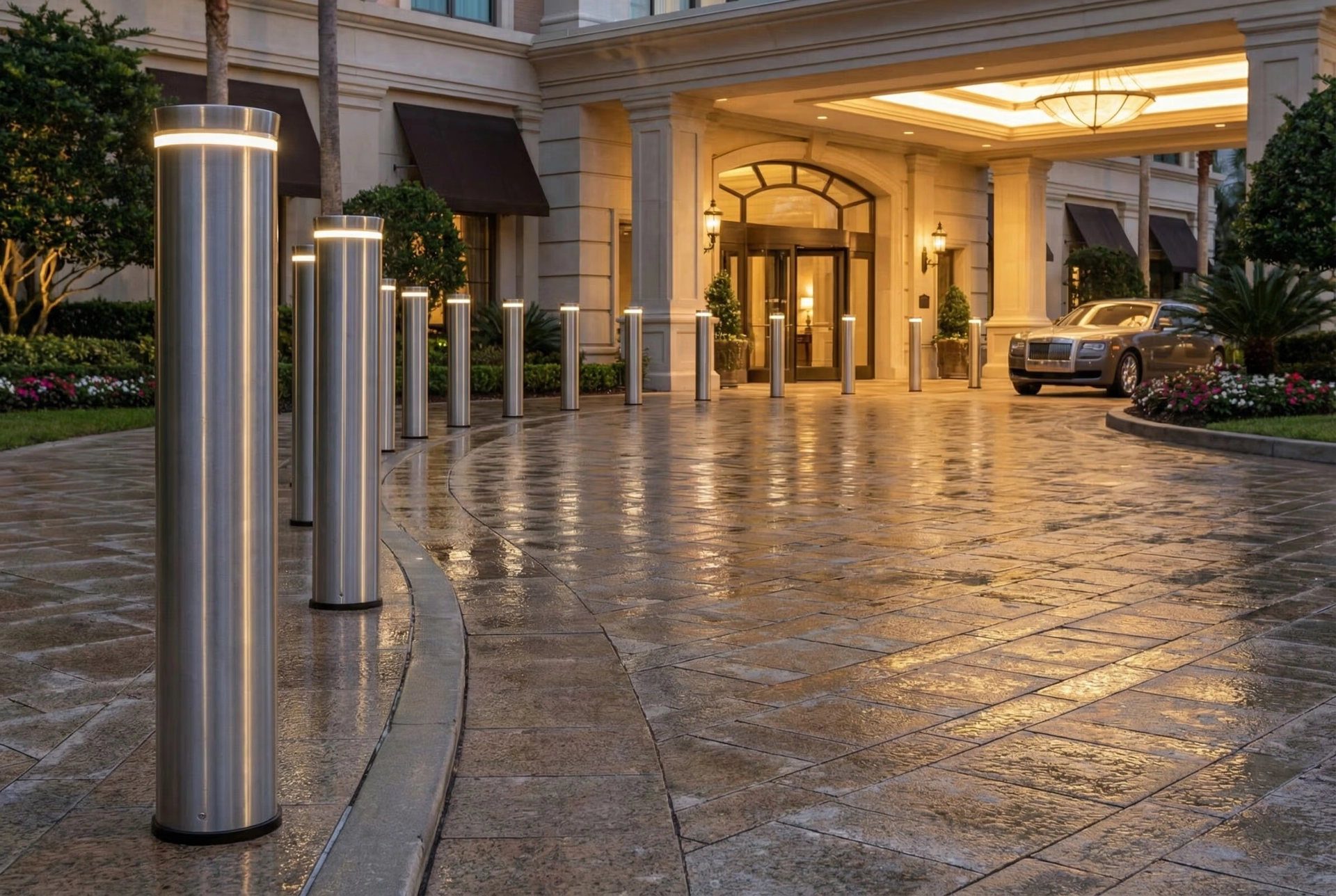

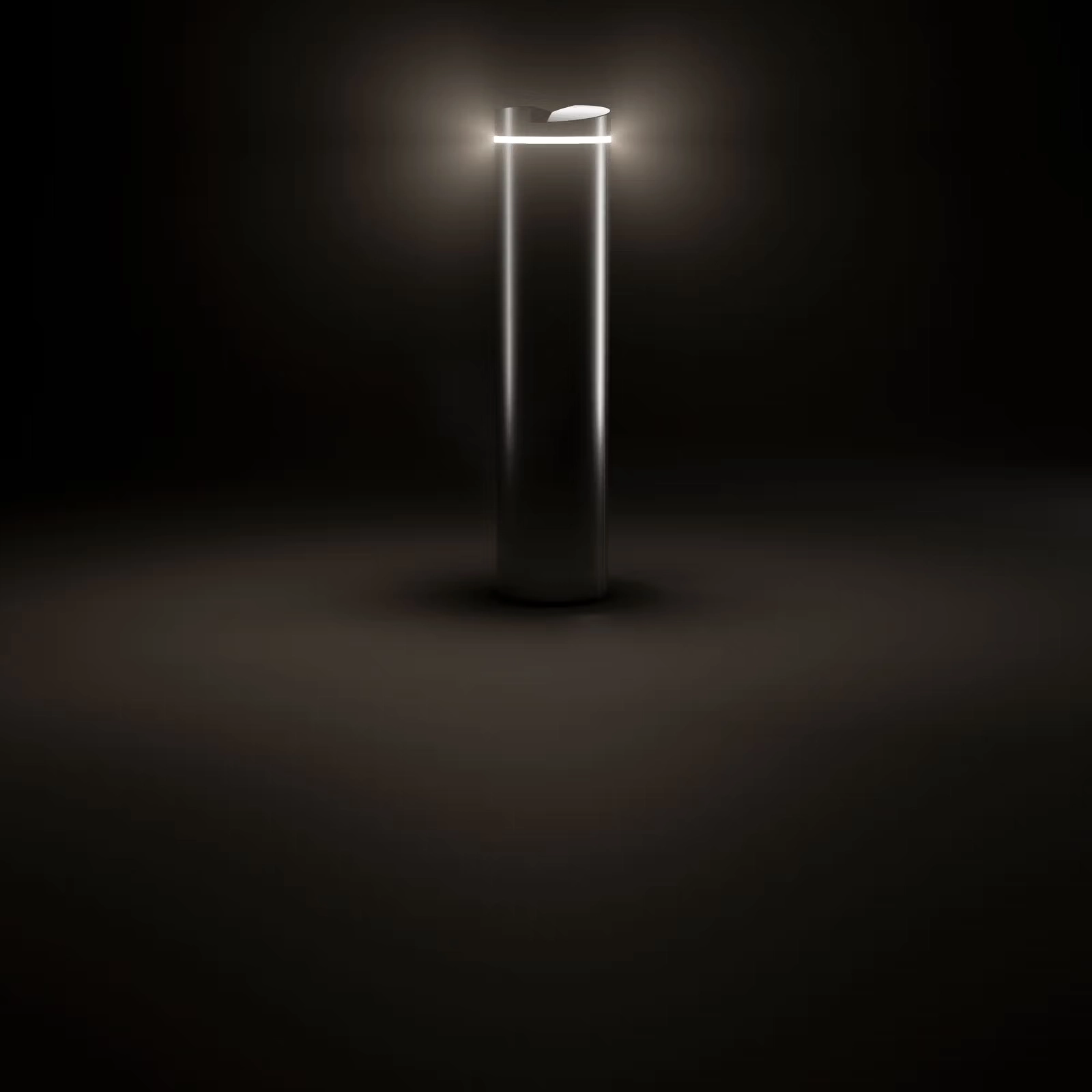

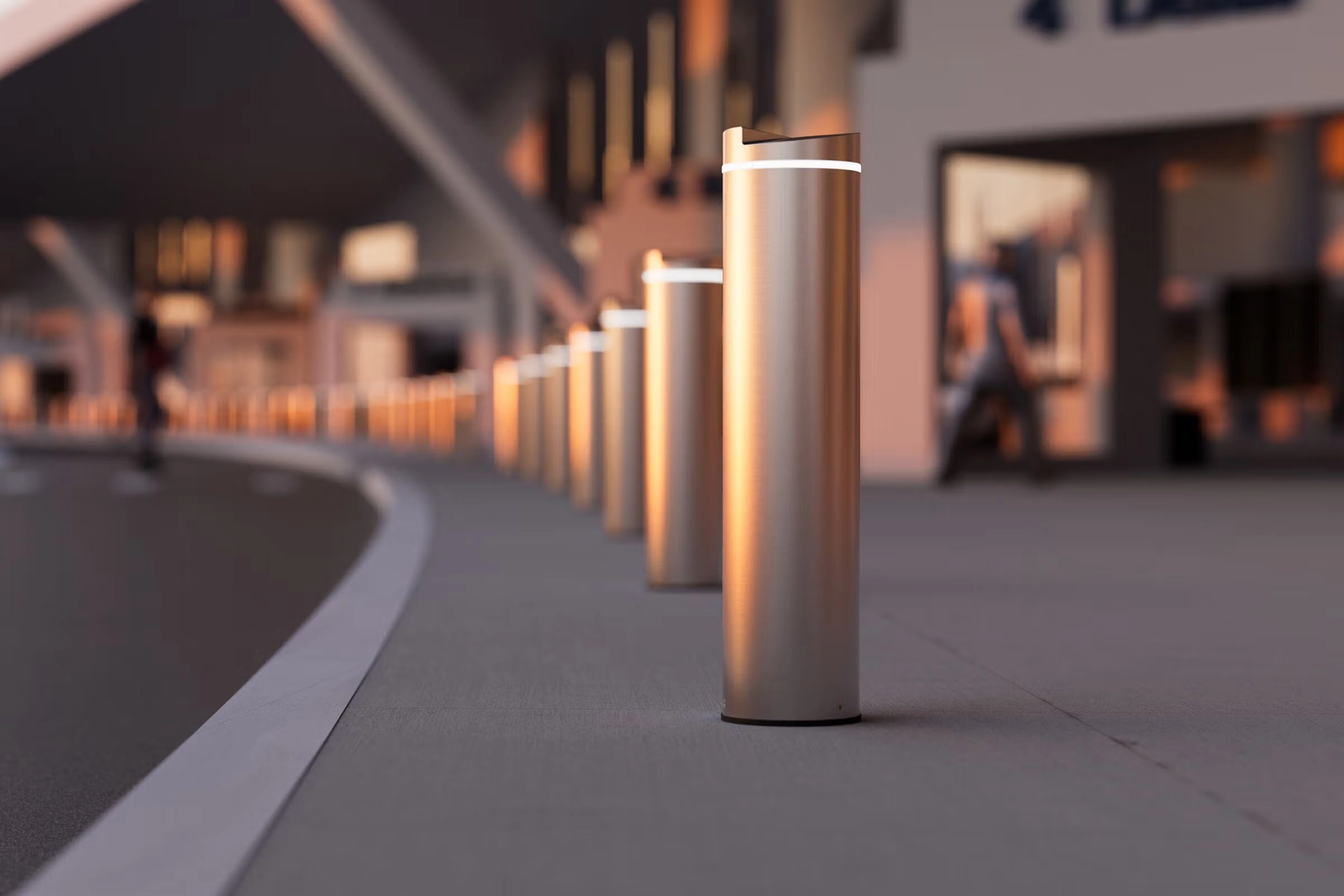

F+S redefines outdoor lighting with illuminated bollards, offering an ideal blend of beauty and safety for paths and walkways. Experience exceptional flexibility and performance in lighting that elevates any outdoor space.
DOWNLOADS
TECHNICAL DRAWINGS
↓ Series 600, Security
↓ Series 900, Security
↓ Series 600, Surface Mount
↓ Series 900, Surface Mount
PRODUCT SUPPORT DOCUMENTS
↓ Product Data Sheet
↓ CSI Specifications
↓ Security-Rated Bollard Guide
↓ Powder Coat Product Data Sheet
↓ Site Product Care & Maintenance
LIGHTING PLOTS & IES FILES
↓ IES Files
↓ Lighting Plots
REVIT/CAD/SKETCHUP
↓ Revit
↓ CAD
↓ SketchUp
TECHNICAL DATA
TECHNICAL DATA
| SECURITY CORE RATINGS | S10-P1 (LOW THREAT - DEEP SET) | SC30-P1 (LOW THREAT - DEEP SET) | SC30-P1 (LOW THREAT - SHALLOW MOUNT) | PU30-P1 (MEDIUM THREAT - DEEP SET) | M30-P1/K4 (MEDIUM THREAT - DEEP SET) | M30-P1/K4 (MEDIUM THREAT - SHALLOW MOUNT) |
|---|---|---|---|---|---|---|
| Minimum Bollard Diameter | 6" | 6" | 6" | 9.25" | 9.25" | 9.25" |
| ASTM Standard | F3016/F3016M-19 | F2656/F2656M-20 | F2656/F2656M-20 | F2656/F2656M-20 | F2656/F2656M-20 | F2656/F2656M-20 |
| Vehicle Impact Rating | S10 | SC30 | SC30 | PU30 | M30 | M30 |
| Vehicle Impact Speed | 10 mph | 30 mph | 30 mph | 30 mph | 30 mph | 30 mph |
| Vehicle Payload Weight | 5.000 lbs | 2.430 lbs | 2.430 lbs | 5.070 lbs | 15.000 lbs | 15.000 lbs |
| Foundation Requirement | 48” x 18” x 36” | 30” x 30” x 48” | 48” x 48” x 13.25” | 30” x 30” x 54” | 56” x 56” x 60” | 60” x 72” x 16” |

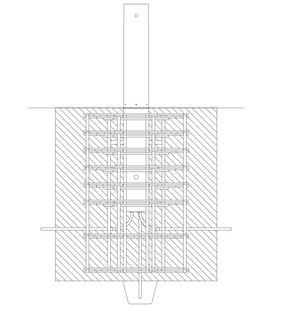

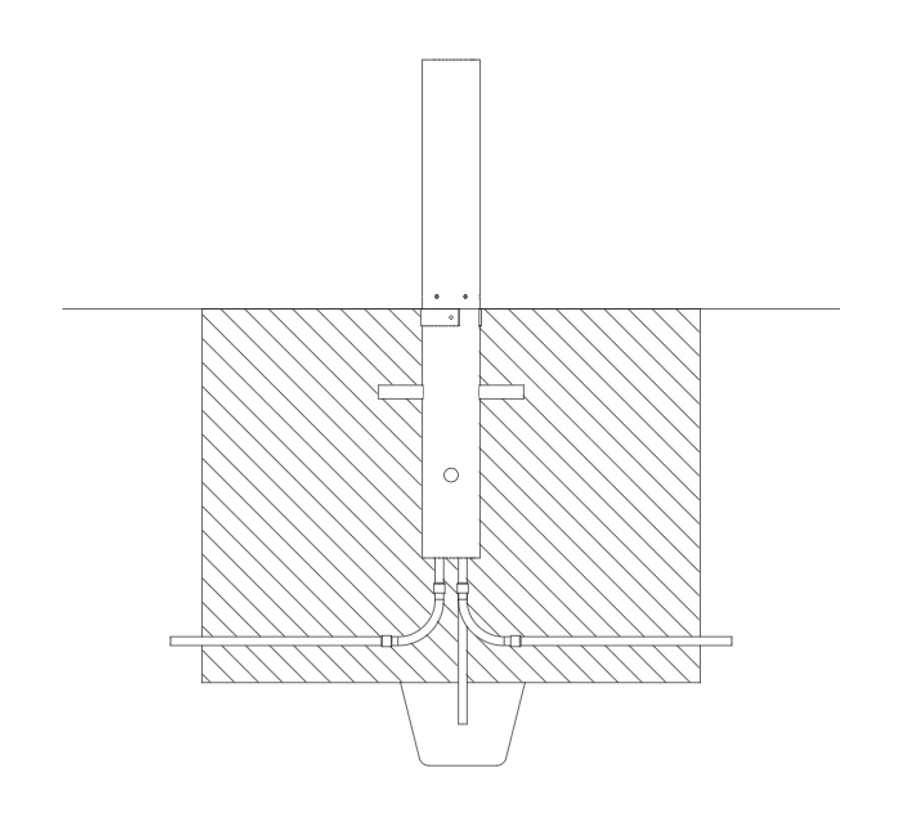

MODELS - TECHNICAL DRAWINGS
