Cerno Lex 19 pendant Lamp
LEX 19 PENDANT LAMP
LEX 19 PENDANT LAMP
Lex in Latin is defined as Law, Principle, or Condition. Simple architectural principles guided the design and construction of the Lex pendant.
INFORMATION
SOCKET
Candelabra E12 Socket (CB)
BRAND
Cerno
PRODUCT TYPE
Pendant Lamp
INPUT VOLTAGE
125 V AC max
DRIVER DIMENSIONS
- Length : 3.3 in
- Width : 1.6 in
- Height : 1.0 in

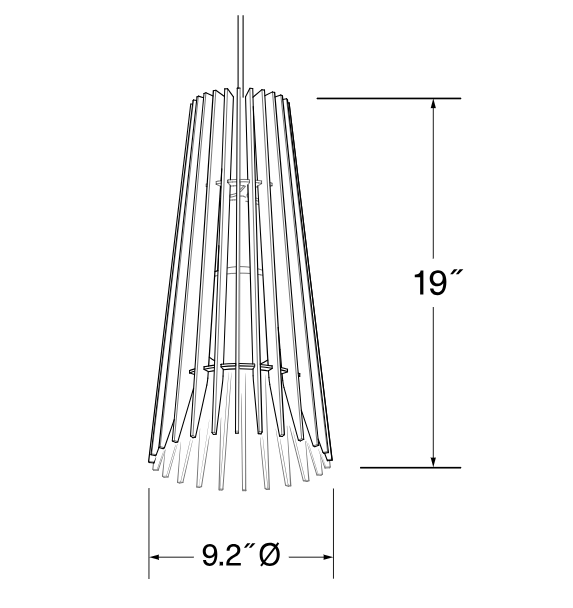

PRODUCT DIMENSIONS
- Height : 19 in
- Width : 9.2 in
PRODUCT WEIGHT
3.5 lb
COLOR ACCURACY
90+ CRI
DROP LENGTH
Drop length field adjustable: 0’-14” min, 8’-0” max
CEILING
Suitable for a sloped ceiling up to 45 degrees
LIGHT COLOR
- 2700 K
- 3000 K
- 3500 K or 4000 K
TAGS
- Bar
- Kitchen
- Restaurant
- Entry Way
- Dining Room & Kitchen Island
LIGHT OUTPUT
915 Lumens (source), based on 2700 K
POWER USAGE
9 W
GRAIN
Wood grain will vary
LAMPING
- E12 candelabra
- 60 W max
CANOPY
Driver to be housed in canopy
FROSTED LAMP
G16.5 frosted lamp recommended
BULB
Bulb not included
PRODUCTION
Made in Sweden
DRIVER (LED VERSION ONLY)
- 120-277 V AC input voltage
- TRIAC& ELV & 0-10 V dimming (P1)

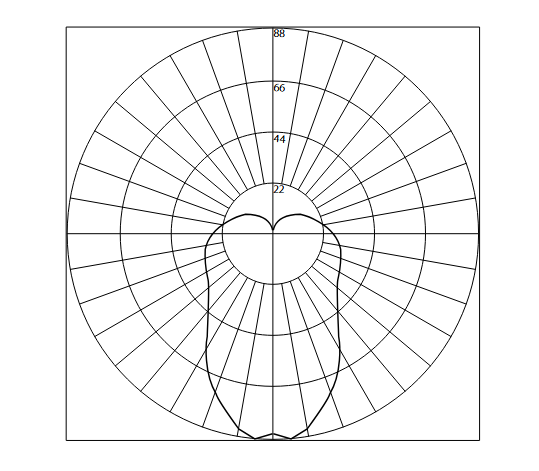

PHOTOMETRIC POLAR GRAPH
- Maximum Candela = 88.27
- Located at Horizontal Angle = 0, Vertical Angle = 5
- Output specifications shown for 2700K CCT and walnut shade with black accents for vertical plane through 0-180 degree horizontal angles. Other CCTs and material finishes may cause output specifications to vary.
FINISHES
