Anova Streetside 7-Bike/5-Loop Bike Rack
STREETSIDE 7-BIKE/5-LOOP BIKE RACK
STREETSIDE 7-BIKE/5-LOOP BIKE RACK
Fusion Advantage Finish, Surface Mount
Space-saving Streetside bike racks feature a simple yet classic loop design that looks great and fits in everywhere - including tight spaces.
INFORMATION
BRAND
Anova
PRODUCT TYPE
Bike Rack
BIKE FRAME AND WHEEL
Allows two points of contact for safe securing of bike frame and wheel
WARRANTY
20-year limited structural warranty with 7-year finish warranty.

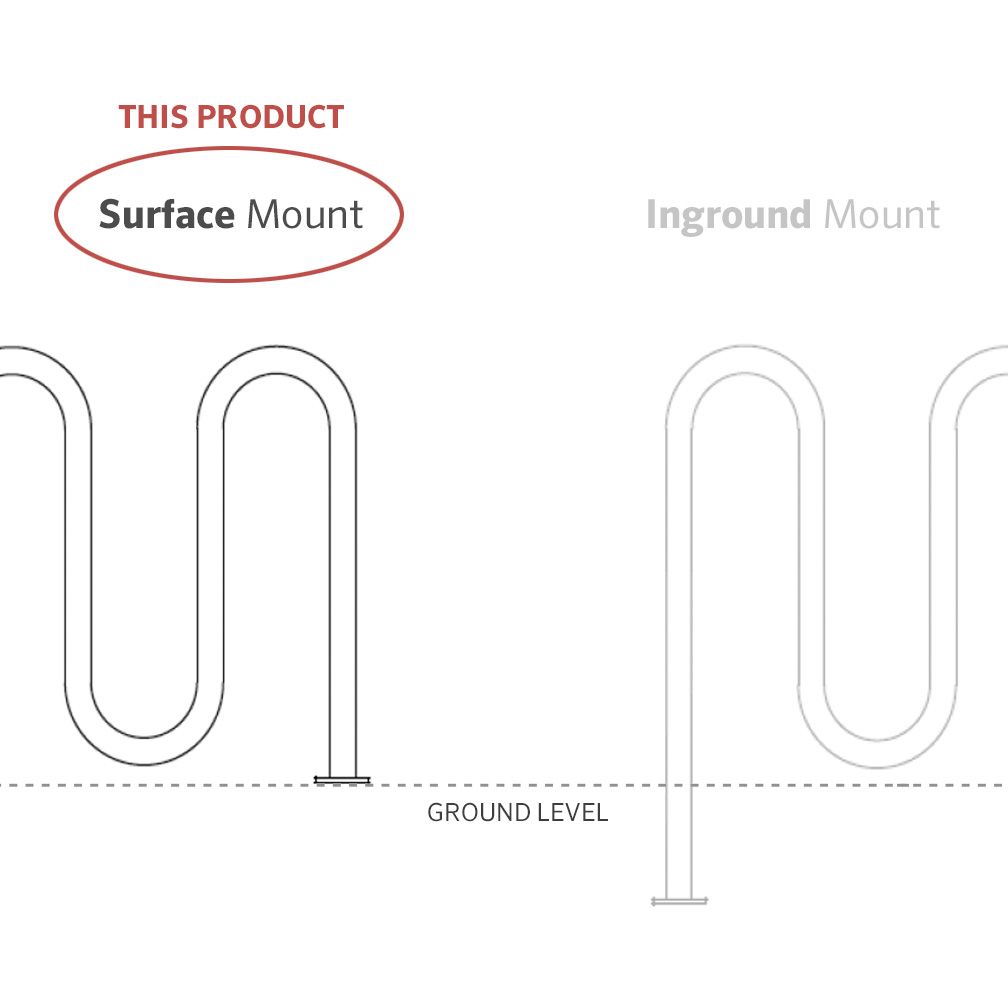

MOUNTING
Pre-drilled holes for easy surface mounting
ITEM CODE
#LBR7PVCSURF
HEAVY-GAUGE STEEL DESIGN
Constructed from heavy-gauge, steel tubing
ENVIRONMENT
Outdoor
ESTIMATED SHIPPING
5 Weeks
MAINTENANCE
The product is virtually maintenance-free and requires only periodic cleaning with a sponge and a solution of mild detergent and water to remove surface dirt. Do not clean with solvent or petroleum base products.
MATERIAL
The bike rack is 63.88” wide and can accommodate seven bicycles. A bicycle can be parked within each of the upper and lower loops plus on the outside of each leg. The rack is made from 2.38” O.D. x 11-gauge wall steel tubing. Each leg features a 5” diameter mounting plate with predrilled holes for easy surface mounting. Mounting hardware is not included.
ASSEMBLY
Bike rack requires no assembly except for the surface mounting.
MANUFACTURED
U.S
ACTUAL WEIGHT
21lbs
UPPER & LOWER LOOP
Bikes can be parked inside each of the upper and lower loops and also on each end.
ADVANTAGE
Steel is protected by the patented Fusion Advantage™ finish that won't rust, fade, peel, chip, crack, mold or mildew
STEEL TUBULAR
5 Loop
MOUNTING PLATE
5” Diameter

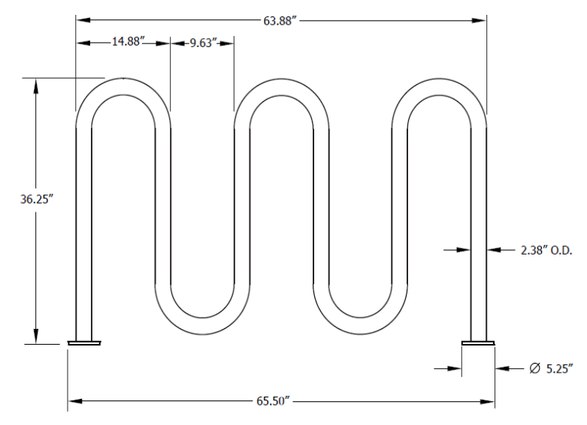

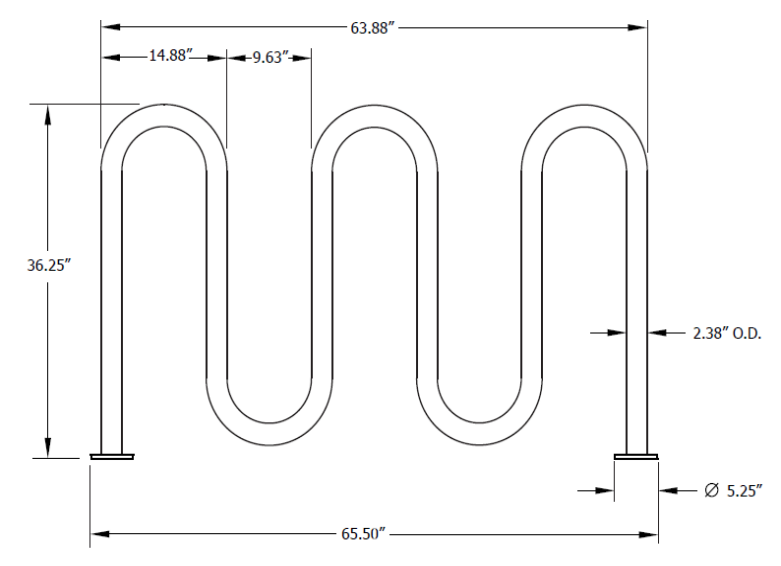

DIMENSIONS
- Overall Width : 65.50"
- Overall Height : 36.25"
- Base Diameter (Ø) : 5.25"
- Top Overall Width : 63.88"
- First Section Width : 14.88"
- Inner Section Width : 9.63"
- Tube Diameter (O.D.) : 2.38"
BIKE CAPACITY
7
AVAILABLE COLORS
22
FINISH
Bike rack is protected by the patented Fusion Advantage™ finish. The plastisol coating has an average thickness of .125” and is encapsulated with a richly tinted, high performance powder coating that won’t rust, fade, peel, chip, crack, mold or mildew. The finish has been tested to the requirements of ASTM E1354 and determined to be in compliance with California Uniform Fire Code 1103.2.1.4.2.
COLORS
BIKE RACK END & INNER COLORS
